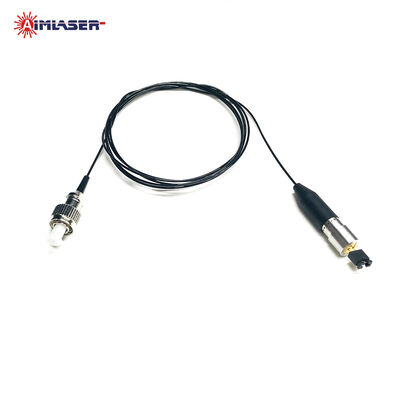

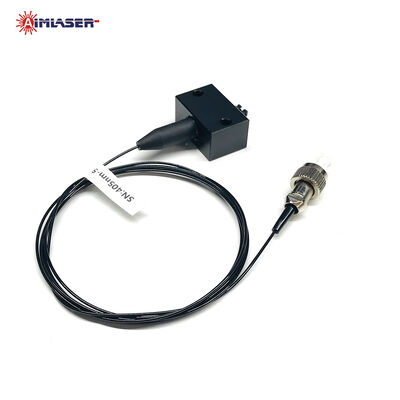

488nm Fiber-Pigtailed Laser Diode Module with Single-Mode or Multimode Fiber Options
Product Details
| Wavelength | 375nm | Connector | FC/PC |
|---|---|---|---|
| Output Power | 100mW | Life Span | 10,000 Hours |
| Product Name | Fiber Coupled Laser Module | Input Voltage | 5V DC |
| Fiber Core Diameter | 105um | ||
| Highlight | 488nm fiber-pigtailed laser diode,single-mode fiber laser module,multimode fiber laser module |
||
Product Description
488nm Fiber Coupled Laser Diode Module
AIMLASER 488nm Fiber-Pigtailed Laser Diode Modules feature a compact coaxial package and flexible fiber coupling options for precision optical applications. Single-mode, polarization-maintaining single-mode, and multimode fibers are available to meet different requirements for optical power, beam delivery, and system integration.
Various configurations are available, including laser driver boards, power adapters, and different modulation and control options. Depending on the model, output power can be adjusted using a control knob or controlled via a computer. Air cooling and TEC cooling options are available for applications requiring enhanced thermal management and output stability.
AIMLASER also provides customized fiber collimators and tailored solutions for different power levels, fiber core diameters, cooling methods, and control requirements.
Key Features
-
488nm blue laser with compact coaxial package
-
Single-mode, polarization-maintaining, and multimode fiber options
-
Maximum coupled power up to 30mW for single-mode fiber and 50mW for multimode fiber
-
Optional driver board and power adapter with TTL, PWM, and analog voltage modulation
-
Adjustable power, computer control, and air or TEC cooling options
-
Customizable fiber specifications, connectors, cooling, and control configurations
Specifications
| ITEMS | SPECIFICATIONS |
| Model Number | Fiber Coupled Laser Diode Module |
| Wavelength | 488nm |
| Output Power | ≤50mW |
| Laser Mode | CW, TTL |
| Power Adjustment | Adjustable Power Knob |
| Operating Current | <200mA |
| Operating Voltage | 5.0V DC |
| CDRH Class | Class IIIb |
| Circuit control | Auto Constant Current(ACC) |
| Circuit Protection | Static, Surge, and Reverse Polarity Protected |
| Working Temperature | -10℃ to 50℃ |
| Storage Temperature | -20℃ to 60℃ |
| Fiber Core Diameter | 105um |
| Cladding Diameter | 125um |
| Fiber Length | 1m |
| Numerical Aperture | 0.22 |
| Connector | FC/PC, FC/APC, SMA905 Optional |
| Life Time | 10,000Hrs |
Applications
-
Fluorescence Excitation
-
Fluorescence Spectroscopy
-
Scientific Research
-
UV Curing
-
Optical Measurement
-
Photochemical Applications
-
Industrial Inspection
-
Laboratory Instrumentation
Trade Terms
1) Payment: T/T, PayPal, Western Union, etc.
2) Shipment:FedEx, DHL, UPS etc.
3) Delivery Time: 5 - 20 days.
4) Shipment Terms: FOB Xi'an China
Why Choose Us
A. Over 20 years laser experience.
B. Large-scaled facility 4,500sq.m2 and over 180 professional staffs.
C. Use original LDs from Arima, Osram, Nicha and so on to guarantee reliability.
D. Producted in our ISO9001:2008 quality system factory.
E. Product conforms to FDA, IEC and GB standard.
F. Strong design and production capabilities, partners of famous brands.
