660nm 10mW 4um Single Mode Fiber Coupled Laser Module With Power Adjustable Knob
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Product Name | Single Mode Fiber Coupled Laser Module | Wavelength | 660nm |
|---|---|---|---|
| Output Power | ≤10.0mW | Laser Mode | CW |
| Input Voltage | 5.0V DC | Connector | FC, PC, ST, SMA905 |
| Fiber Core Diameter | 4um | Life Span | 8,000 Hours |
| Highlight | 660nm Fiber Laser Modules,10mW Fiber Laser Modules |
||
Product Description
660nm 10mW 4um Single Mode Fiber Coupled Laser Module with Power Adjustable Knob
Product Description
AIMLASER offers customized fiber-coupled laser diode modules in both single-mode and multimode configurations. Single-mode fiber core options include 3.5 µm, 4 µm, 6.5 µm, and 9 µm, while multimode fibers range from 50 µm to 200 µm. Available wavelengths cover 375 nm to 1550nm, with output power from 1 mW to 100W. Multiple connectors (FC/PC, FC/APC SMA905) and fiber lengths are supported.
Our fiber-coupled laser modules feature compact size, low power consumption, and application-specific LD drivers. Optional PD feedback improves output stability and long-term reliability. These modules are widely used in medical and biomedical instruments, scientific research, laser illumination, genome and DNA sequencing, and industrial systems.

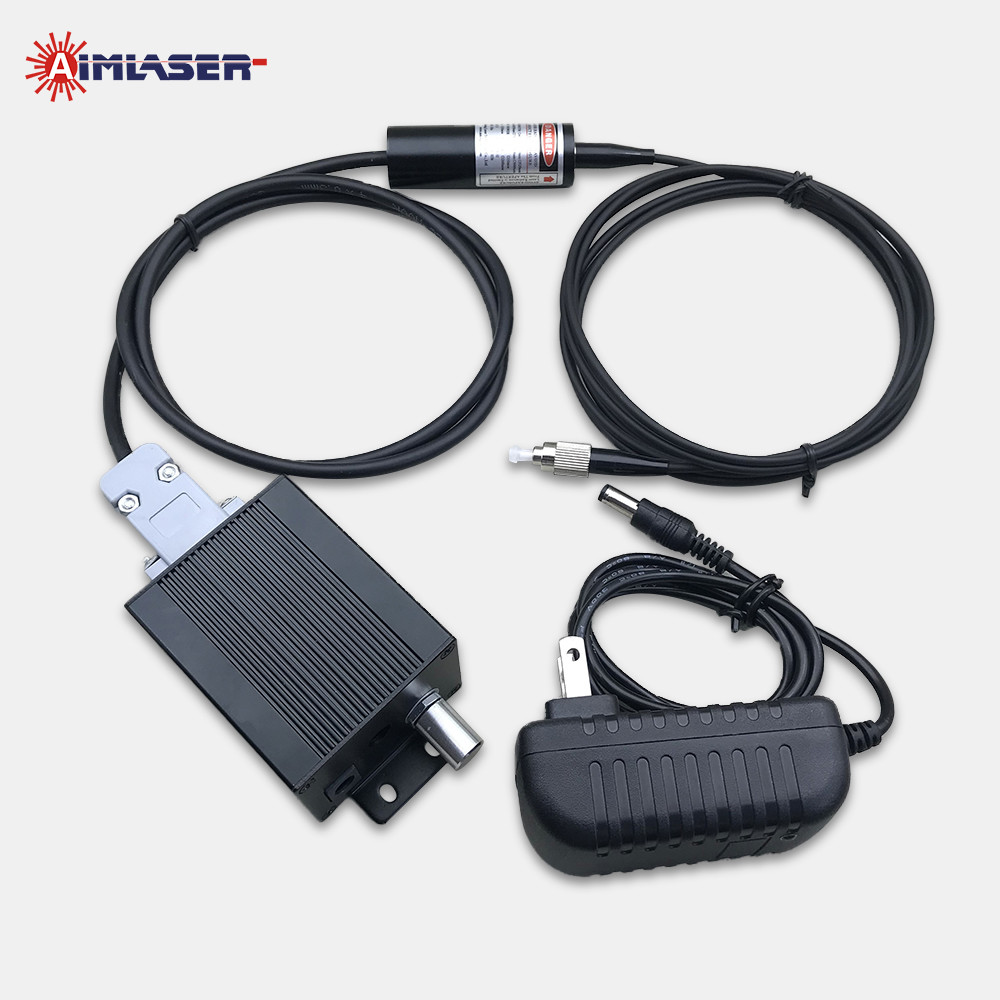

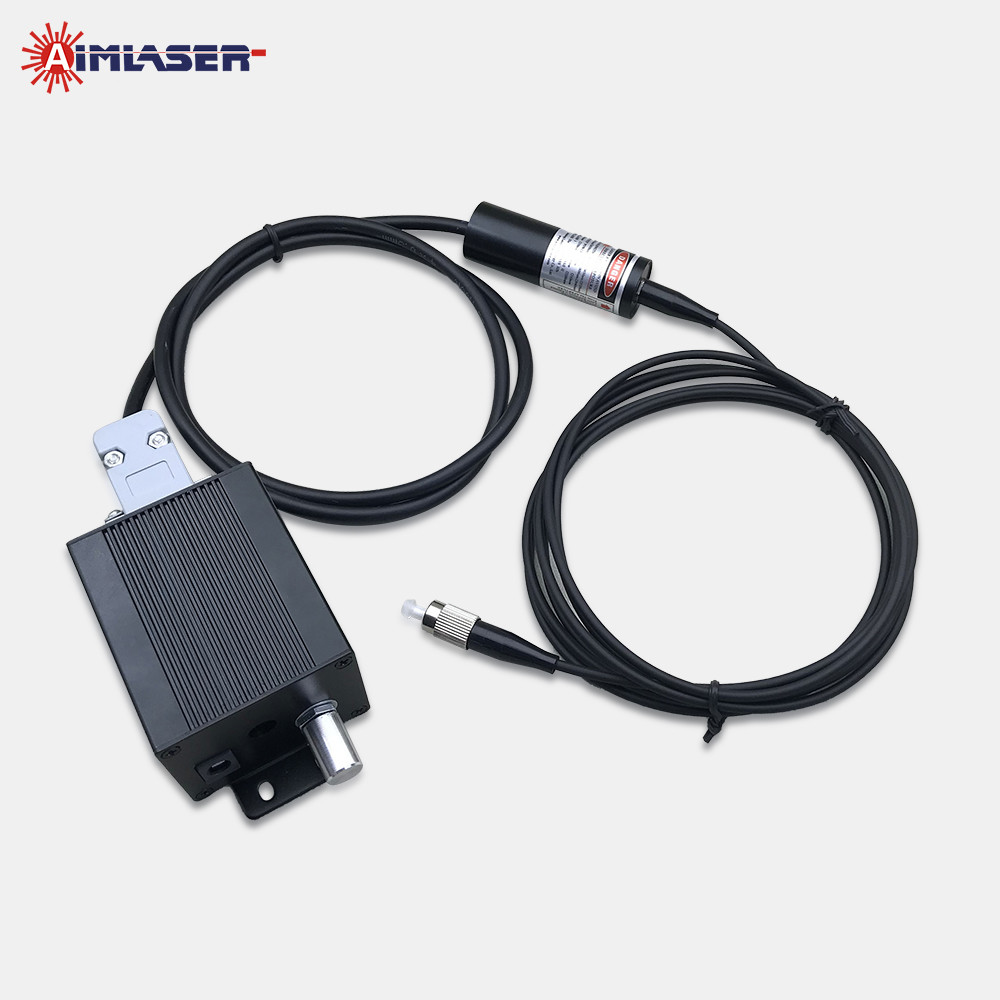

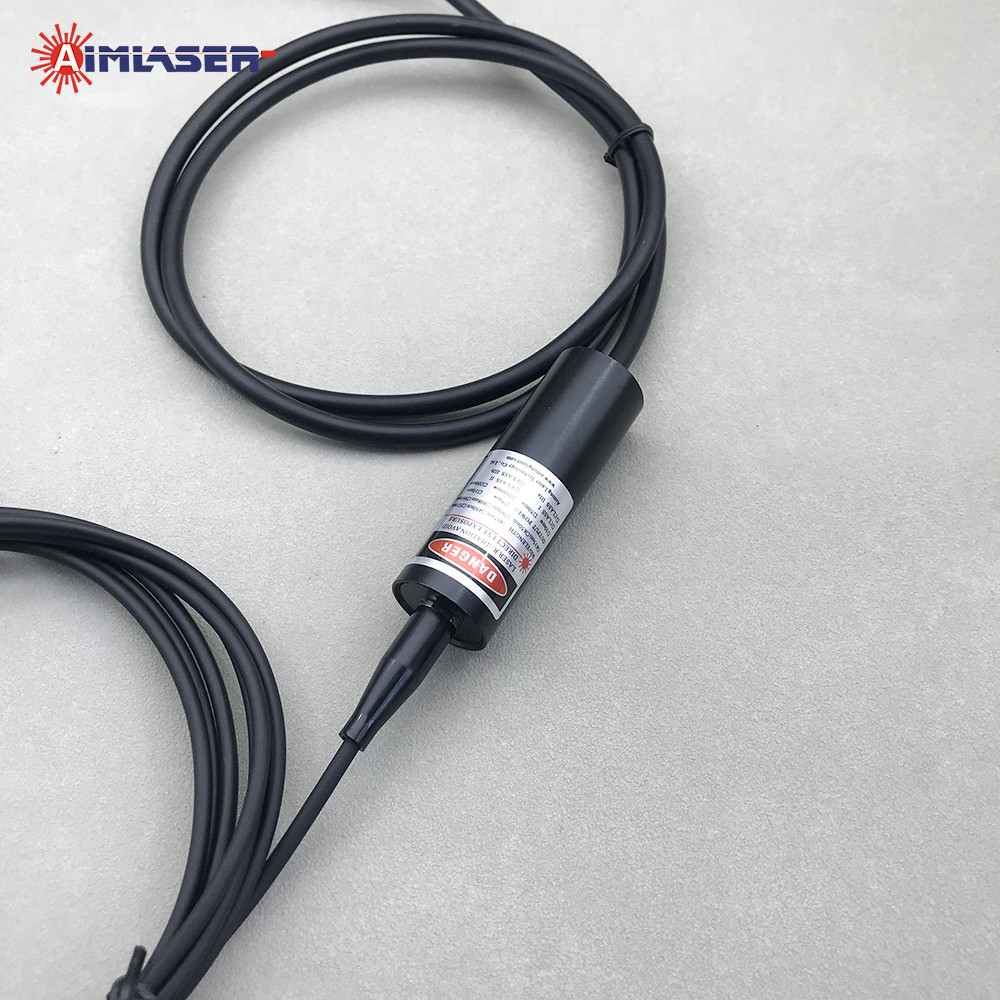

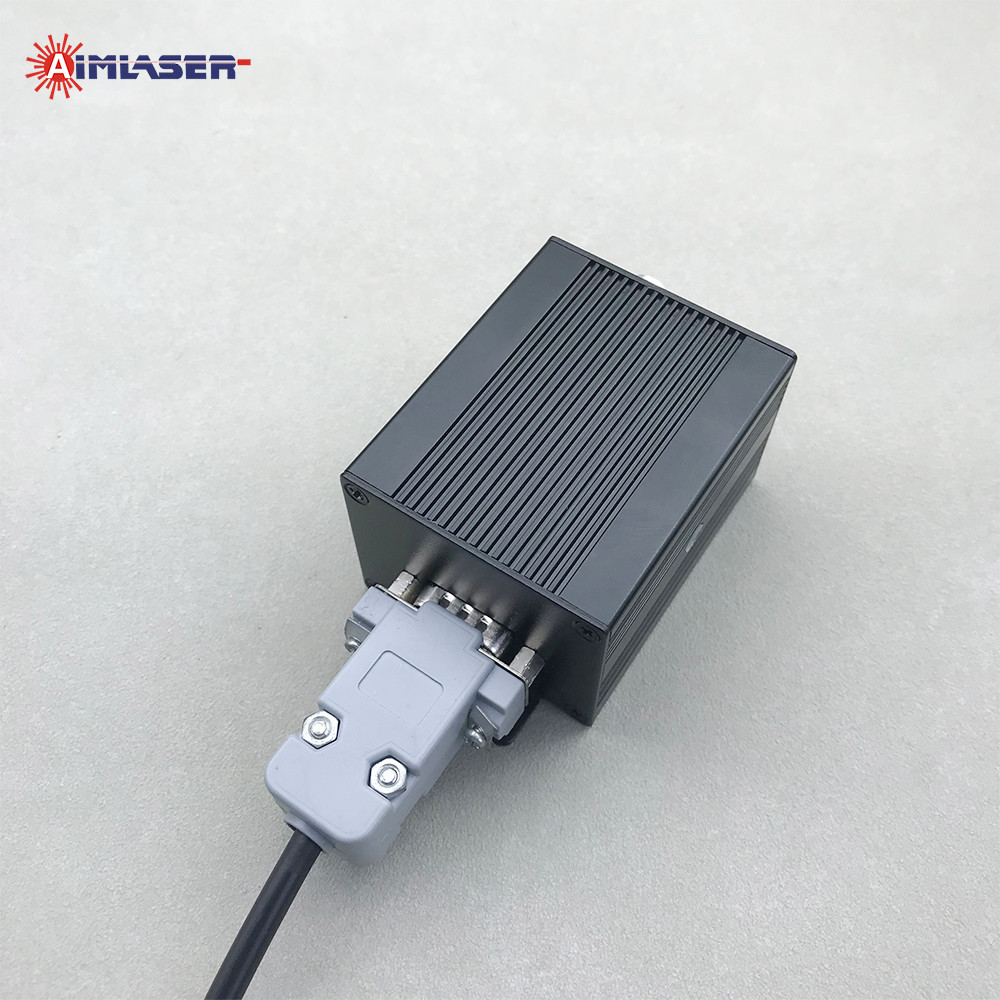

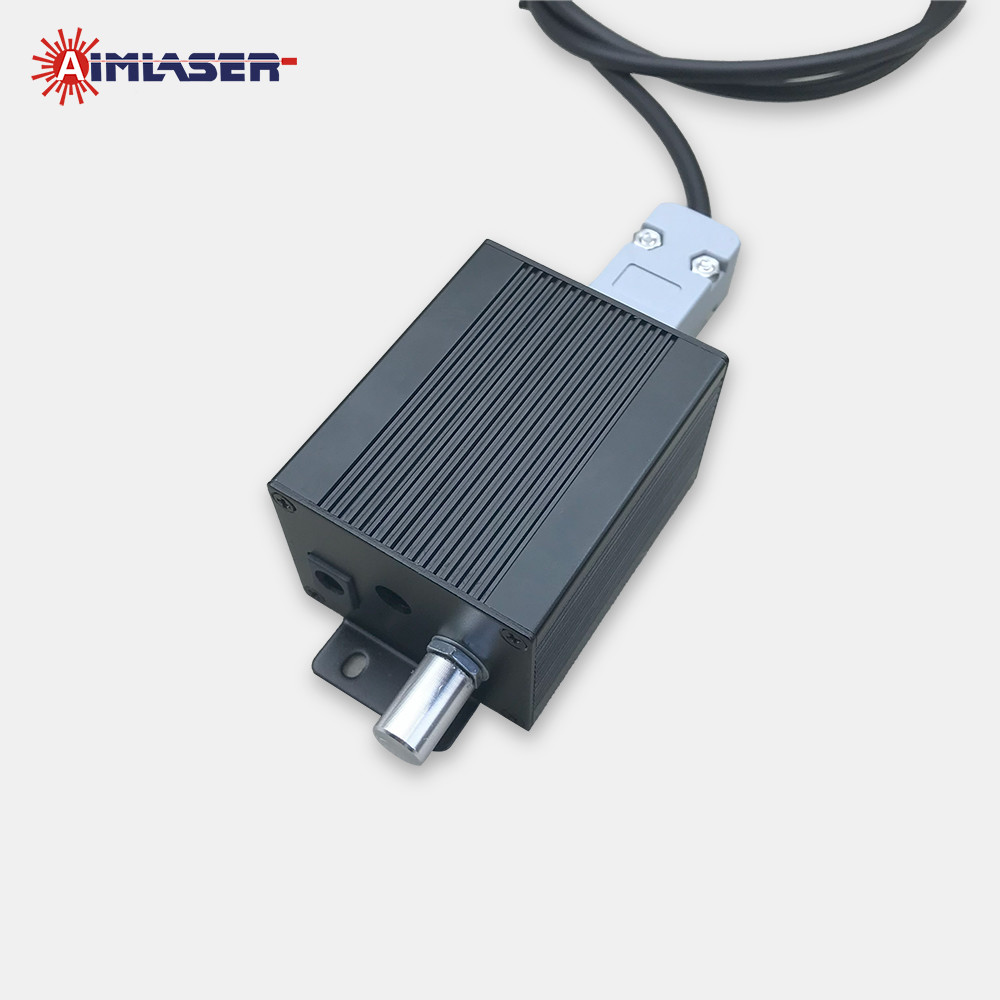

The AM660SF10FC is a 660 nm red single-mode fiber pigtailed laser diode module delivering 10 mW output. It features adjustable output power via a control knob, and an optional power adapter. Customized configurations are available upon request.
Specifications
| ITEMS | SPECIFICATIONS |
| Model Number | Pigtailed Fiber-Coupled Laser Diode Module |
| Wavelength | 660nm |
| Output Power | ≤10mW |
| Power Control | CW with knob adjustment |
| Spectral Width | <2.0nm |
| Wavelength Shift | 0.3nm |
| Operating Current | <120mA |
| Operating Voltage | 5.0V DC |
| Optical Lens | Optical Coating Glass Lens |
| CDRH Class | Class IIIb |
| Circuit control | Auto Constant Current(ACC) |
| Circuit Protection | Static, Surge, and Reverse Polarity Protected |
| Working Temperature | -10℃ to 50℃ |
| Storage Temperature | -20℃ to 60℃ |
| Dimensions | Φ20x60mm (PCB Inside) |
| Fiber Core Diameter | 4um |
| Fiber Length | 2m |
| Numerical Aperture | 0.13 N.A. |

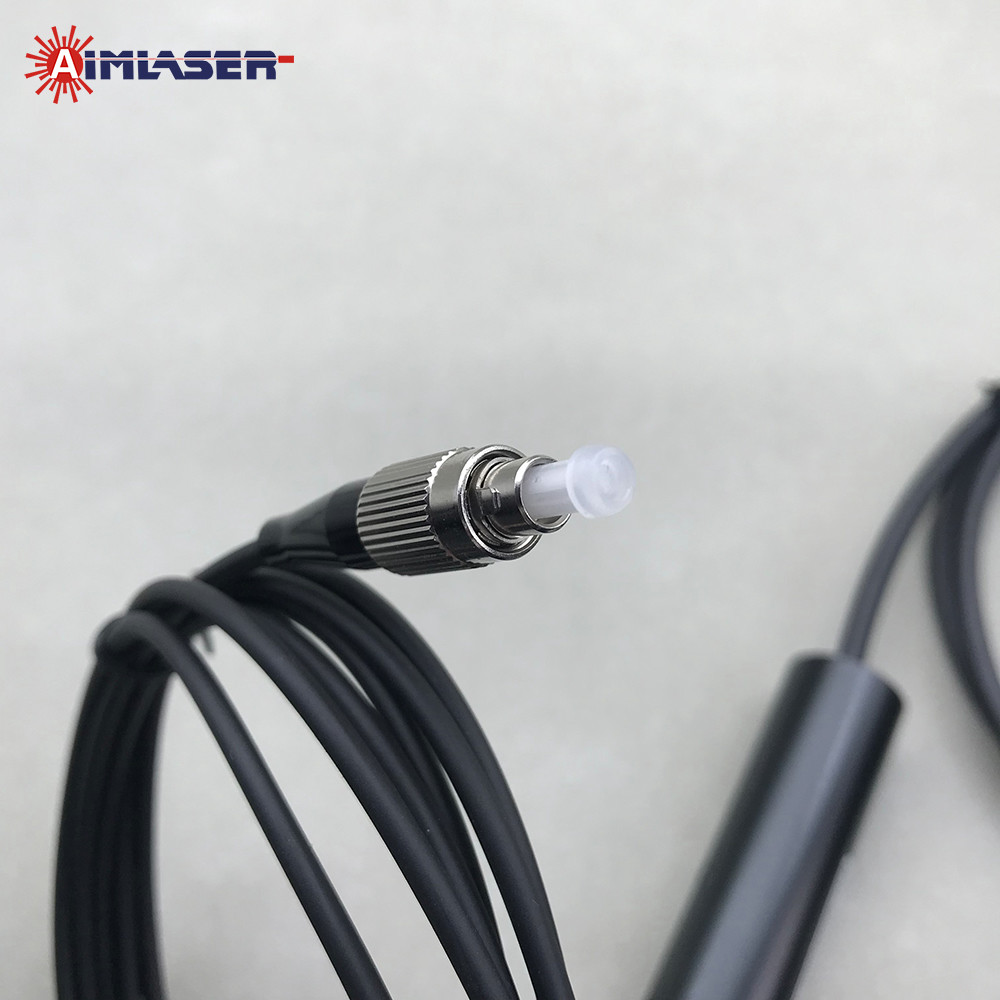

| Connector | FC/PC |
| Life Time | 8,000Hrs |
Features
1. Compact size and low power consumption.
2. High reliability and stability, long lifetime.
3. Using special LD drivers and PD feedback.
4. Using original Laser Diodes from Arima, Osram, Nicha and branded chips.
5. Conform to ROHS, FDA, IEC, SGS standards.
6. Provide a ONE year warranty and customized solutions.
Applications
The 660nm 10mW 4um Red Single Mode Coaxial Pigtailed Fiber Coupled Laser Diode Modules are used in:
● Scientific Research: Ideal for quantum optics, fluorescence excitation, and spectral analysis.
● Biomedical Applications: Used in optical imaging, biosensing, and diagnostic equipment.
● Industry and Manufacturing: Suitable for precision measurement, laser marking, and equipment calibration.
● Display Technology: Applied in laser displays and projection systems.
● Optical Communication: For alignment, testing, and signal transmission in optical systems.
Trade Terms
1) Payment: T/T, PayPal, Western Union, etc.
2) Shipment:FedEx, DHL, UPS etc.
3) Delivery Time: 5 - 20 days.
4) Shipment Terms: FOB Xi'an China
Why Choose Us
A. Over 20 years laser experience.
B. Large-scaled facility 4,500sq.m2 and over 180 professional staffs.
C. Use original LDs from Arima, Osram, Nicha and so on to guarantee reliability.
D. Producted in our ISO9001:2008 quality system factory.
E. Product conforms to FDA, IEC and GB standard.
F. Strong design and production capabilities, partners of famous brands.
