Coaxial Fiber Coupled Laser Diode Module 520nm 30mW 170um Corning Light Diffusing Fiber Laser Source
Contact me for free samples and coupons.
WhatsApp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Product Name | Single Mode Fiber Coupled Laser Module | Wavelength | 520nm |
|---|---|---|---|
| Output Power | ≤30.0mW | Laser Mode | CW & Pulse (TTL Modulation) |
| Input Voltage | 5.0V DC | Connector | FC/PC |
| Fiber Core Diameter | 170um | Life Span | 8,000 Hours |
| Highlight | Coaxial Fiber Coupled Laser Diode Module,Fiber Coupled Laser Diode Module 170um |
||
Product Description

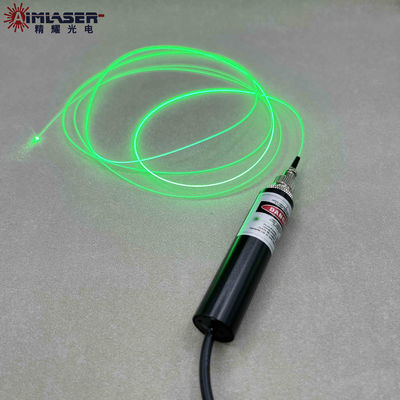

Coaxial Fiber Coupled Laser Diode Module 520nm 30mW 170um Multi-mode Corning Light Diffusing Fiber Laser Source
Product Description
AIMLASER offers custom low-power coaxial pigtailed fiber-coupled laser diode modules. Options include single-mode and multimode fibers with core diameters of 3.5µm, 4µm, 6.5µm, 9µm, 50µm, 62.5µm, 105µm, 125µm, 170µm, and 200µm. Available wavelengths range from 405nm, 450nm, 520nm, 635nm, 650nm, 780nm, 850nm, 980nm, to 1064nm, with output powers from 1mW to 500mW. Connector types include FC, PC, ST, and SMA905, with customizable fiber lengths.
Our fiber-coupled lasers are compact and energy-efficient, utilizing specially designed LD drivers tailored to specific applications. PD feedback can be integrated to enhance the reliability and stability of the lasers. These pigtail fiber laser sources are widely used in medical and biomedical instruments, scientific research, and industrial equipment.

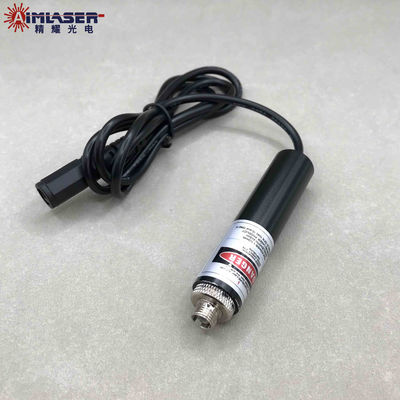

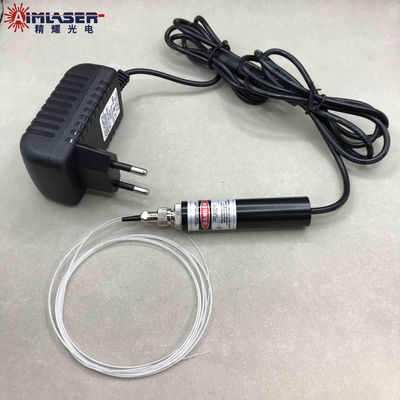

The AM520MF30FC is a pigtailed fiber-coupled laser diode module with an FC/PC optical output. It emits 520nm green laser light with a maximum power of 30mW. The laser is efficiently coupled into the fiber, providing precise, efficient, and flexible beam delivery.
Specifications
| ITEMS | SPECIFICATIONS |
| Model Number | Multimode Pigtailed Fiber Coupled Laser Diode Module |
| Wavelength | 520nm |
| Output Power | 30mW |
| Laser Mode | CW & Pulse (TTL Modulation, Analog Modulation, Digital Modulation) |
| Spectral Width | <2.0nm |
| Wavelength Shift | 0.2nm |
| Operating Current | <100mA |
| Operating Voltage | 5.0V DC |
| Optical Lens | Optical Coating Glass Lens |
| CDRH Class | Class IIIb |
| Power Modulation | Analogu Input |
| Modulation Frequency | TTL<100Hz |
| Circuit control | Auto Constant Current(ACC) |
| Circuit Protection | Static, Surge, and Reverse Polarity Protected |
| Working Temperature | -10℃ to 50℃ |
| Storage Temperature | -40℃ to 80℃ |
| Dimensions | Φ16x70mm (ACC Inside) |
| Fiber Core Diameter | 170um multi-mode fiber |
| Fiber Length | 1m |
| Numerical Aperture | 0.37 N.A. |
| Connector | FC/PC |
| Case Material | Black Anodized Aluminum |
| Life Time | 8,000Hrs |
Features
1. Compact size, low power consumptio,n and long lifetime.
2. Pluggable design, easy to use.
3. High output stability, wide operating temperature.
4. High efficiency, coupling efficiency ≥ 70%
5. Specially designed LD drivers and PD feedback.
6. Using original Laser Diodes from Arima, Osram, Nichia and branded chips.
7. Conform to ROHS, FDA, IEC, and SGS standards.
8. Provide a one-year warranty and customized solutions.
Applications
The 520nm 30mW 170um Green Multimode Coaxial Pigtailed Fiber Coupled Laser Diode Modules are used in:
● Industrial and Scientific Applications: For material processing, measurement, and high-precision optical systems.
● Biomedical Devices: In fluorescence excitation, laser therapy, and other medical procedures requiring green wavelengths.
● Optical Communication Systems: As light sources in fiber optic technologies.
● Research and Development: For experiments in photonics, spectroscopy, and optical system design.
● Alignment and Calibration: For precision alignment and optical system calibration tasks.
● Laser Projection and Display: In laser projection systems and other display technologies.
● Other Applications: CTP laser printing, OEM instrumentation, laser test and inspection equipment.
Trade Terms
1) Payment: T/T, PayPal, Western Union, etc.
2) Shipment:FedEx, DHL, UPS etc.
3) Delivery Time: 5 - 20 days.
4) Shipment Terms: FOB Xi'an China
Why Choose Us
A. Over 20 years laser experience.
B. Large-scaled facility 4,500sq.m2 and over 180 professional staffs.
C. Use original LDs from Arima, Osram, Nicha and so on to guarantee reliability.
D. Produced in our ISO9001:2008 quality system factory.
E. Product conforms to FDA, IEC and GB standard.
F. Strong design and production capabilities, partners of famous brands.
G. All products undergo internal testing before shipping to ensure quality.
