Fiber Ceramic Ferrules φ1.25mm 200μm Core Diameter Insert Optic Pin for Neuroscience and Optogenetics Research
Contact me for free samples and coupons.
WhatsApp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Product Name | Fiber Ceramic Ferrules | Fiber Core Diameter | 100μm, 200μm, 300μm, 400μm |
|---|---|---|---|
| NA | 0.22, 0.37, 0.5 | Ferrule Outer Diameters | 1.5mm, 2.5mm |
| Fiber Length | 1-20mm(Ø1.25mm), 1-20mm(Ø2.5mm) (Custom) | Light Transmittance | ≥85% |
| Highlight | φ1.25mm Fiber Ceramic Ferrules,200μm Fiber Ceramic Ferrules,Neuroscience Fiber Ceramic Ferrules |
||
Product Description

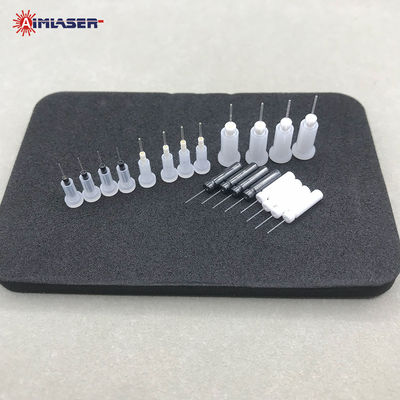

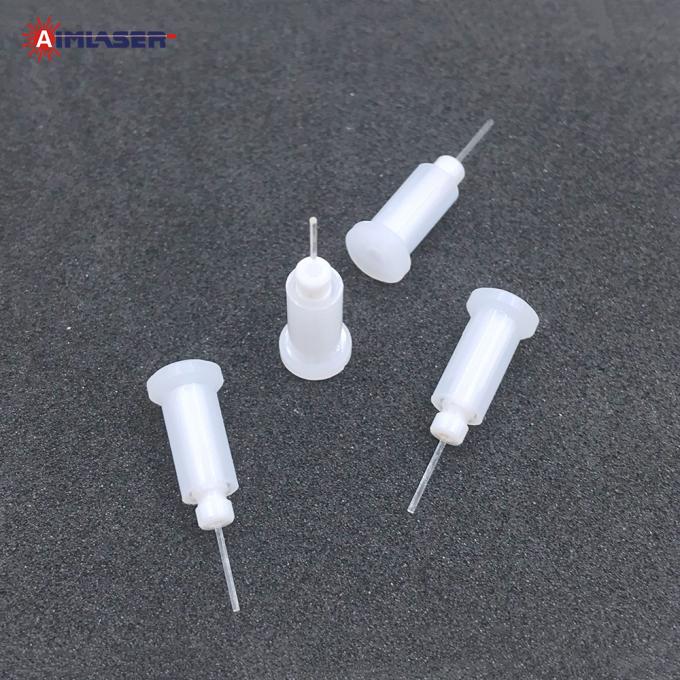

Fiber Ceramic Ferrules φ1.25mm 200μm Core Diameter Insert Optic Pin for Neuroscience and Optogenetics Research
Product Description
AIMLASER provides ceramic ferrule fiber optic assemblies primarily used in cutting-edge applications such as neuroscience, optogenetics, and neural stimulation, as well as in fiber optic communication systems.
Constructed with high-transmission dual-clad quartz fiber and premium ceramic materials, these assemblies minimize light leakage and back reflection while ensuring efficient light delivery. The optic ferrule pin is coated with a biocompatible nanolayer to reduce immune response and inflammation, making it suitable for long-term implantation. A unique grooved design allows for secure fixation in animal experiments, and optional angled tips (30°, 45°, 60°) accommodate various optical stimulation needs.
Our fiber ceramic ferrule probes are available with core diameters of 100μm, 200μm, 300μm, or 400μm, and ferrule outer diameters of 1.25mm or 2.5mm, the product comes in both white and black ceramic tip options. Fiber length is custom-tailored with high precision, and the polished endface provides excellent beam focusing—making the insert needle an ideal tool for precise neural pathway stimulation and signal acquisition
Specifications
| ITEMS | SPECIFICATIONS |
| Product Name | Fiber Ceramic Ferrules Probes |
| Fiber Core Diameter | 100μm, 200μm, 300μm, 400μm |
| NA | 0.22, 0.37, 0.5 |
| Ferrule Outer Diameters | Ø1.5mm(L6.4mm), Ø2.5mm(L10.5mm) |
| Fiber Length | 1-20mm (Custom) |
| Luminousness | ≥85% |
| Color | White, Black |
Features
● Dual-clad quartz fiber for low loss and high optical clarity
● Biocompatible nanocoating reduces immune response and inflammation
● Customizable core diameters, ferrule sizes, angles, and fiber lengths
● Precision-polished endface for excellent beam focus
● Grooved ceramic ferrule for easy and stable fixation
● Low autofluorescence for sensitive optical and neural measurements
Applications
The Fiber Ceramic Ferrules are used in:
● Targeted neural stimulation in optogenetics;
● Signal transmission and collection in neuroscience research;
● Optical control in behavioral studies with animal models;
● Development and validation of implantable neural interfaces;
● Precision light delivery and fiber-guided positioning.
Trade Terms
1) Payment: T/T, PayPal, Western Union, etc.
2) Shipment: FedEx, DHL, UPS etc.
3) Delivery Time: 5 - 20 days.
4) Shipment Terms: FOB Xi'an China
Why Choose Us
A. Over 20 years of laser experience.
B. Large-scaled facility 4,500sq.m2 and over 180 professional staff.
C. Use original LDs from Arima, Osram, Nicha and so on to guarantee reliability.
D. Strictly following ISO9001:2008 quality system.
E. Product conforms to FDA, IEC and GB standards.
F. Strong design and production capabilities, partners of famous brands.
