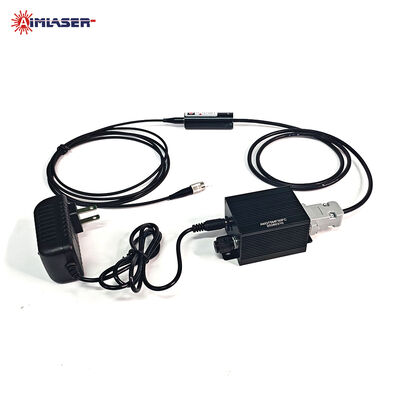

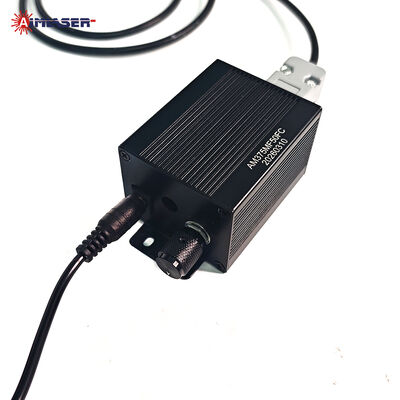

375nm 100mW Multimode Fiber-Pigtailed Laser Diode Module with 105µm Fiber Core, TTL Modulation and Adjustable Power Knob
Product Details
| Product Name | Fiber Coupled Laser Module | Wavelength | 375nm |
|---|---|---|---|
| Output Power | 100mW | Input Voltage | 5V DC |
| Connector | FC/PC | Fiber Core Diameter | 105um |
| Life Span | 10,000 Hours | ||
| Highlight | 375nm fiber-pigtailed laser diode,100mW multimode laser module,TTL modulation adjustable power laser |
||
Product Description
AM375MF100FC
The AIMLASER 375nm 100mW Multimode Fiber-Pigtailed Laser Diode Module is designed for applications requiring a compact and reliable UV laser source. It features a 105µm multimode fiber, TTL modulation, and a power adjustment knob for convenient control of laser output.
Supplied with a power adapter, the module supports plug-and-play operation for easy setup and integration. Its compact design, stable output power, and long operating lifetime of up to 10,000 hours make it suitable for scientific research, fluorescence excitation, optical measurement, and industrial applications.
Key Features
-
375nm UV laser with 100mW output power
-
105µm multimode fiber output
-
Adjustable output power via a control knob
-
TTL modulation supported
-
Plug-and-play operation with power adapter
-
Compact design for easy integration
-
Stable laser output power
-
Operating lifetime of up to 10,000 hours
Specifications
| ITEMS | SPECIFICATIONS |
| Model Number | Fiber Coupled Laser Diode Module |
| Wavelength | 375nm |
| Output Power | 100mW |
| Laser Mode | CW, TTL |
| Power Adjustment | Adjustable Power Knob |
| Operating Current | <200mA |
| Operating Voltage | 5.0V DC |
| CDRH Class | Class IIIb |
| Circuit control | Auto Constant Current(ACC) |
| Circuit Protection | Static, Surge, and Reverse Polarity Protected |
| Working Temperature | -10℃ to 50℃ |
| Storage Temperature | -20℃ to 60℃ |
| Fiber Core Diameter | 105um |
| Cladding Diameter | 125um |
| Fiber Length | 1m |
| Numerical Aperture | 0.22 |
| Connector | FC/PC, FC/APC, SMA905 Optional |
| Life Time | 10,000Hrs |
Applications
-
Fluorescence Excitation
-
Fluorescence Spectroscopy
-
Scientific Research
-
UV Curing
-
Optical Measurement
-
Photochemical Applications
-
Industrial Inspection
-
Laboratory Instrumentation
Trade Terms
1) Payment: T/T, PayPal, Western Union, etc.
2) Shipment:FedEx, DHL, UPS etc.
3) Delivery Time: 5 - 20 days.
4) Shipment Terms: FOB Xi'an China
Why Choose Us
A. Over 20 years laser experience.
B. Large-scaled facility 4,500sq.m2 and over 180 professional staffs.
C. Use original LDs from Arima, Osram, Nicha and so on to guarantee reliability.
D. Producted in our ISO9001:2008 quality system factory.
E. Product conforms to FDA, IEC and GB standard.
F. Strong design and production capabilities, partners of famous brands.
