375nm 10mW 0.1nm Narrow Linewidth High Power Stability Fiber-Coupled Laser for Raman Spectroscopy
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Product Name | 375nm Narrow Linewidth Laser System | Wavelength | 375nm ± 1nm |
|---|---|---|---|
| Output Power | 10mW, 200mW(Optional) | Linewidth | ≤0.1nm |
| Power Stability(4Hours, ±3℃) | 1% | Fiber Type | 105um |
| Highlight | 375nm fiber-coupled laser for Raman spectroscopy,10mW narrow linewidth fiber laser,high power stability fiber laser module |
||
Product Description

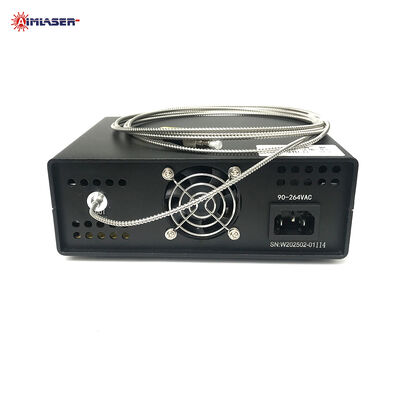

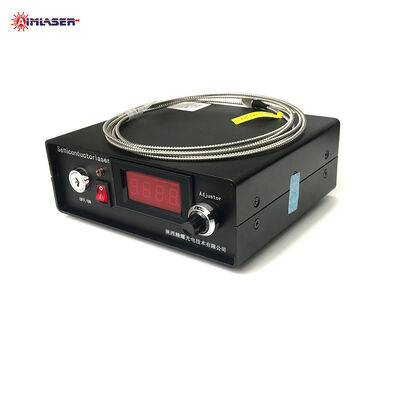

375nm 10mW 0.1nm Narrow Linewidth High Power Stability Fiber-Coupled Laser for Raman Spectroscopy
AMFC-375-10-MM Laser System
AIMLASER offers 375nm, 10mW, 0.1nm narrow linewidth fiber-coupled laser system for Raman Spectroscopy. This system features high power stability (≤1%), low RMS noise (≤1%), and comes with 105 µm or 200 µm fiber-coupled collimated output.
Key characteristics:
-
High power stability with broadband low optical noise
-
Excellent beam pointing stability
-
Flexible driver control modes (TTL or analog modulation supported)
-
Short preheating time and low heat generation
-
Compact size with low power consumption
-
Optional collimator for focusing or collimating the laser beam
-
Equipped with TEC temperature control for long-term high stability operation
-
Fiber connectors available: FC/PC, FC/APC, SMA905
In addition to 375 nm, AIMLASER provides 532 nm, 633 nm, 785nm, 1064 nm lasers with various power options for Raman Spectroscopy, as well as other industrial, scientific, and medical applications.
Specifications
| Parameter | Specifications | ||||
| Wavelength | 375±1nm | ||||
| Output Power | 10mW, 200mW(Optional) | ||||
| Fiber Core Diameter | 105um | ||||
| Power Stability(4hrs) | ≤1% | ||||
| RMS Noise | ≤1% | ||||
| Collimator Beam Size | Ø1mm@10mm | ||||
| Connector | SMA905, FC/APC, FC/PC | ||||
| Fiber Length | 1m | ||||
| Fiber Sheath | 2mm Armored | ||||
| Operating Mode | CW, TTL/Analogue Modulation | ||||
| Power Supply | 220V AC | ||||
| TTL modulation | 30KHz | ||||
| Cooling | TEC | ||||
| Operating Temperature | 25℃ | ||||
| Warm-up time | 5min | ||||
| Housing Material | Anodized Aluminum | ||||
| Size | 150x60x50mm | ||||
| Life Span | 10,000Hrs | ||||
| Warranty | 1 Year | ||||
Applications
- Raman spectroscopy and molecular analysis
- Pharmaceutical and chemical identification
- Biological and biomedical Raman imaging
- Material characterization and quality inspection
- Semiconductor and nanomaterial analysis
- Food safety and environmental monitoring
- Portable and handheld Raman spectrometer systems
Trade Terms
1) Payment: T/T, PayPal, etc.
2) Shipment: FedEx, DHL, UPS, etc.
3) Delivery Time: 5 - 20 days.
4) Shipment Terms: FOB Xi'an, China.
Our Services
A. All products come with a one-year warranty.
B. Use original LDs from Arima, Osram, Nich, and so on to guarantee reliability.
C. Product conforms to FDA, IEC, and GB standards.
D. Strictly following ISO9001:2008 quality system.
E. Provide OEM & ODM services, support customized for your requirements.
F. Strong design and production capabilities.
