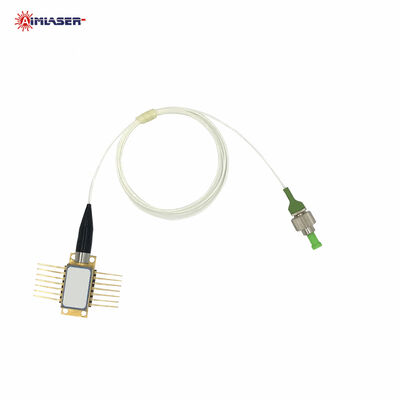

1030 nm 200 mW Single-Mode Laser Diode Butterfly Package with TEC and Optional Driver
Contact me for free samples and coupons.
WhatsApp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Product Name | DFB Butterfly Package Fiber-Coupled Laser Diode Module | Wavelength | 1030nm |
|---|---|---|---|
| Output Power | 200.0mW | Laser Mode | CW |
| Input Voltage | 5.0V DC | Connector | FC/PC, FC/APC, SMA905 |
| Fiber Type | PM980 | Life Span | 10,000 Hours |
| Highlight | 1030 nm single-mode laser diode,200 mW butterfly package laser,fiber laser module with TEC |
||
Product Description
1030 nm 200 mW PM1030 Single-Mode Laser Diode Butterfly Package with TEC and Optional Driver
Product Description
The AMLD series 1030 nm laser diode is a high-performance single-mode laser designed for precision applications. It features a multiquantum well (MQW) chip in a hermetically sealed 14-pin butterfly package, integrated with a thermoelectric cooler (TEC), thermistor, monitor photodiode, and optical isolator, ensuring stable output, narrow linewidth, and long-term reliability.
The laser diode is fiber-coupled with PM980 polarization-maintaining fiber and supports an optional laser driver with temperature controller. The driver provides precise current and temperature control via RS-232 interface and dedicated control software, allowing external monitoring, stable constant-current operation, and high-precision temperature management.
This laser system is ideal for laboratory experiments, fiber optic testing, industrial applications, and any process requiring high stability and repeatable performance.
Specifications
|
ITEMS |
SPECIFICATIONS |
|
Model Number |
DFB Butterfly Package Fiber-Coupled Laser Diode Module |
|
Wavelength |
1030±2nm |
|
Output Power |
200mW |
|
Laser Mode |
CW |
|
Side-mode Suppression Ratio |
50dB |
|
Polarization Extinction Ratio |
≥18dB |
|
Operating Voltage |
5.0V/3A |
|
Relative Intensity Noise |
≤-140dB/Hz |
|
Fiber Type |
PM980 |
|
Working Temperature |
-20℃ to 70℃ |
|
Dimensions |
30x12mm |
|
Fiber Length |
1m |
|
Connector |
FC/PC, FC/APC, SMA905 |
|
Life Time |
10,000Hrs |
Features
● High-performance single-mode output with narrow linewidth
● Stable and reliable operation under varying temperature and environmental conditions
● Integrated TEC, thermistor, and monitor photodiode for precise control
● Fiber-coupled design for easy integration into optical systems
● Optional laser driver and temperature controller
Applications
The 1030nm DFB Butterfly Package Fiber-Coupled Laser Diode Modules with TEC and Optional Driver are used in:
● Scientific Research: Ideal for interferometry, spectroscopy, and laboratory laser experiments requiring narrow linewidth and stable output.
● Fiber Amplifier Pumping: Suitable for pumping EDFAs and SOAs in optical signal amplification and testing.
● Fiber Sensing: Used in FBG sensors and distributed fiber sensing systems (DTS/DAS).
● Industrial & Laser Processing: Applicable for precision measurement, calibration, and optical instrumentation.
● Telecommunications & Optical Networks: For alignment, testing, and signal transmission in fiber optic systems.
