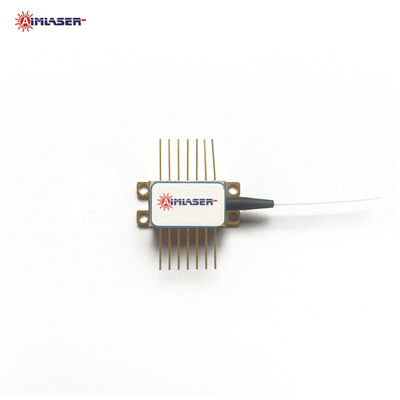

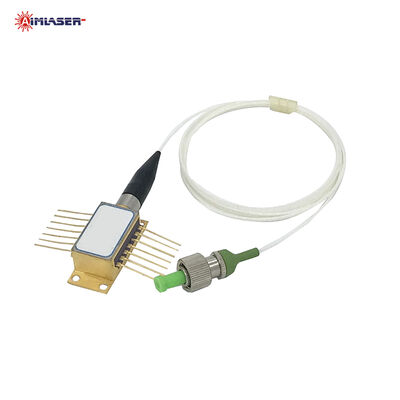

1310nm 1550nm DFB Butterfly Package Fiber-Coupled Laser Diode Module with TEC and Optical Isolator (Optional Driver)
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Product Name | DFB Butterfly Package Fiber-Coupled Laser Diode Module | Wavelength | 1310nm, 1550nm |
|---|---|---|---|
| Output Power | 50.0mW | Laser Mode | CW |
| Input Voltage | 5.0V DC | Connector | FC/PC, FC/APC, SMA905 |
| Fiber Type | SMF-28e | Life Span | 10,000 Hours |
| Highlight | 1310nm DFB butterfly laser diode module,1550nm fiber-coupled laser diode with TEC,butterfly package laser module with isolator |
||
Product Description
1310nm 1550nm DFB Butterfly Package Fiber-Coupled Laser Diode Module with TEC and Optical Isolator (Optional Driver)
Product Description
The AMLD series laser diodes cover a wide wavelength range, including 1270 nm, 1310 nm, 1550 nm, and 1610 nm, for various applications. The laser diodes are fabricated in a hermetically sealed 14-pin butterfly package.
Each laser diode integrates a thermoelectric cooler (TEC), thermistor, monitor photodiode, and optical isolator, ensuring high performance, excellent wavelength stability, and long-term reliability.
An optional laser driver and temperature controller is available, featuring an RS-232 interface and a customer-oriented PCB design. Dedicated control software (included) allows external monitoring and adjustment of the laser drive current and operating temperature, providing stable constant-current output and high-precision temperature control. The driver is primarily used for laser production and testing applications.
Specifications
|
ITEMS |
SPECIFICATIONS |
|
Model Number |
DFB Butterfly Package Fiber-Coupled Laser Diode Module |
|
Wavelength |
1310nm, 1550nm |
|
Output Power |
10mW |
|
Laser Mode |
CW |
|
Spectral Width(FWHM) |
3MHz |
|
Wavelength Shift |
0.1nm |
|
Operating Voltage |
5.0V/3A |
|
Optical Isolation |
≥30dB |
|
Relative Intensity Noise |
≤-140dB/Hz |
|
Fiber Type |
SMF-28e |
|
Working Temperature |
-20℃ to 70℃ |
|
Dimensions |
30x12mm |
|
Fiber Length |
1m |
|
Numerical Aperture |
0.13 N.A. |
|
Connector |
FC/PC, FC/APC, SMA905 |
|
Life Time |
10,000Hrs |
Features
● High output power (≥10 mW) with narrow linewidth DFB laser
● Built-in TEC and thermistor for stable wavelength control
● Integrated optical isolator to prevent back-reflection
● Internal monitor photodiode for power feedback
● SMF-28e fiber pigtail with FC/APC connector for plug-and-play use
Applications
The 1310 nm / 1550 nm DFB Butterfly Package Fiber-Coupled Laser Diode Modules with TEC and Optical Isolator (Optional Driver) are used in:
● Optical Communication: Ideal for DWDM/CWDM systems, long-haul and metro fiber networks, and high-speed data transmission.
● Fiber Sensing: Used in FBG temperature and strain sensors, distributed fiber sensing (DTS/DAS), and structural health monitoring.
● Gas Detection / Spectroscopy: Suitable for tunable diode laser absorption spectroscopy (TDLAS) for precise gas concentration measurements and industrial process monitoring.
● Scientific Research: Applied in interferometry, spectroscopy, and laboratory laser experiments requiring narrow linewidth and stable output.
● Fiber Amplifier Pumping: For EDFAs and SOAs in optical signal amplification and testing applications.
Trade Terms
1) Payment: T/T, PayPal, Western Union, etc.
2) Shipment:FedEx, DHL, UPS etc.
3) Delivery Time: 5 - 20 days.
4) Shipment Terms: FOB Xi'an China
Why Choose Us
A. Over 20 years laser experience.
B. Large-scaled facility 4,500 sq.m2 and over 180 professional staff.
C. Use original LDs from Arima, Osram, Nichia, and so on to guarantee reliability.
D. Produced in our ISO9001:2008 quality system factory.
E. Product conforms to FDA, IEC and GB standards.
F. Strong design and production capabilities, partners of famous brands.
