Fiber Optic Cannulae with Ceramic Ferrule for 100μm 200μm 300μm 400μm Applicable 400-2200nm
Contact me for free samples and coupons.
WhatsApp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Product Name | Fiber Optic Cannulae With Ceramic Ferrule | Fiber Core Diameter | 100μm, 200μm, 300μm, 400μm |
|---|---|---|---|
| NA | 0.22, 0.37, 0.5 | Applicable Wavelength | 400-2200nm |
| Ferrule Outer Diameters | 1.25mm(6.4mm Long), 2.5mm(10.5mm Long) | Optical Fiber Length | 1mm-20mm (customized) |
| Fiber Oblique Angle | 30°, 45°, 60° Avaliable | Color | White, Black |
| Material | Ceramic, Optical Fiber | ||
| Highlight | Fiber optic cannulae with ceramic ferrule,Fiber laser modules for 400-2200nm,100μm 200μm 300μm 400μm fiber cannulae |
||
Product Description

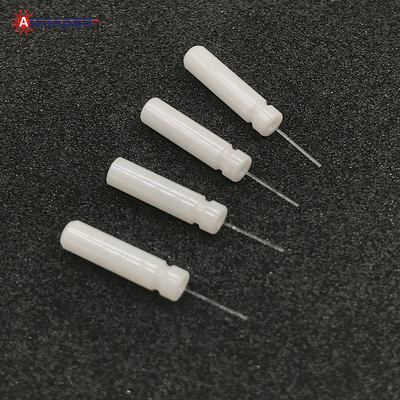

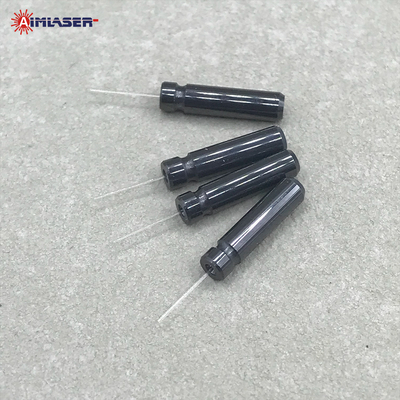

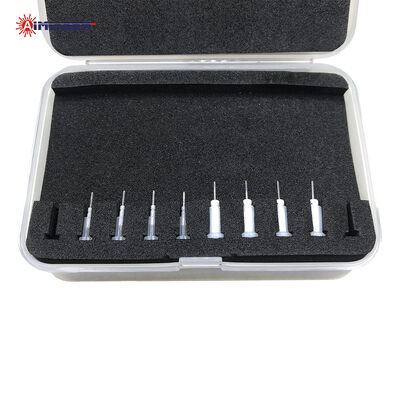

Fiber Optic Cannulae with Ceramic Ferrule for 100μm 200μm 300μm 400μm Applicable 400-2200nm
Fiber Optic Cannulae with Ceramic Ferrule
AIMLASER provides Fiber Optic Cannulae with Ceramic Ferrule Series, Optical Fiber Series, Optical Fiber Patch Cable Series, Fusion Fiber Series, Fiber Optic Rotary Joint, Ceramic Ferrule Holder, for life science neural circuit research, light transmission in neuroscience, optogenetics, and biomedical research.
Built with low-loss dual-clad quartz fiber and high-purity ceramic ferrules, these probes offer high transmission efficiency, low back reflection, and reliable biocompatibility. Optional nano-coating on the fiber pin reduces immune response, making them ideal for chronic implantation. Angled tips (30°, 45°, 60°) and grooved ferrule design ensure secure fixation and directional light delivery.
Available in 100μm–400μm core diameters, 1.25mm or 2.5mm ferrule sizes, customizable fiber lengths, and white or black ceramic tips. Precision polishing ensures focused beam output for accurate stimulation and signal capture.
Ceramic Ferrule Specifications
| Product Model | SPECIFICATIONS |
| AML200/0.37/1.25/5mm-B | Black Fiber Optic Cannulae with Ø1.25 mm Ceramic Ferrule, 200um Core, 0.37NA, 5 mm Fiber Protrusion |
| AML200/0.37/2.5/5mm-B | Black Fiber Optic Cannulae with Ø2.5 mm Ceramic Ferrule, 200um Core, 0.37NA, 5 mm Fiber Protrusion |
| AML200/0.37/1.25/5mm-W | White Fiber Optic Cannulae with Ø1.25 mm Ceramic Ferrule, 200um Core, 0.37NA, 5 mm Fiber Protrusion |
| AML200/0.37/2.5/5mm-W | White Fiber Optic Cannulae with Ø2.5 mm Ceramic Ferrule, 200um Core, 0.37NA, 5 mm Fiber Protrusion |
| AML200/0.22/1.25-5mm-B | Black Fiber Optic Cannulae with Ø1.25 mm Ceramic Ferrule, 200um Core, 0.22NA, 5 mm Fiber Protrusion |
| AML200/0.22/2.5-5mm-W | White Fiber Optic Cannulae with Ø2.5 mm Ceramic Ferrule, 200um Core, 0.22NA, 5 mm Fiber Protrusion |
| AML200/0.22/1.25-5mm-B | Black Fiber Optic Cannulae with Ø1.25 mm Ceramic Ferrule, 200um Core, 0.22NA, 5 mm Fiber Protrusion |
Ceramic Ferrule Features
● High Precision: Ensures efficient optical signal transmission with minimal loss.
● Stability: Suitable for long-term experiments, reducing signal fluctuations.
● Durability: Corrosion-resistant and high-temperature tolerant, ideal for complex experimental environments.
● Dual quartz optical fiber reduces light leakage and echo loss, with high light transmission.
● Biocompatible nano-coating reduces immune rejection and inflammatory response.
● Unique groove design for easy fixation.Customizable fiber length, with precision of
● ±0.1mm.Smooth cross-section for enhanced light concentration.
Ceramic Ferrule Applications
The Fiber Ceramic Ferrules are used in:
● Optogenetic stimulation and modulation
● Targeted phototherapy and light-based treatments
● Epilepsy and seizure disorder research
● Animal neuroscience and behavioral studies
● Neural disease modeling and pathway analysis
● In vivo neural signal recording
● Biomedical research and chronic implantation studies
Trade Terms
1) Payment: T/T, PayPal, Western Union, etc.
2) Shipment: FedEx, DHL, UPS, etc.
3) Delivery Time: 5 - 20 days.
4) Shipment Terms: FOB Xi'an, China.
Our Services
A. All products come with a one-year warranty.
B. Use original LDs from Arima, Osram, Nich, and so on to guarantee reliability.
C. Product conforms to FDA, IEC, and GB standards.
D. Strictly following ISO9001:2008 quality system.
E. Provide OEM & ODM services, support customized for your requirement.
F. Strong design and production capabilities.
