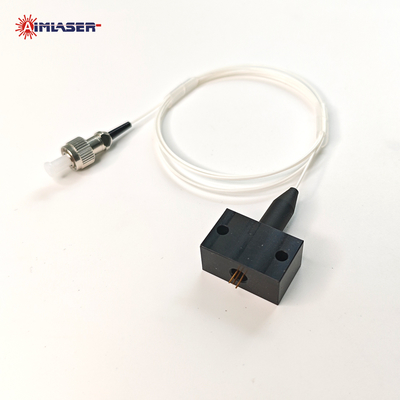

520nm 5mW 3.5um FC/PC Single Mode SM Fiber Coupled Laser Diode Module Coaxial Package with Photodiode (PD) and Heatsink
Contact me for free samples and coupons.
WhatsApp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Product Name | Fiber Coupled Laser Diode Module | Wavelength | 520nm |
|---|---|---|---|
| Output Power | ≤5.0mW | Input Voltage | 6.5V DC |
| Connector | FC/PC | Fiber Core Diameter | 3.5um |
| Life Span | 8,000 Hours | ||
| Highlight | 520nm fiber coupled laser diode,single mode SM laser module,FC/PC coaxial laser diode |
||
Product Description
520nm 5mW 3.5um FC/PC Single Mode SM Fiber Coupled Laser Diode Module Coaxial Package with Photodiode (PD) and Heatsink
Product Description

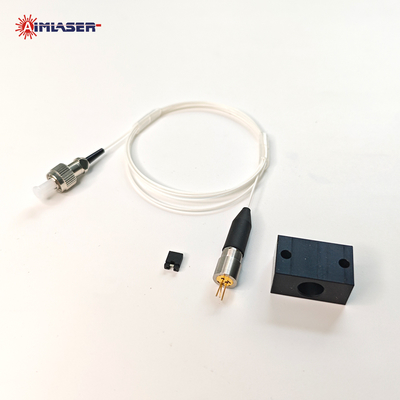

AIMLASER offers the 520nm fiber-coupled laser diode module that delivers ≤5mW output power through a 3.5µm core fiber, making it ideal for precision applications requiring stable green laser output. The module features a 1-meter fiber with a 0.9mm white jacket and FC/PC connector for easy integration. Operating at 6.5V DC with ≤90mA current, it includes an internal photodiode for power monitoring and comes equipped with a black aluminum heatsink for efficient thermal management. Suitable for OEM integration, research, and instrumentation.
Specifications
| ITEMS | SPECIFICATIONS |
| Model Number | Fiber-Coupled Laser Diode Module |
| Wavelength | 520nm |
| Output Power | 5mW |
| Laser Mode | CW |
| Spectral Width | <2.0nm |
| Wavelength Shift | 0.3nm |
| Operating Current | <90mA |
| Operating Voltage | 6.5V DC |
| CDRH Class | Class IIIb |
| Working Temperature | -10℃ to 50℃ |
| Storage Temperature | -40℃ to 80℃ |
| Fiber Core Diameter | 3.5um |
| Cladding Diameter | 0.9mm |
| Fiber Length | 1m |
| Numerical Aperture | 0.13 N.A. |
| Connector | FC/PC |
| Case Material | Stainless Steel |
| Life Time | 8,000Hrs |
Features
1. Compact size and low power consumption.
2. High reliability and stability, long lifetime.
3. Using special LD drivers and PD feedback.
4. Using original Laser Diodes from Arima, Osram, Nichia, and branded chips.
5. Conform to ROHS, FDA, IEC, and SGS standards.
6. Provide a one-year warranty and customized solutions.
Applications
The 520nm 5mW 3.5um Green Single Mode Coaxial Pigtailed Fiber Coupled Laser Diode Modules are used in:
● Biomedical analysis
● Laser alignment
● DNA sequencing
● Optical sensing
● Precision measurement
● Scientific research
