638nm Fiber Laser With Separated Driver And TEC Cooling High Quality Laser Beam For Biomedical
Contact me for free samples and coupons.
WhatsApp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Product Name | Modular Laser System | Wavelength | 638nm |
|---|---|---|---|
| Output Power | ≤30mW | Centeral Wavelength | 405nm 450nm 488nm 505nm 520nm 638nm 660nm 685nm 785nm 808nm 830nm 850nm 905nm 940nm 980nm(Optional) |
| Power Stability 2Hrs | 2% | Beam Quality | ≤ 1.2 |
| RMS Noise | < 1% | ||
| Highlight | 638nm Fiber Laser,Separated Driver Fiber Laser,Biomedical Fiber Laser |
||
Product Description

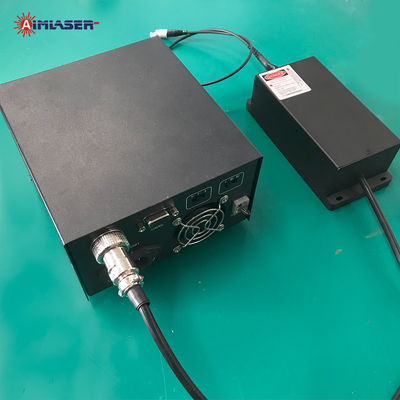

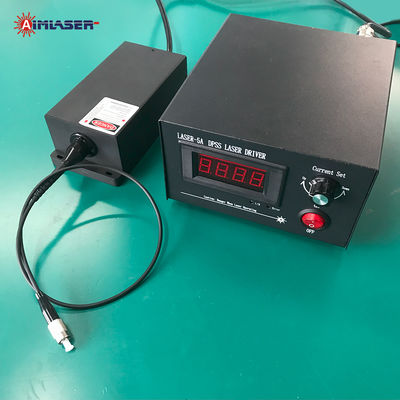

638nm Fiber Laser with Separated Driver and TEC Cooling High Quality Laser Beam For Biomedical
AM638SL30 Laser System
AIMLASER’s modular laser system features a separated laser head and driver unit, providing enhanced thermal management, installation flexibility, and long-term operational stability. Covering a wide wavelength range from 375nm to 1550nm, this system is ideal for integration into precision instruments where space, heat, and reliability are critical factors.
The use of high beam quality (M² ≤ 1.2) optics and integrated TEC temperature control ensures stable output and minimal beam distortion across a range of applications. Its compact and robust design makes it suitable for both lab research and industrial deployment, with full customization available for wavelength, power, fiber interface, and control modes.
Features
-
Separated laser head and driver for flexible installation
-
M² ≤ 1.2 for high beam quality
-
Integrated TEC temperature control
-
Wide wavelength options: 375nm–1550nm
-
Customizable optical and electrical configurations
Specifications
| Parameter | Symbol | Min | Typ | Max | Unit |
| Output Power | P0 | Customizable | mW | ||
| Power Stability (2hrs) | Ps | 2 | % | ||
| Central Wavelength | λc | 405nm 450nm 488nm 505nm 520nm 638nm 660nm 685nm 785nm 808nm 830nm 850nm 905nm 940nm 980nm(Optional) | nm | ||
| Spectral Width | Δλ | 1 | 2 | nm | |
| Warm-up Time | Tw | 5 | min | ||
| Noise (10Hz–100MHz) | N | 1 | % | ||
| Fiber Type | Single-Mode SM Fiber | ||||
| Fiber Length | L | 1 | m | ||
| Numerical Aperture | NA | 0.13 | |||
| Connector | FC-PC / FC-APC | ||||
| Operating Voltage | Vin | 90 | 220 | 245 | V |
| TTL Modulation Frequency | 100 | KHz | |||
| Life Time | MTTF | 10,000 | Hrs | ||
| Operating Temperature | Tstg | 0 – 40 | °C | ||
| Storage Temperature | Topr | -20 – 65 | °C | ||
Applications
-
Biomedical diagnostics and imaging
-
Fluorescence spectroscopy
-
Scientific research and laser sensing
-
Optical detection and photonic measurement systems
Trade Terms
1) Payment: T/T, PayPal, Western Union, etc.
2) Shipment: FedEx, DHL, UPS, etc.
3) Delivery Time: 5 - 20 days.
4) Shipment Terms: FOB Xi'an, China.
Our Services
A. All products come with a one-year warranty.
B. Use original LDs from Arima, Osram, Nich, and so on to guarantee reliability.
C. Product conforms to FDA, IEC, and GB standards.
D. Strictly following ISO9001:2008 quality system.
E. Provide OEM & ODM services, support customized for your requirement.
F. Strong design and production capabilities.
