Optical Fiber Ferrule Ceramic / Steel Neural Implant Customizable White / Black and Lengths
Contact me for free samples and coupons.
WhatsApp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Product Name | Optical Fiber Ferrule | Fiber Core Diameter | 100μm, 200μm, 300μm, 400μm |
|---|---|---|---|
| NA | 0.22, 0.37, 0.5 | Fiber Length | 1-20mm |
| Ferrule Outer Diameters | 1.5mm, 2.5mm | Color | White, Black |
| Highlight | Black Optical Fiber Ferrule,Steel Optical Fiber Ferrule,Ceramic Optical Fiber Ferrule |
||
Product Description

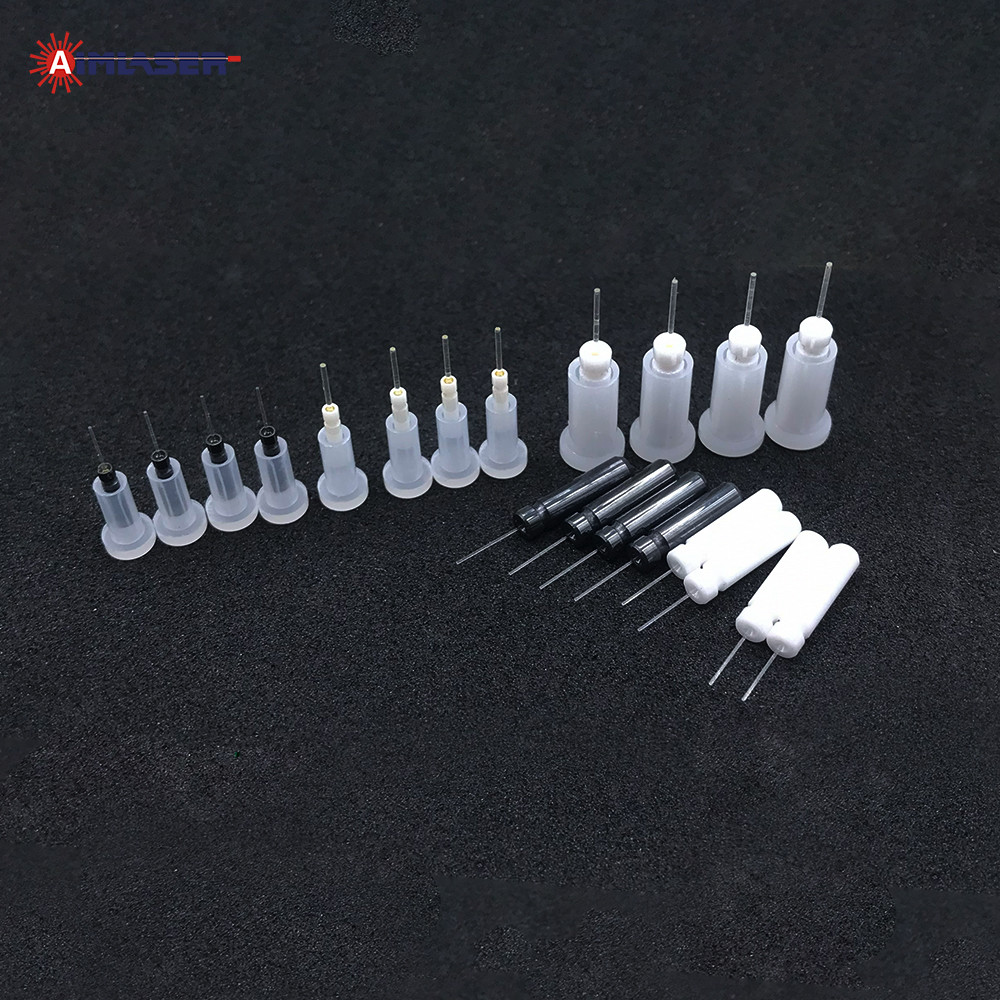

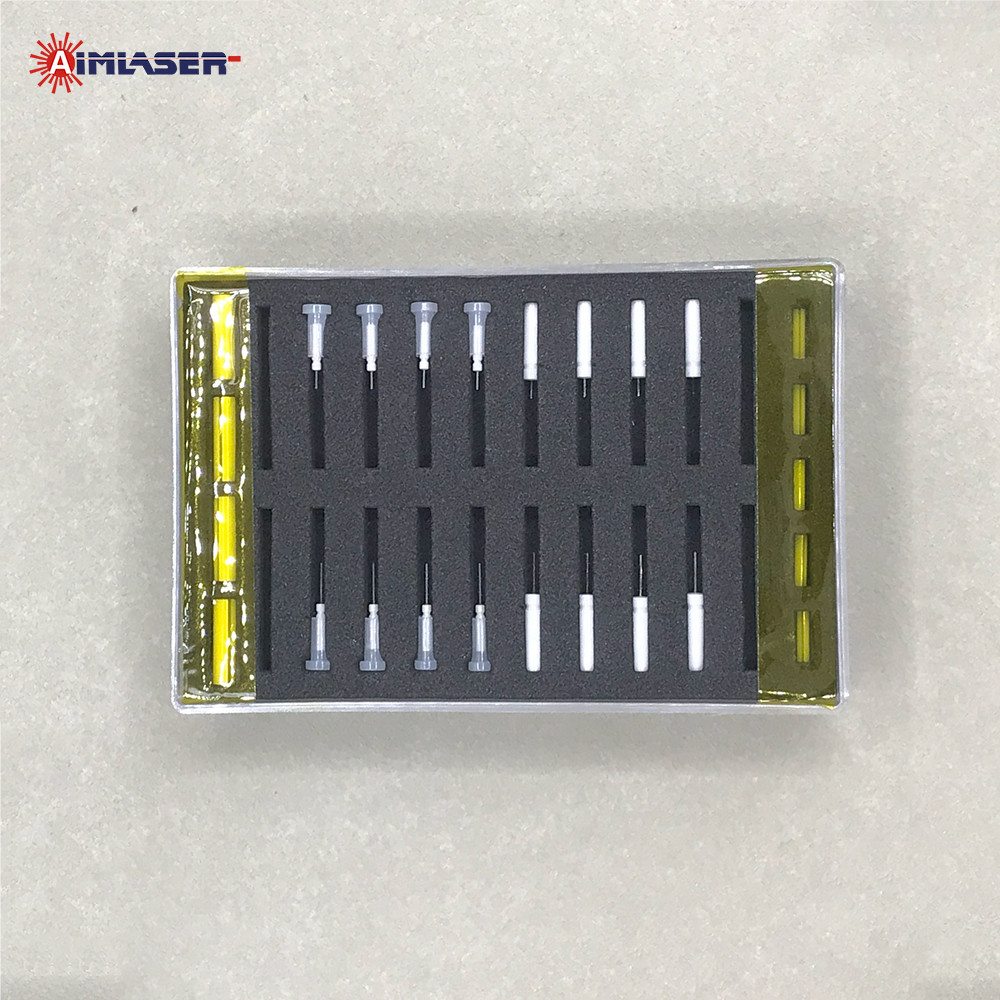

Optical Fiber Ferrule Ceramic/Steel Neural Implant Customizable White / Black and Lengths
Neural Implant Fiber Ferrule
AIMLASER Fiber Optic Ceramic Ferrule Assemblies are designed for high-precision light transmission in neuroscience, optogenetics, and biomedical research.
Built with low-loss dual-clad quartz fiber and high-purity ceramic ferrules, these probes offer high transmission efficiency, low back reflection, and reliable biocompatibility. Optional nano-coating on the fiber pin reduces immune response, making them ideal for chronic implantation. Angled tips (30°, 45°, 60°) and grooved ferrule design ensure secure fixation and directional light delivery.
Available in 100μm–400μm core diameters, 1.25mm or 2.5mm ferrule sizes, customizable fiber lengths, and white or black ceramic tips. Precision polishing ensures focused beam output for accurate stimulation and signal capture.
Specifications
| ITEMS | SPECIFICATIONS |
| Product Name | Fiber Ceramic Ferrules Probes |
| Fiber Core Diameter | 100μm, 200μm, 300μm, 400μm |
| NA | 0.22, 0.37, 0.5 |
| Ferrule Outer Diameters | Ø1.5mm(L6.4mm), Ø2.5mm(L10.5mm) |
| Fiber Length | 1-20mm (Custom) |
| Luminousness | ≥85% |
| Color | White, Black |
Features
● High Precision: Ensures efficient optical signal transmission with minimal loss.
● Stability: Suitable for long-term experiments, reducing signal fluctuations.
● Durability: Corrosion-resistant and high-temperature tolerant, ideal for complex experimental environments.
● Dual quartz optical fiber reduces light leakage and echo loss, with high light transmission.
● Biocompatible nano-coating reduces immune rejection and inflammatory response.
● Unique groove design for easy fixation.Customizable fiber length, with precision of
● ±0.1mm.Smooth cross-section for enhanced light concentration.
Applications
The Fiber Ceramic Ferrules are used in:
● Optogenetic stimulation and modulation
● Targeted phototherapy and light-based treatments
● Epilepsy and seizure disorder research
● Animal neuroscience and behavioral studies
● Neural disease modeling and pathway analysis
● In vivo neural signal recording
● Biomedical research and chronic implantation studies
Trade Terms
1) Payment: T/T, PayPal, Western Union, etc.
2) Shipment: FedEx, DHL, UPS, etc.
3) Delivery Time: 5 - 20 days.
4) Shipment Terms: FOB Xi'an, China.
Our Services
A. All products come with a one-year warranty.
B. Use original LDs from Arima, Osram, Nich, and so on to guarantee reliability.
C. Product conforms to FDA, IEC, and GB standards.
D. Strictly following ISO9001:2008 quality system.
E. Provide OEM & ODM services, support customized for your requirement.
F. Strong design and production capabilities.
