Optical Fiber Ceramic Ferrule Ø2.5mm 10.5mm Long 200μm Core Size with Flange and Fiber Jumper Patch Cable
Contact me for free samples and coupons.
WhatsApp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Product Name | Optical Fiber Ceramic Ferrules | Fiber Core Diameter | 100μm, 200μm, 300μm, 400μm |
|---|---|---|---|
| NA | 0.22, 0.37, 0.5 | Ferrule Outer Diameters | Ø1.25mm, Ø2.5mm |
| Fiber Length | 1-20mm(Ø1.25mm), 1-20mm(Ø2.5mm) (Custom) | Light Transmittance | ≥85% |
Product Description

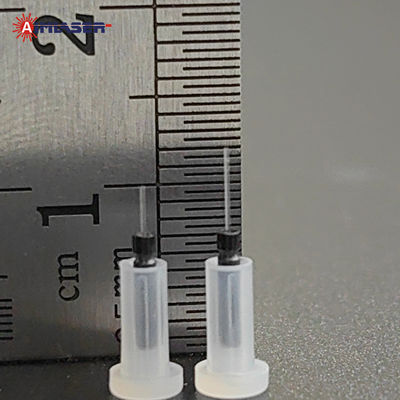

Optical Fiber Ceramic Ferrule Ø2.5mm 10.5mm Long 200μm Core Size with Flange and Fiber Jumper Patch Cable
Product Description
AIMLASER offers precision-engineered optical fiber ceramic ferrules for advanced optogenetics, neuroscience, and neural interface research. These components are also suitable for use in fiber optic sensing and communication systems where high performance and biocompatibility are essential.
Each probe integrates high-purity dual-clad quartz fiber with a durable ceramic ferrule to achieve excellent optical transmission, reduced insertion loss, and minimal back reflection. The ferrule surface is treated with a biocompatible nanocoating to minimize immune response and inflammation during in vivo studies, making it ideal for chronic implantation. The body features a functional groove for easy alignment and fixation in experimental setups, while optional angled fiber tips (30°, 45°, 60°) allow for directional light delivery tailored to specific neural targets.
Available in a range of core diameters (100μm to 400μm) and ferrule sizes (Ø1.25mm and Ø2.5mm), with white or black ceramic tip options, these probes are fully customizable in length with high dimensional accuracy. The polished fiber endface ensures tight beam focus, making it a reliable and effective tool for precise light-based stimulation and neural signal acquisition in both research and applied settings.
Specifications
| ITEMS | SPECIFICATIONS |
| Product Name | Fiber Ceramic Ferrules Probes |
| Fiber Core Diameter | 100μm, 200μm, 300μm, 400μm |
| NA | 0.22, 0.37, 0.5 |
| Ferrule Outer Diameters | Ø1.5mm(L6.4mm), Ø2.5mm(L10.5mm) |
| Fiber Length | 1-20mm (Custom) |
| Luminousness | ≥85% |
| Color | White, Black |
Features
● Dual-clad quartz fiber for low loss and high optical clarity
● Biocompatible nanocoating reduces immune response and inflammation
● Customizable core diameters, ferrule sizes, angles, and fiber lengths
● Precision-polished endface for excellent beam focus
● Grooved ceramic ferrule for easy and stable fixation
● Low autofluorescence for sensitive optical and neural measurements
Applications
The Optical Fiber Ceramic Ferrules are used in:
● The Optical Fiber Ceramic Ferrules are used in:
● Optogenetic stimulation and inhibition of targeted neurons
● Neural signal collection and transmission in brain research
● Chronic implantation studies in animal models
● Development of brain-machine and neural interface systems
● High-precision light delivery in fiber optic communication and sensing
● Experimental setups requiring stable, low-loss fiber alignment
Trade Terms
1) Payment: T/T, PayPal, Western Union, etc.
2) Shipment: FedEx, DHL, UPS etc.
3) Delivery Time: 5 - 20 days.
4) Shipment Terms: FOB Xi'an China
Why Choose Us
A. Over 20 years of laser experience.
B. Large-scaled facility 4,500sq.m2 and over 180 professional staff.
C. Use original LDs from Arima, Osram, Nicha and so on to guarantee reliability.
D. Strictly following ISO9001:2008 quality system.
E. Product conforms to FDA, IEC and GB standards.
F. Strong design and production capabilities, partners of famous brands.
