High Power 500mW 12V Fiber Laser Diode Module 405nm 450nm 520nm 635nm 650nm
Contact me for free samples and coupons.
WhatsApp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Product Name | Single Mode Fiber Coupled Laser Module | Wavelength | 520nm |
|---|---|---|---|
| Output Power | ≤500.0mW | Laser Mode | CW |
| Input Voltage | 12.0V DC | Connector | FC, PC, ST, SMA905 |
| Fiber Core Diameter | 4um | Life Span | 8,000 Hours |
| Highlight | 500mW Fiber Laser Diode Module,12V Fiber Laser Diode Module,High Power Laser Diode Module 450nm |
||
Product Description

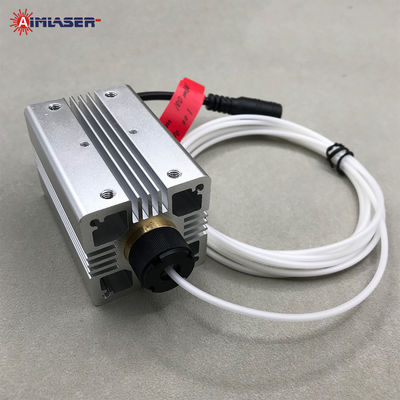

High Power 500mW 12V Single Mode Fiber Laser Diode Module 405nm 450nm 520nm 635nm 650nm
Product Description
AIMLASER offers customized fiber-coupled laser diode modules with coaxial packaging. We provide single-mode fiber options with core diameters of 3.5µm, 4µm, 6.5µm, and 9µm, and multi-mode fiber options of 50µm, 62.5µm, 105µm, 125µm, 170µm, and 200µm. Wavelengths include 405nm, 450nm, 520nm, 635nm, 650nm, 780nm, 850nm, 980nm, 1064nm, with output power from 1mW to 500mW. Connectors include FC, PC, ST, or SMA905, with customizable fiber lengths.
Our single-mode pigtailed fiber-coupled laser modules are compact and energy-efficient. They feature customized LD drivers and optional PD control for enhanced reliability. These modules are widely used in medical instruments, biomedical treatments, laser lighting, scientific research, DNA sequencing, and other industrial applications.
The AM520MF500 is a high-power green single-mode coupled laser module with a maximum output of 500mW at 520nm. Contact us for customized solutions tailored to your application.
Specifications
| ITEMS | SPECIFICATIONS |
| Model Number | High Power Fiber Coupled Laser Diode Module |
| Wavelength | 520nm |
| Output Power | ≤500mW |
| Laser Mode | CW |
| Spectral Width | <2.0nm |
| Wavelength Shift | 0.3nm |
| Operating Current | <120mA |
| Operating Voltage | 12.0V DC |
| Optical Lens | Optical Coating Glass Lens |
| CDRH Class | Class IIIb |
| Circuit control | Auto Constant Current(ACC) |
| Circuit Protection | Static, Surge, and Reverse Polarity Protected |
| Working Temperature | -10℃ to 50℃ |
| Storage Temperature | -20℃ to 60℃ |
| Dimensions | 60x80x60mm |
| Fiber Core Diameter | 4um |
| Cladding Diameter | 125um |
| Fiber Length | 1m |
| Numerical Aperture | 0.13 N.A. |
| Connector | FC, PC, ST, SMA905 |
| Case Material | Stainless Steel |
| Life Time | 8,000Hrs |
Features
1. Compact size and low power consumption.
2. High reliability and stability, long lifetime.
3. Using special LD drivers and PD feedback.
4. Using original Laser Diodes from Arima, Osram, Nicha and branded chips.
5. Conform to ROHS, FDA, IEC, SGS standards.
6. Provide a ONE year warranty and customized solutions.
Applications
The 520nm 500mW 4um Green Single Mode Coaxial Pigtailed Fiber Coupled Laser Diode Modules are used in:
● Medical Applications: Laser therapy, diagnostic tools, and treatments.
● Biotechnology: DNA sequencing, genetic analysis, and molecular research.
● Scientific Research: Spectroscopy, laser-based experiments, and precision measurements.
● Laser Illumination: High-quality lighting for displays and projections.
● Industrial Applications: Alignment, metrology, and optical testing.
● Environmental Monitoring: Sensors for air and water quality analysis.
Trade Terms
1) Payment: T/T, PayPal, Western Union, etc.
2) Shipment:FedEx, DHL, UPS etc.
3) Delivery Time: 5 - 20 days.
4) Shipment Terms: FOB Xi'an China
Why Choose Us
A. Over 20 years laser experience.
B. Large-scaled facility 4,500sq.m2 and over 180 professional staffs.
C. Use original LDs from Arima, Osram, Nicha and so on to guarantee reliability.
D. Producted in our ISO9001:2008 quality system factory.
E. Product conforms to FDA, IEC and GB standard.
F. Strong design and production capabilities, partners of famous brands.
FAQ
Q1: Do you support customized solutions?
A: Yes, we offer customized solutions tailored to your requirements, including various parameters.
Q2: Do you have multi mode fiber laser source?
A: Yes, we have multi mode fiber laser diode modules with TTL and Analogue Modulation, and RGB fiber lasers, single mode polarization maintaining fiber coupled laser module, fiber collimator etc.
Q3: Do you offer power adapter and fiber?
A: Yes, we offer them with different specifications as you wanted.
Q4: How can I ensure the products have no quality issues?
A: The products are produced in our ISO9001:2008 approved factory, and certified by FDA, IEC, and GB. All products undergo internal testing before shipping and come with a one year warranty. We respond proactively to any quality issues.
