RGB Fiber-Coupled Laser Module with Bluetooth Control and Corning Fibrance Light-Diffusing Fiber for Stage Lighting
Product Details
| Product Name | RGB Multimode Fiber Coupled Laser Module | Wavelength | 405nm, 520nm, 638nm |
|---|---|---|---|
| Output Power | ≤60.0mW | Laser Mode | CW |
| Operating Voltage | 12.0V DC | Control | Bluetooth Control |
| Fiber Core Diameter | 170um | Life Span | 8,000 Hours |
| Highlight | Bluetooth Fiber Laser Modules,RGB Fiber Laser Modules |
||
Product Description
RGB Fiber Coupled Laser Module

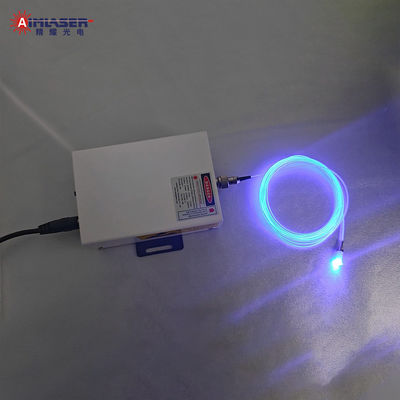

AIMLASER RGB Fiber-Coupled Laser Modules combine red(638nm), green(520nm), and blue(450nm) laser sources into a compact optical system for multi-color lighting and precision optical applications. The AM-RGB60FC-BC features Bluetooth control and an FC optical output, with laser light coupled into Corning® Fibrance® light-diffusing fiber for stage lighting and decorative illumination.
We offer customizable wavelengths, output power, fiber types, core sizes, connectors, and fiber lengths to meet different application requirements. Optional TEC temperature control is available for improved output stability and reliability.
Specifications
| ITEMS | SPECIFICATIONS |
| Model Number | RGB Fiber Coupled Laser Diode Module |
| Wavelength | 450nm, 520nm, 638nm |
| Output Power | 60mW |
| Laser Mode | CW |
| Spectral Width | <2.0nm |
| Operating Current | <600mA |
| Operating Voltage | 12.0V DC |
| CDRH Class | Class IIIb |
| Circuit control | Auto Constant Current(ACC) |
| Circuit Protection | Static, Surge, and Reverse Polarity Protected |
| Working Temperature | -10℃ to 50℃ |
| Storage Temperature | -20℃ to 60℃ |
| Dimensions | 80x60x40mm |
| Fiber Core Diameter | 170um |
| Fiber Length | 2m |
| Numerical Aperture | 0.22 N.A. |
| Connector | FC |
| Case Material | Anodized Aluminum |
| Life Time | 8,000Hrs |
Features
-
RGB multi-wavelength laser output
-
Bluetooth control for convenient color adjustment
-
Compatible with Corning® Fibrance® light-diffusing fiber
-
Compact design with low power consumption
-
Customizable fiber and optical configurations
-
Optional TEC temperature control
Applications
-
Stage lighting and decorative illumination
-
Laser displays
-
Optical instrumentation
-
Scientific and industrial applications
Trade Terms
1) Payment: T/T, PayPal, Western Union, etc.
2) Shipment:FedEx, DHL, UPS etc.
3) Delivery Time: 5 - 20 days.
4) Shipment Terms: FOB Xi'an China
Why Choose Us
A. Over 20 years laser experience.
B. Large-scaled facility 4,500sq.m2 and over 180 professional staffs.
C. Use original LDs from Arima, Osram, Nicha and so on to guarantee reliability.
D. Strictly following ISO9001:2008 quality system.
E. Product conforms to FDA, IEC and GB standard.
F. Strong design and production capabilities, partners of famous brands.
FAQ
Q1: Do you offer customized solutions?
A: Yes, we provide tailored solutions to meet your specific needs, including customized wavelength, output power, working voltage, and connectors.
Q2: Do you supply power adapters and fiber cables?
A: Yes, we offer power adapters and fiber cables according to your specifications.
Q3: How can I be sure the products are of high quality?
A: Our products are manufactured in an ISO9001:2008 certified facility and comply with FDA, IEC, and GB standards. Each product undergoes rigorous internal testing and is backed by a one-year warranty. We address any quality concerns promptly.
