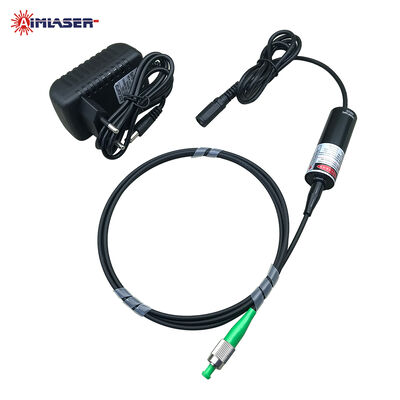

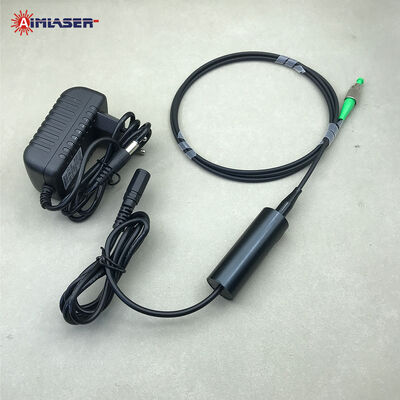

638nm 30mW Single-Mode Fiber-Coupled Laser Diode Module with 4µm Fiber Core, FC/PC Connector, Driver and Power Adapter
Product Details
| Product Name | Single Mode Fiber Coupled Laser Module | Wavelength | 635nm |
|---|---|---|---|
| Output Power | ≤30.0mW | Input Voltage | 5V DC |
| Connector | FC/PC | Fiber Core Diameter | 4um |
| Life Span | 8,000 Hours | ||
| Highlight | 635nm Fiber Coupled Laser Diode Module,30mW Fiber Coupled Laser Diode Module,3µM Single Mode Fiber Module |
||
Product Description
AM638SF30FC
The AIMLASER 638nm 30mW Fiber-Coupled Laser Diode Module is designed for precision optical applications requiring a compact laser source with stable output power. It features a coaxial package, a 4µm single-mode fiber, and an FC/PC connector, providing a convenient solution for integration into optical instruments and laser systems.
The module features a dedicated driver circuit board for reliable laser operation and can be supplied with a power adapter for plug-and-play use. Its compact design allows easy integration into space-constrained systems, while the fiber-coupled output provides flexible optical delivery. Custom configurations are available to meet specific requirements for scientific research, optical measurement, medical instrumentation, and industrial applications.
Specifications
| ITEMS | SPECIFICATIONS |
| Model Number | Pigtailed Fiber Coupled Laser Diode Module |
| Wavelength | 638nm |
| Output Power | 30mW |
| Laser Mode | CW |
| Spectral Width | <2.0nm |
| Operating Current | <200mA |
| Operating Voltage | 5.0V DC |
| CDRH Class | Class IIIb |
| Circuit control | Auto Power Control(APC) |
| Circuit Protection | Static, Surge, and Reverse Polarity Protected |
| Working Temperature | -10℃ to 50℃ |
| Storage Temperature | -20℃ to 60℃ |
| Dimensions | Φ16x50mm |
| Fiber Core Diameter | 4um |
| Cladding Diameter | 125um |
| Fiber Length | 1m |
| Numerical Aperture | 0.12 N.A. |
| Connector | FC/PC |
| Life Time | 8,000Hrs |
Features
-
638nm red laser, 30mW output power
-
4µm single-mode fiber with FC/PC connector
-
Compact coaxial package
-
Stable output power
-
Driver circuit board and power adapter available
Applications
-
Scientific research
-
Optical measurement
-
Medical instrumentation
-
Industrial applications
