635nm 30mW 3µM Single Mode Fiber Coupled Laser Diode Module With FC / PC Connector
Contact me for free samples and coupons.
WhatsApp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Product Name | Single Mode Fiber Coupled Laser Module | Wavelength | 635nm |
|---|---|---|---|
| Output Power | ≤30.0mW | Input Voltage | 3~5V DC |
| Connector | FC, PC, ST, SMA905 | Fiber Core Diameter | 3um |
| Life Span | 8,000 Hours | ||
| Highlight | 635nm Fiber Coupled Laser Diode Module,30mW Fiber Coupled Laser Diode Module,3µM Single Mode Fiber Module |
||
Product Description

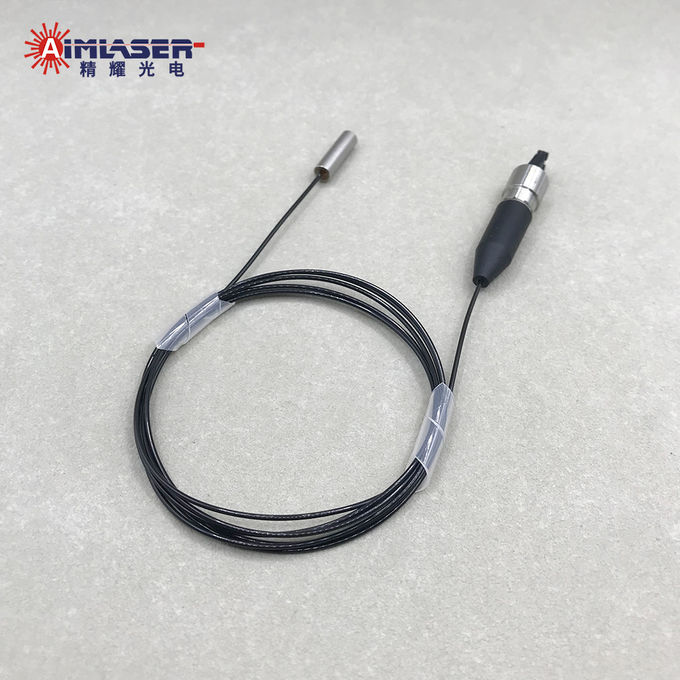

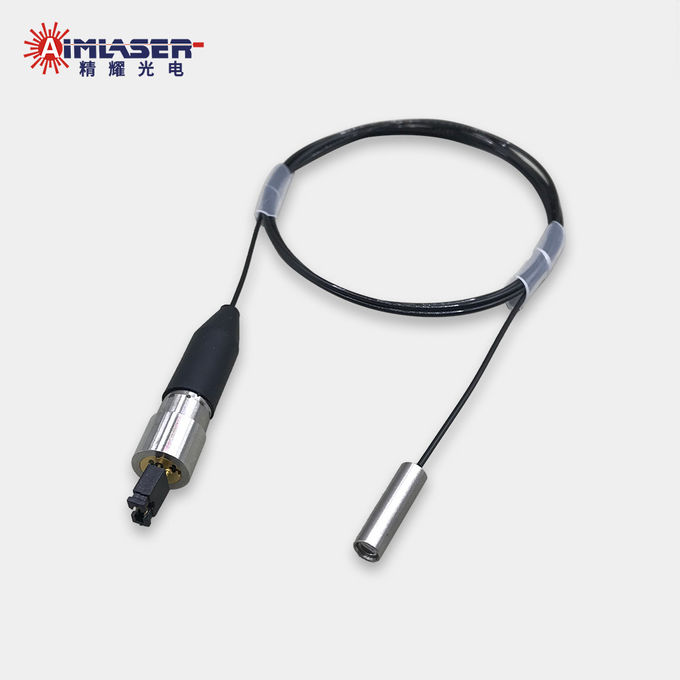

635nm 30mW 3µm Single-Mode Fiber Coupled Laser Diode Module with Pigtail and FC/PC Connector
Product Description
AIMLASER offers custom fiber-coupled laser diode modules in coaxial packages. Single-mode fiber options include 3.5µm, 4µm, 6.5µm, and 9µm core diameters, while multimode fiber options include 50µm, 62.5µm, 105µm, 125µm, 170µm, and 200µm. Available wavelengths range from 405nm, 450nm, 520nm, 635nm, 650nm, 780nm, 850nm, 980nm to 1064nm, and output powers range from 1mW to 500mW. Connectors include FC, PC, ST, or SMA905, and a variety of fiber lengths can be customized.
Our single-mode pigtailed fiber-coupled laser modules feature compact designs and low power consumption. LD drivers tailored to customer applications are available, and PD control can be added to enhance reliability and stability. These fiber with pigtail laser sources are widely used in medical, scientific research, and industrial applications etc.
We also manufacture polarization-maintaining fiber lasers, dual-wavelength fiber pigtail lasers, high-stability BIOS laser sources, and fiber collimators for various applications. Please contact us with your application and laser specifications. We can provide custom solutions to meet your needs.
Specifications
| ITEMS | SPECIFICATIONS |
| Model Number | Pigtailed Fiber Coupled Laser Diode Module |
| Wavelength | 635nm |
| Output Power | 30mW |
| Laser Mode | CW |
| Spectral Width | <2.0nm |
| Wavelength Shift | 0.3nm |
| Operating Current | <120mA |
| Operating Voltage | 3.0~5.0V DC |
| Optical Lens | Optical Coating Glass Lens |
| CDRH Class | Class IIIb |
| Circuit control | Auto Constant Current(ACC) |
| Circuit Protection | Static, Surge, and Reverse Polarity Protected |
| Working Temperature | -10℃ to 50℃ |
| Storage Temperature | -20℃ to 60℃ |
| Dimensions | Φ8x22mm |
| Fiber Core Diameter | 3um |
| Cladding Diameter | 125um |
| Fiber Length | 1m |
| Numerical Aperture | 0.12 N.A. |
| Connector | FC/PC |
| Case Material | Stainless Steel |
| Life Time | 8,000Hrs |
Features
1. Compact size and low power consumption.
2. High reliability and stability, long lifetime.
3. Using special LD drivers and PD feedback.
4. Using original Laser Diodes from Arima, Osram, Nicha and branded chips.
5. Conform to ROHS, FDA, IEC, SGS standards.
6. Provide a ONE year warranty and customized solutions.
Applications
The 635nm 30mW 3um Red Single Mode Coaxial Pigtailed Fiber Coupled Laser Diode Modules are used in:
● Scientific Research: quantum optics, fluorescence excitation, and spectral analysis.
● Biomedical Applications: optical imaging, biosensing, and diagnostic equipment.
● Industry and Manufacturing: precision measurement, laser marking, and equipment calibration.
● Display Technology: laser displays and projection systems.
● Optical Communication: alignment, testing, and signal transmission in optical systems.
Trade Terms
1) Payment: T/T, PayPal, Western Union, etc.
2) Shipment:FedEx, DHL, UPS etc.
3) Delivery Time: 5 - 20 days.
4) Shipment Terms: FOB Xi'an China
Why Choose Us
A. Over 20 years laser experience.
B. Large-scaled facility 4,500sq.m2 and over 180 professional staffs.
C. Use original LDs from Arima, Osram, Nicha and so on to guarantee reliability.
D. Producted in our ISO9001:2008 quality system factory.
E. Product conforms to FDA, IEC and GB standard.
F. Strong design and production capabilities, partners of famous brands.
