Single Mode Pigtailed Fiber Coupled IR Laser Module 780nm 850nm 980nm 1064nm 1 - 500mW

Place of Origin China
Brand Name AIMLASER
Certification FDA, IEC
Model Number AM850SF50D2
Minimum Order Quantity 1
Price USD $20-100
Packaging Details Anti-static bag, Carton
Delivery Time 10-20 days
Payment Terms T/T, Western Union, PayPal
Supply Ability 1000pcs/month

Contact me for free samples and coupons.

WhatsApp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Product Name Single Mode Fiber Coupled Laser Module Wavelength 405~1064nm
Output Power 1.0~500.0mW Laser Mode CW
Input Voltage 3~5V DC Connector FC/PC
Fiber Core Diameter 4um Life Span 8,000 Hours
Highlight

Single Mode IR Laser Module

,

IR Laser Module 780nm

Leave a Message
Product Description

Single-Mode Pigtailed Fiber Coupled Laser Module High Stability IR 780nm 850nm 980nm 1064nm 1-500mW Custom Solutions


Product Description



AIMLASER offers customized coaxial fiber-coupled laser diode modules. Single-mode fiber options include core diameters of 3.5µm, 4µm, 6.5µm, and 9µm, while multimode fibers are available in sizes of 50µm, 62.5µm, 105µm, 125µm, 170µm, and 200µm. We provide a wide range of wavelengths, such as 405nm, 450nm, 520nm, 635nm, 650nm, 780nm, 850nm, 980nm, and 1064nm, with output power from 1mW to 500mW. Connector types include FC, PC, ST, and SMA905, and fiber lengths can be made to order.

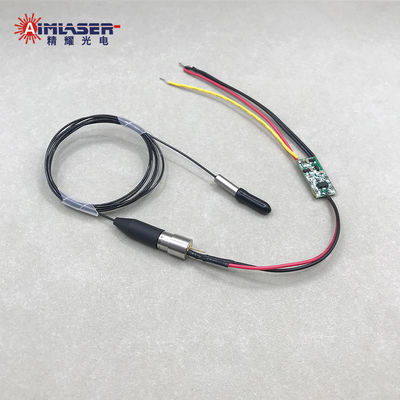

Our single-mode pigtailed fiber laser modules are compact and energy-efficient. We can supply LD drivers designed for specific needs, and optional PD control improves reliability and stability. These modules are widely used in medical lasers, biomedical tools, laser lighting, research, genome sequencing, and other industries.



Contact us with your requirements and specifications. We will provide a solution tailored to your needs.

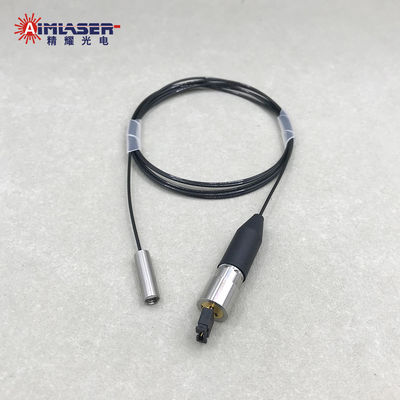

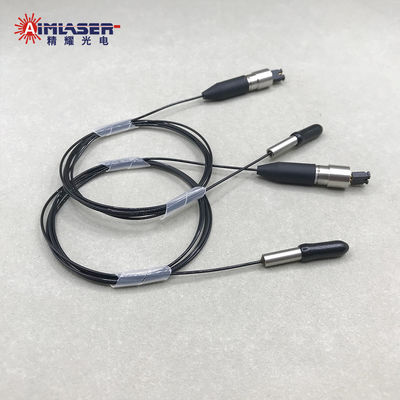

Single-Mode Pigtailed Fiber Coupled Laser Module 780nm 850nm 980nm 1064nmSingle-Mode Pigtailed Fiber Coupled Laser Module 780nm 850nm 980nm 1064nm



Specifications



ITEMS SPECIFICATIONS
Model Number Pigtailed Fiber Coupled Laser Diode Module
Wavelength 405~1064nm
Output Power 1~500mW (Customer ACC)
Laser Mode CW, TTL, Analogue Modulation,Digital Modulation
Spectral Width <2.0nm
Wavelength Shift 0.3nm
Operating Current <150mA (Customer ACC)
Operating Voltage 3.0V DC (Customer ACC)
Optical Lens Optical Coating Glass Lens
CDRH Class Class IIIb
Circuit control Auto Constant Current (Customer ACC)
Circuit Protection Static, Surge, and Reverse Polarity Protected
Working Temperature -10℃ to 50℃
Storage Temperature -20℃ to 60℃
Dimensions Φ8x22mm (Customer ACC)
Fiber Core Diameter 4um Single Mode Fiber
Cladding Diameter 125um
Fiber Length 1m
Numerical Aperture 0.13 N.A.
Connector FC/PC
Case Material Stainless Steel
Life Time 8,000Hrs



Features



1. Compact size and low power consumption.

2. High reliability and stability, long lifetime.

3. Using special LD drivers and PD feedback.

4. Using original Laser Diodes from Arima, Osram, Nicha and branded chips.

5. Conform to ROHS, FDA, IEC, SGS standards.

6. Provide a ONE year warranty and customized solutions.



Applications



The 445nm 20mW 4um Blue Single Mode Coaxial Pigtailed Fiber Coupled Laser Diode Modules are used in:



Scientific Research: Ideal for quantum optics, fluorescence excitation, and spectral analysis.

Biomedical Applications: Used in optical imaging, biosensing, and diagnostic equipment.

Industry and Manufacturing: Suitable for precision measurement, laser marking, and equipment calibration.

Display Technology: Applied in laser displays and projection systems.

Optical Communication: For alignment, testing, and signal transmission in optical systems.



Trade Terms



1) Payment: T/T, PayPal, Western Union, etc.

2) Shipment:FedEx, DHL, UPS etc.

3) Delivery Time: 5 - 20 days.

4) Shipment Terms: FOB Xi'an China



Why Choose Us



A. Over 20 years laser experience.

B. Large-scaled facility 4,500sq.m2 and over 180 professional staffs.

C. Use original LDs from Arima, Osram, Nicha and so on to guarantee reliability.

D. Producted in our ISO9001:2008 quality system factory.

E. Product conforms to FDA, IEC and GB standard.

F. Strong design and production capabilities, partners of famous brands.



FAQ



Q1: How can I ensure the products have no quality issues?

A: The products are produced in our ISO9001:2008 approved factory, and certified by FDA, IEC, and GB. All products undergo internal testing before shipping and come with a one year warranty. We respond proactively to any quality issues.



Q2: Do you support customized solutions?

A: Yes, we offer customized solutions tailored to your requirements, including various parameters.



Q3: Do you have multi mode fiber laser source?

A: Yes, we have multi mode fiber laser diode modules with TTL and Analogue Modulation, and high power fiber lasers etc.
