Single Mode Pigtailed Fiber Laser Modules 450nm 60mW With LD Driver And PD Feedback

Place of Origin China
Brand Name AIMLASER
Certification FDA, IEC
Model Number AM450SF50D1
Minimum Order Quantity 1
Price USD $20-100
Packaging Details Anti-static bag, Carton
Delivery Time 10-20 days
Payment Terms T/T, Western Union, PayPal
Supply Ability 1000pcs/month

Contact me for free samples and coupons.

WhatsApp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Product Name SingleMode Coaxial Fiber Coupled Laser Wavelength 405nm
Output Power ≤50.0mW Laser Mode CW
Operating Voltage 3.0V DC Material Black Anodized Aluminum
Connector PC/FC/SMA905/ST Fiber Core Diameter 9um Singlemode Fiber
Life Span 8,000Hrs Warranty 1 Year
Highlight

LD Driver Fiber Laser Modules

,

Fiber Laser Modules 60mW

Leave a Message
Product Description

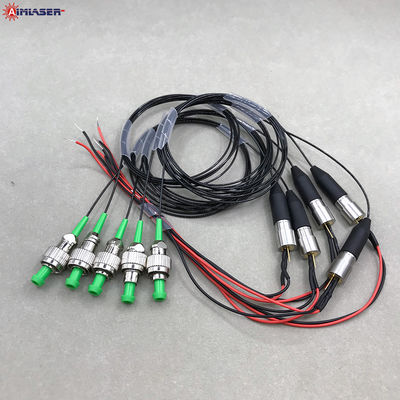

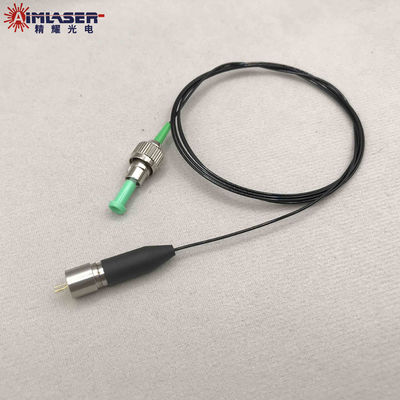

450nm 60mW Single Mode Fiber Coupled Pigtailed Laser Diode Module with LD Driver and PD Feedback


Product Description



AIMLASER (Aiming Laser Technology Co., Ltd.) provides customized signle mode Fiber Coupled Laser Diode Modules. Avaliable wavelengths include 405nm, 450nm, 520nm, 635nm, 650nm, 780nm, 850nm, 980nm, and 1064nm, with output power from 1mW to 500mW. Available fiber core diameters include 4µm, 9µm, 50µm, 62.5µm, 105µm, 125µm, 170µm, and 200µm, with FC, PC, ST or SMA905 connectors, and different fiber length.



Our fiber-coupled lasers feature a compact size, low power consumption, and low noise. Specially designed LD drivers tailored to customer applications are available, with optional PD feedback for improved reliability and stability.



Please contact us with your application and laser specifications, we can customize solutions to meet your requirements.

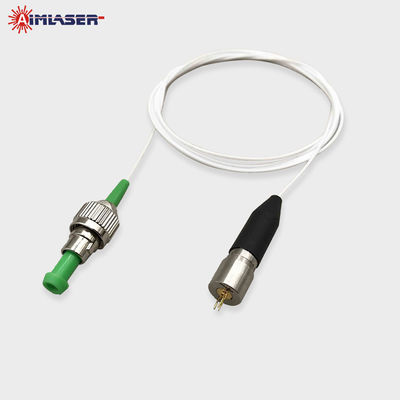

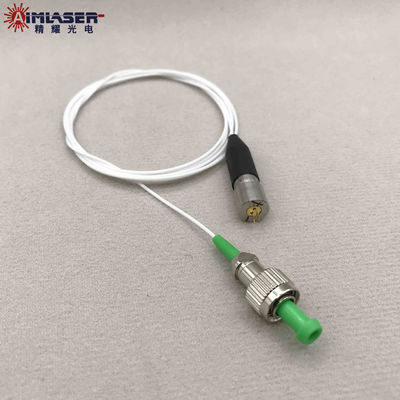

450nm 60mW Single Mode Fiber Coupled Pigtailed Laser Diode Module with LD Driver and PD Feedback450nm 60mW Single Mode Fiber Coupled Pigtailed Laser Diode Module with LD Driver and PD Feedback



Specifications



ITEMS SPECIFICATIONS
Model Number Fiber Coupled Pigtailed Laser Diode Module
Wavelength 405~1064nm
Output Power 1~500mW
Laser Mode CW, Analog Modulation, Digital Modulation
Spectral Width <2.0nm
Wavelength Shift 0.3nm
Operating Current <100mA
Operating Voltage 3.0V DC
Optical Lens Optical Coating Glass Lens
CDRH Class Class IIIb
Circuit control Auto Constant Current
Circuit Protection Static, Surge, and Reverse Polarity Protected
Working Temperature -10℃ to 50℃
Storage Temperature -20℃ to 60℃
Dimensions Φ8x22mm
Fiber Core Diameter 3~200um Single Mode Fiber
Cladding Diameter 125um
Fiber Length 1m
Numerical Aperture 0.13 N.A.
Connector FC/PC/ST/SMA905
Life Span 8,000Hrs



Features



1. Compact size and low power consumption.

2. High reliability and stability, long lifetime.

3. Using special LD drivers and PD feedback.

4. Using original Laser Diodes from Arima, Osram, Nicha and branded chips.

5. Conform to ROHS, FDA, IEC, SGS standards.

6. Provide One year warranty and customized solutions.



Applications



The 450nm 50mW 9um Blue Single Mode Coaxial Fiber Coupled Laser Sources are used in:



Biomedical applications: fluorescence excitation in microscopy, flow cytometry for cell analysis, DNA sequencing, and other bioimaging techniques.

Spectroscopy: Raman spectroscopy for material identification and analysis, laser-induced fluorescence spectroscopy.

Industrial applications: high-precision material processing such as micro-welding or cutting thin materials, laser alignment or positioning systems.

Scientific research: quantum optics experiments requiring stable, coherent blue light, optical trapping or tweezers for manipulating microscopic particles.

Optical communications: test and measurement systems for fiber-optic components, short-wavelength optical data transmission research.

Entertainment and displays: laser shows and holography systems where high brightness and color purity are essential.

● Optical alignment systems, OEM instrumentation, laser test and inspection equipment.

Trade Terms



1) Payment: T/T, PayPal, Western Union, etc.

2) Shipment:FedEx, DHL, UPS etc.

3) Delivery Time: 5 - 20 days.

4) Shipment Terms: FOB Xi'an China



Why Choose Us



A. Over 20 years laser experience.

B. Large-scaled facility 4,500sq.m2 and over 180 professional staffs.

C. Use original LDs from Arima, Osram, Nicha and so on to guarantee reliability.

D. Producted in our ISO9001:2008 quality system factory.

E. Product conforms to FDA, IEC and GB standard.

F. Strong design and production capabilities, partners of famous brands.



FAQ



Q1: How can I ensure the products have no quality issues?

A: The products are produced in our ISO9001:2008 approved factory, and certified by FDA, IEC, and GB. All products undergo internal testing before shipping and come with a one year warranty. We respond proactively to any quality issues.



Q3: What can be customized? Do you support required solutions?

A: Yes, we can customize your required wavelength, fiber core, fiber length, output power, numerical value, working voltage and connector etc.



Q3: Do you have multi mode fiber laser source?

A: Yes, we have multi mode fiber laser modules whose fiber core include 10um, 50um, 62.5um, 105um, 125um, 170um and 200um etc.



Q4: What are the driver modes customized?

A: CW or Pulse (by TTL / Analogue Modulation / Digital Modulation).



Q5: What is the package?

A: They are usually packaged in anti-static bags and cartons, which provides excellent protection.
