Mininature Laser Diode Module 650nm 1mW For Gun Laser Sight And Grip Small Laser Head
Contact me for free samples and coupons.
WhatsApp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Product Name | Mininature Red Dot Laser Beam Head | Wavelength | 650nm |
|---|---|---|---|
| Output Power | ≤1.0mW | Laser Type | CW |
| Beam Size | 10*22mm@25m | Divergence | 0.8mrad |
| Operating Voltage | 3-5V DC | Material | Full Brass |
| Dimensions | 3.3x8mm(APC Inside) | Warranty | 1 Year |
| Highlight | Laser Diode Module 650nm,Laser Diode Module 1mW,Miniature Laser Module 650nm |
||
Product Description

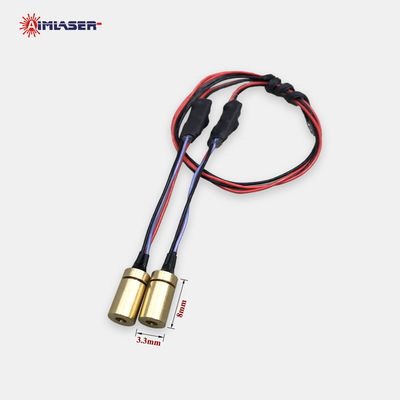

3.3x8.0mm Miniature Laser Diode Module 650nm 1mW Customizable for Gun Laser Sight and Grip Small Laser Head
Product Description
AIMLASER manufactures Mini Laser Diode Modules and offers customized solutions. Available wavelengths include 450nm, 520nm, 635nm, 650nm, 780nm, and 850nm, with output power below 5mW. Common beam size is 10x22mm@25m, and module dimensions include 3.3x8mm, 3.85x8.5mm, 4x10mm, and 6x12mm. The modules use optical glass lenses and support input voltages ranging from 2V to 5V DC.
The small laser heads feature small Size, low power consumption, compact structure, and good quality beam. They conforms to ROHS, FDA, IEC, and SGS standards, ensuring high quality and over 8,000 hours long lifetime. 1 year warranty and OEM customized solutions are provided.
These The 650nm 1mW red laser diode module subassembly with collimated beam is widely used in gun laser sights, gun laser grips, laser aiming devices, laser barcode scanners, miniature laser tools and precision instruments for laser positioning, laser alignment and laser scanning applications.
Specifications
Features
1. Compact size, Low cost, Lightweight, Low consumption.
2. Good quality beam, high precision and stability.
3. Long Lifetime and Complex Condition Design.
4. Conform to ROHS, FDA, IEC, SGS standards.
5. Provide One year warranty and customized solutions.
Applications
|
● Gun laser aiming devices |
● Laser positioning devices |
|
● Gun laser sights and laser grips |
● Laser surveying instrument |
|
● Night vision and laser rangefinder |
● Laser detection equipment |
|
● Laser alignment instrument |
● Medical Laser Instrument |
|
● Laser pointing instrument |
● Miniature Laser Tools etc. |
Package
They are usually packaged in anti-static bags and cartons, which provides excellent protection.
Trade Terms
1) Payment: T/T, PayPal, Western Union, etc.
2) Shipment:FedEx, DHL, UPS etc.
3) Delivery Time: 5 - 20 days.
4) Shipment Terms: FOB Xi'an China
Our Services
A. Over 20 years laser experience.
B. Large-scaled facility 4,500sq.m2 and over 180 professional staffs.
C. Use original LDs from Arima, Osram, Nicha and so on to guarantee reliability.
D. Strictly following ISO9001:2008 quality system.
E. Product conforms to FDA, IEC and GB standard.
F. Strong design and production capabilities, partners of famous brands.
