Coaxial Dual Beam Laser Diode Module 405nm 520nm 1 - 5mW Blue And Green Lasers

Place of Origin China
Brand Name AIMLASER
Certification FDA, IEC
Model Number AM650ML05G2
Minimum Order Quantity 1
Price USD $3-10
Packaging Details Anti-static bag, Carton
Delivery Time 5-15 days
Payment Terms T/T, Western Union, PayPal
Supply Ability 10000pcs/month

Contact me for free samples and coupons.

WhatsApp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Product Name 405nm 520nm Coaxial Dual Beam Lasers Module Wavelength 405nm 520nm
Output Power 1-5.0mW Laser Type CW
Beam Size 6x12mm@10m And 10x22mm@20m Divergence 0.6mrad
Life Span 10,000 Hours Material Brass Housing, Optical Glass Lens
Power Modulation High/Low Power Switch Warranty ONE Year
Highlight

Dual Beam Laser Diode Module

,

Laser Diode Module 405nm

Leave a Message
Product Description

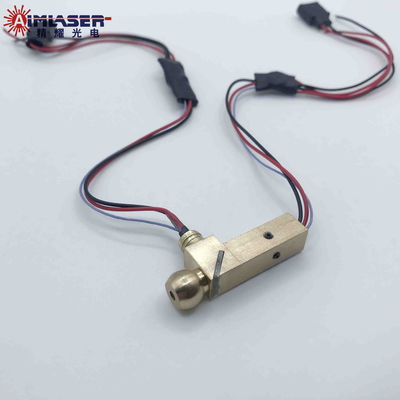

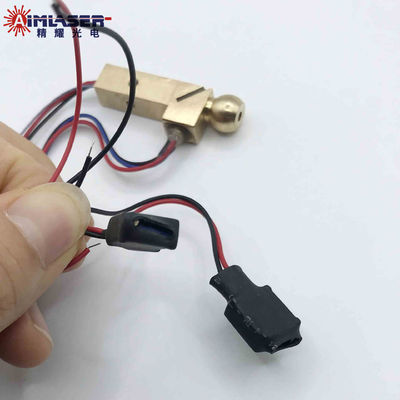

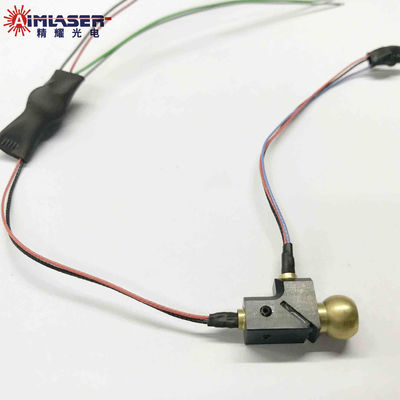

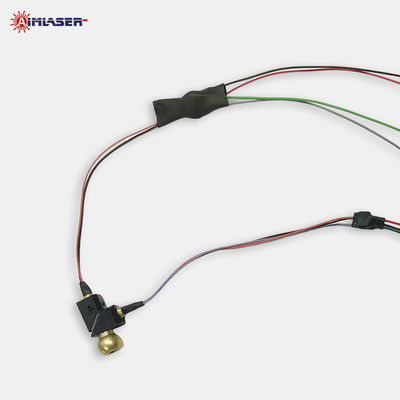

Coaxial Dual Beam Lasers Diode Module 405nm 520nm 1-5mW Blue and Green Lasers for Gun Aiming Laser Accessories



Product Description




AIMLASER manufactures Mini Coaxial Dual-Wavelength Laser Diode Modules with customizable output power, beam size, dimensions, and input voltage.



The dual-beam laser modules feature small size, low power consumption, compact structure, low cost, and good quality beams. They conform to ROHS, FDA, IEC, and SGS standards. Using high-precision and stable laser diodes with optical glass lenses, the laser heads project clear and stable laser beams, can be used for over 1,000 hours with high stability and reliability. A 1-year warranty and customized solutions are provided.



The 405nm violet-blue and 520nm green laser light combo subassemblies with collimated beams are widely used in tactical gun laser sights, gun laser grips, military firearms laser aiming devices, laser barcode scanners, miniature laser tools, and precision instruments for laser positioning, laser alignment, and laser scanning applications.

Coaxial Dual Beam Lasers Diode Module 405nm 520nm 1-5mW Blue and Green Lasers for Gun Aiming Laser AccessoriesCoaxial Dual Beam Lasers Diode Module 405nm 520nm 1-5mW Blue and Green Lasers for Gun Aiming Laser Accessories

Specifications




ITEMS

PARAMENTERS

Model Number

Violet Blue and Green Dual Beam Laser Light Combo

Wavelength and Output Power

405nm 1.0mW-5.0mW and 520nm 1.0mW-5.0mW

Laser Mode

CW

Output Aperture

Dia. 3.0mm

Beam Size

6x12mm@10m and 10x22mm@20m

Divergence

0.6mrad

Optics

Optical Glass Lens

Operating Current

405nm<80mA and 520nm <160mA

Operating Voltage

3V DC (1pc CR123A)

CDRH Class

Class IIIa

Circuit control

Auto Power Control (APC)

Power Modulation

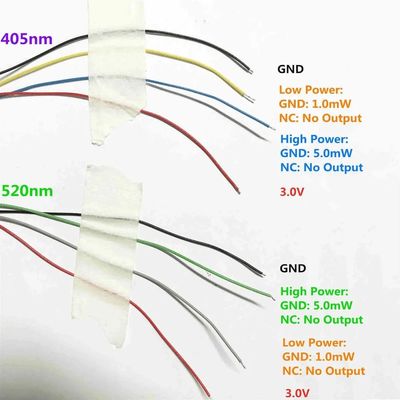

High/Low Power Switch

Circuit Protection

Static, Surge, and Reverse Polarity Protected

Working Temperature

-10℃ to 50℃

Storage Temperature

-40℃ to 80℃

Dimensions

Customized

Housing Material

Brass and Insulated Anodized Aluminum

Life Span

10,000Hrs

Features




1. Compact size, Low cost, Lightweight, Low consumption.

2. Good quality beam, long lifetime, high precision and stability.

3. Conform to ROHS, FDA, IEC, SGS standards.

4. Provide One year warranty and customized solutions.



Applications




Gun and firearms laser aiming devices

Pistols, rifles, shotguns tactical laser sights and laser grips

Mininature laser equipment etc.



Trade Terms




1) Payment: T/T, PayPal, Western Union, etc.

2) Shipment:FedEx, DHL, UPS etc.

3) Delivery Time: 5 - 20 days.

4) Shipment Terms: FOB Xi'an China



FAQ




Q1: How can I ensure the products have no quality issues?

A: We have the ISO 9001 certified factory, and our products are certified by FDA, IEC, and GB. All products undergo internal testing before shipping and come with a one year warranty. We respond proactively to any quality issues.



Q2: What can be customized? Do you support required solutions?

A: Yes, we can customize wavelength, output power, beam size, driver mode, working voltage and housing dimensions and more according to your requirements.



Q3: What is the MOQ?

A: The MOQ is 1pc..

Why Choose Us




A. Over 20 years laser experience.

B. Large-scaled facility 4,500sq.m2 and over 180 professional staffs.

C. Use original LDs from Arima, Osram, Nicha and so on to guarantee reliability.

D. Producted in our ISO9001:2008 quality system factory.

E. Product conforms to FDA, IEC and GB standard.

F. Strong design and production capabilities, partners of famous brands.

G. All products undergo internal testing before shipping



Tags: 405nm, 450nm, 520nm, 635nm, 650nm, 780nm, 850nm dual beam laser diode module, compact coaxial dual wavelength laser head, firearms laser subassembly, China, factory, supplier, provider, manufacturer, wholesale, customized, quotation, buy, purchase, bulk, free sample
