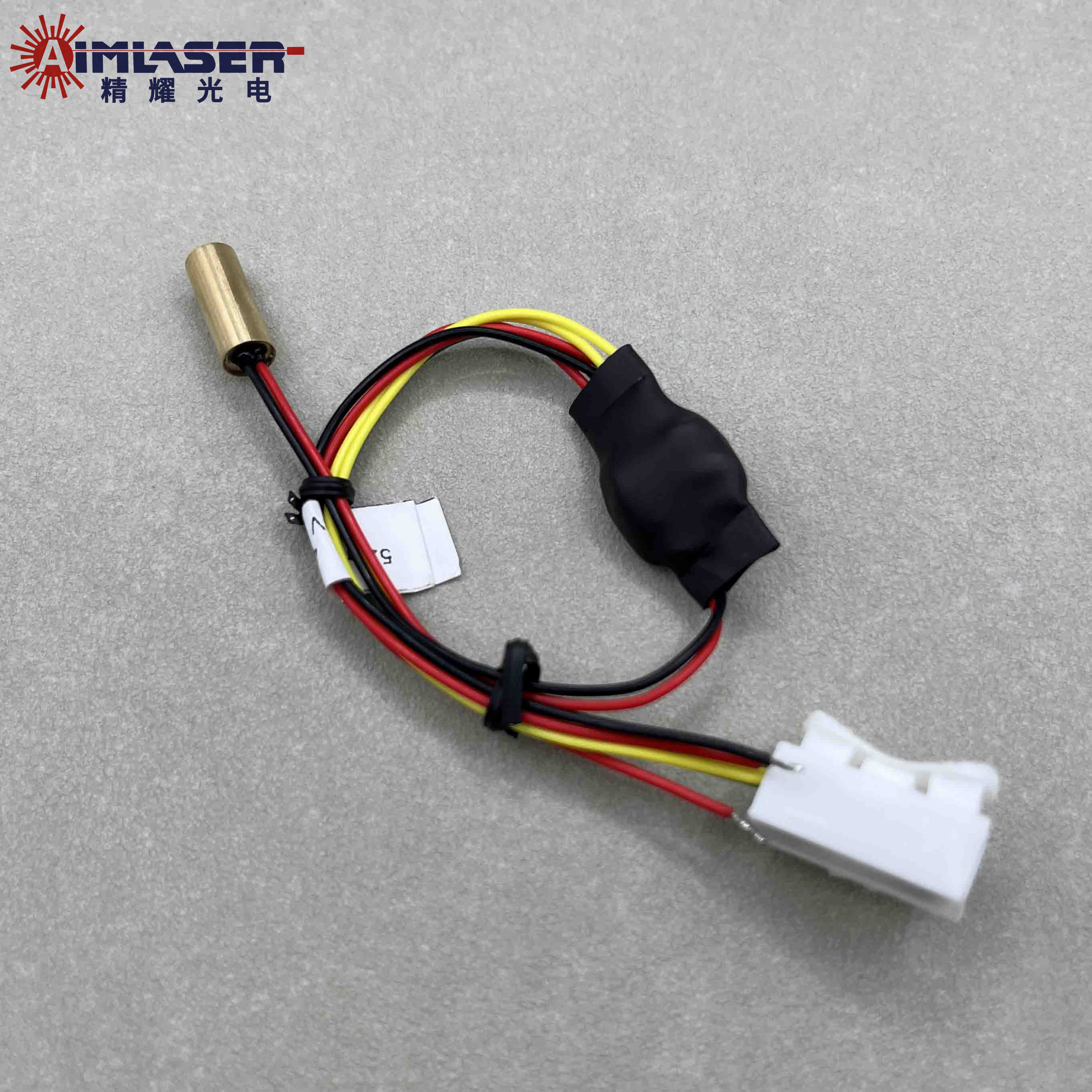

520nm 5mW 50mW Combo Mini Laser Modules For Gun Aiming Laser Devices

Place of Origin China
Brand Name AIMLASER
Certification FDA, IEC
Model Number AM520ML01+05G2
Minimum Order Quantity 10
Price USD $3-10
Packaging Details Anti-static bag, Carton
Delivery Time 5-15 days
Payment Terms T/T, Western Union, PayPal
Supply Ability 10000pcs/month

Contact me for free samples and coupons.

WhatsApp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Product Name High Low Power Combo Laser Module Wavelength 520nm
Output Power 5.0mW And 50.0W Laser Type CW
Beam Size 10x22mm@25m Divergence 0.6mrad
Operating Voltage 3V DC Material Brass Housing, Optical Glass Lens
Dimensions 6x15mm Warranty 1 Year
Highlight

Combo Mini Laser Modules

,

5mW Mini Laser Modules

,

520nm 50mW Laser Module

Leave a Message
Product Description

520nm 5mW and 50mW High Low Power Combo Laser Module for Gun Aiming Laser Devices



Product Description




The High-Low Power Laser Diode Module can project either a 5mW or 50mW green laser collimated beam, utilizing a High/Low Power Modulation Switch. It is commonly used in gun laser aiming and pointing devices, such as tactical laser sights and laser grips.



AIMLASER offers this laser head subassembly with customizable options, including wavelength, output power, beam size, dimensions, and input voltage.



Our high-low power laser diode modules feature a small size, low power consumption, compact structure, low cost, and high-quality beam. They are produced in our ISO9001:2008-certified factory and conform to ROHS, FDA, IEC, and SGS standards. Using high-precision and stable laser diodes with optical glass lenses, these laser heads project clear and stable beams with a long lifetime of over 1,000 hours, ensuring high stability and reliability. A 1-year warranty and customized solutions are also provided.

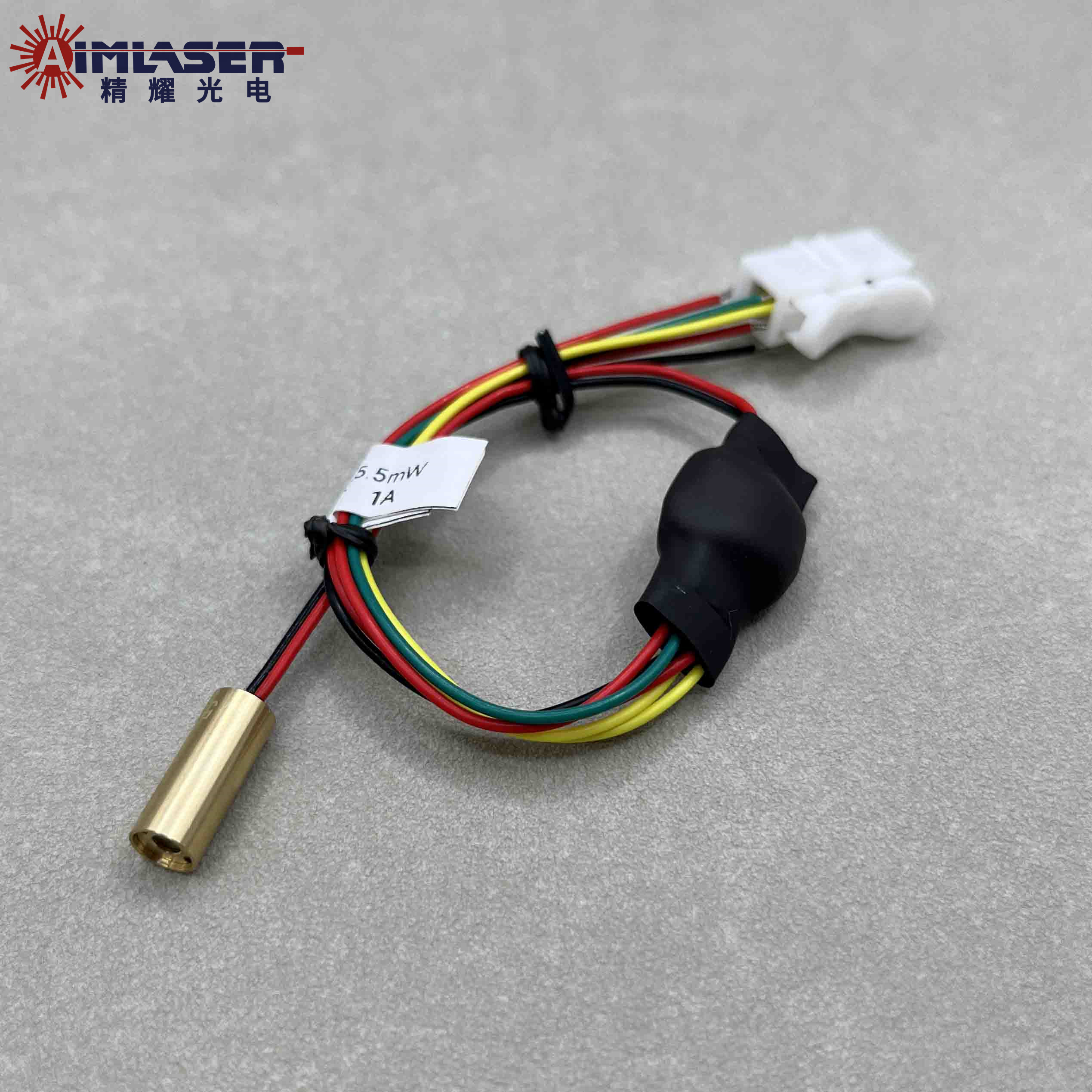

520nm 5mW and 50mW High Low Power Combo Laser Module for Gun Aiming Laser Devices520nm 5mW and 50mW High Low Power Combo Laser Module for Gun Aiming Laser Devices

Specifications




ITEMS PARAMENTERS
Model Number 520nm 1mW 5mw High Low Power Lasers
Wavelength and Output Power 520nm 1.0mW 5.0mW
Laser Mode CW
Output Aperture Dia. 3.0mm
Beam Size 10x22mm@20m
Divergence 0.6mrad
Optics Optical Glass Lens
Operating Current <80mA
Operating Voltage 3V DC
CDRH Class Class IIIa
Circuit control Auto Power Control (APC)
Power Modulation High/Low Power Switch
Circuit Protection Static, Surge, and Reverse Polarity Protected
Working Temperature -10℃ to 50℃
Storage Temperature -40℃ to 80℃
Dimensions Customized
Housing Material Brass
Life Span 10,000Hrs



Features




1. Compact size, Low cost, Lightweight, Low consumption.

2. Good quality beam, high precision and stability.

3. Long Lifetime and Complex Condition Design.

4. Conform to ROHS, FDA, IEC, SGS standards.

5. Provide One year warranty and customized solutions.



Applications




● Military firearms laser aiming devices

● Laser positioning devices

● Gun tactical laser sights and laser grips

● Laser surveying instrument

● Night vision and laser rangefinder

● Laser detection equipment

● Laser alignment measure instrument

● Medical Laser Instrument

● Laser pointing instrument

● Miniature Laser Tools etc.



Package




They are usually packaged in anti-static bags and cartons, which provides excellent protection.

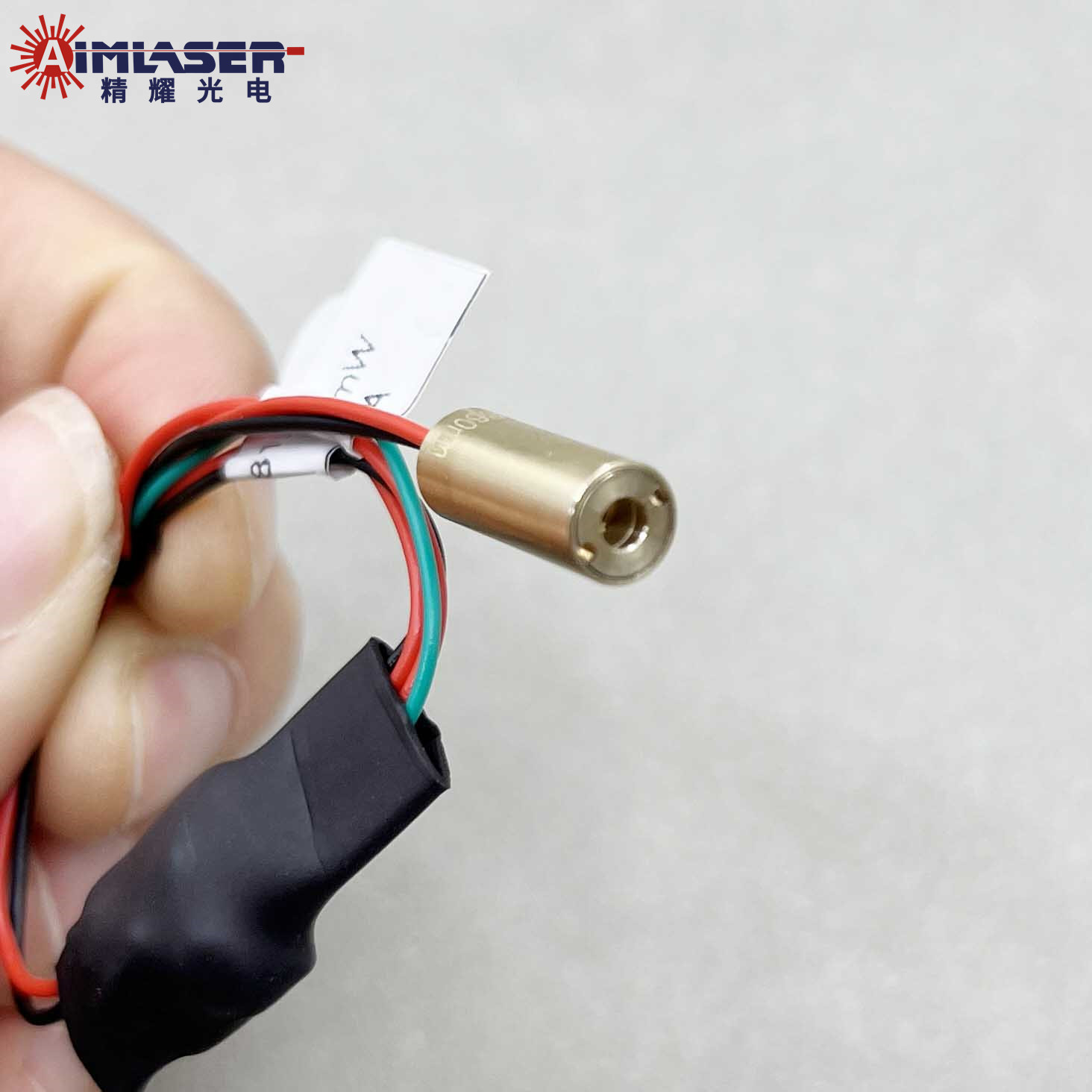

520nm 5mW and 50mW High Low Power Combo Laser Module for Gun Aiming Laser Devices

Trade Terms




1) Payment: T/T, PayPal, Western Union, etc.

2) Shipment:FedEx, DHL, UPS etc.

3) Delivery Time: 5-20 days.

4) Shipment Terms: FOB Xi'an China



FAQ




Q1: Do you have other size for small laser diode modules?

A: Yes, we provide 3.3x8mm, 3.85x8.5mm, 4x10mm, 6x12mm and customized compact miniature laser heads.



Q2: What can be customized? Do you support required solutions?

A: Yes, we can customize wavelength, output power, beam size, driver mode, working voltage and housing dimensions and more according to your requirements.



Q3: How can I ensure the products have no quality issues?

A: We have the ISO 9001 certified factory, and our products are certified by FDA, IEC, and GB. All products undergo internal testing before shipping and come with a one year warranty. We respond proactively to any quality issues.



Why Choose Us




A. Over 20 years laser experience.

B. Large-scaled facility 4,500sq.m2 and over 180 professional staffs.

C. Use original LDs from Arima, Osram, Nicha and so on to guarantee reliability.

D. Produced in our ISO9001:2008 certificed factory.

E. Product conforms to FDA, IEC and GB standard.

F. Strong design and production capabilities, partners of famous brands.

G. All products undergo internal testing before shipping.
