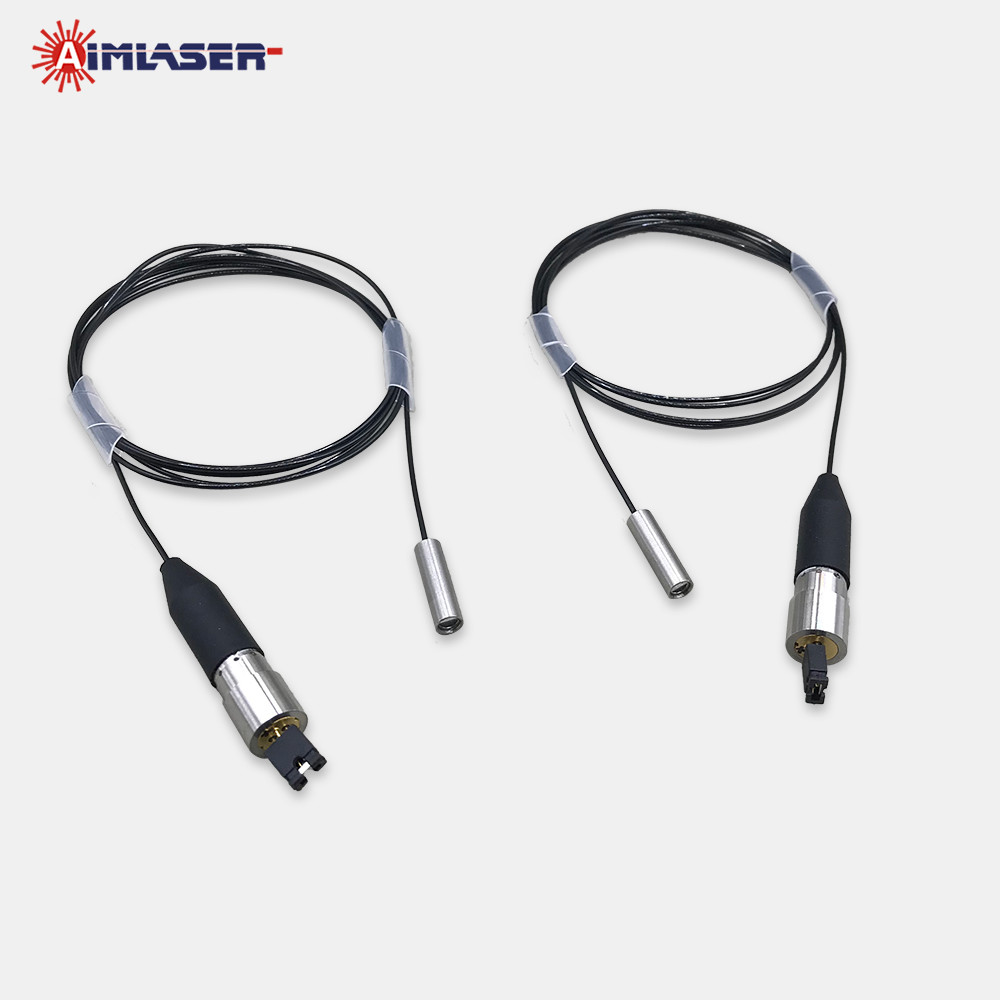

Green Coaxial Fiber Pigtailed Laser Diode Module Single Mode 520nm 30mW 4um

Place of Origin China
Brand Name AIMLASER
Certification FDA, IEC
Model Number AM520SF05D2
Minimum Order Quantity 1
Price USD $20-100
Packaging Details Anti-static bag, Carton
Delivery Time 10-20 days
Payment Terms T/T, Western Union, PayPal
Supply Ability 1000pcs/month

Contact me for free samples and coupons.

WhatsApp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Product Name 520nm 30mW 4um Single Mode Coaxial Fiber Coupled Laser Wavelength And Output Power 520nm ≤30.0mW
Laser Mode CW Operating Voltage 3.0V DC
Material Black Anodized Aluminum, Optical Glass Lens Dimensions Φ14x50mm (ACC Inside)
Connector PC FC SMA905 ST Working Temperature -10℃ To 50℃
Life Span 10,000Hrs Warranty 1 Year
Highlight

Coaxial Fiber Pigtailed Laser Diode

,

Fiber Pigtailed Laser Diode 30mW

Leave a Message
Product Description

520nm 30mW 4um Green Single Mode Coaxial Fiber Coupled Pigtailed Laser Diode Module



Product Description




AIMLASER (Aiming Laser Technology Co., Ltd.) provides customized Fiber Coupled Laser Diode Modules, also known as Fiber Pigtailed Lasers or Fiber Lasers with Pigtail. Single-mode fiber core ranges from 3µm to 9µm, while multi-mode fiber core is greater than 9µm.



Our industrial quality fiber-coupled lasers feature a compact size, low power consumption, low noise, and high beam quality. Specially designed LD drivers tailored to customer applications are available, with optional PD feedback for improved reliability and stability. Fiber pigtailed laser sources are commonly used in Machine Vision and Sensing, Industrial Inspection, Optical Communication, Biomedical Applications, and Scientific Research and Education.



Fiber with Pigtail Lasers commonly feature wavelengths such as 405nm, 450nm, 520nm, 635nm, 650nm, 780nm, 850nm, 980nm, and 1064nm, with output power from 1mW to 500mW. Available fiber core diameters include 4µm, 9µm, 50µm, 62.5µm, 105µm, 125µm, 170µm, and 200µm, with FC, PC, ST or SMA905 connectors.



Please contact us for customized solutions to meet your requirements. We can tailor the wavelength, output power, fiber core diameter and length, driver modes, connectors, and more for fiber-coupled lasers.



405nm 30mW 4um Single Mode Coaxial Fiber Coupled Pigtailed Laser Diode Module405nm 30mW 4um Single Mode Coaxial Fiber Coupled Pigtailed Laser Diode Module



Specifications






ITEMS SPECIFICATIONS
Model Number AM520SF10FC Pigtailed Fiber Coupled Laser Diode
Wavelength 520nm
Output Power ≤ 30.0mW
Laser Mode CW
Spectral Width <2.0nm
Wavelength Shift 0.3nm
Operating Current <150mA
Operating Voltage 3.0V DC
Optical Lens Optical Coating Glass Lens
CDRH Class Class IIIb
Circuit control Auto Constant Current
Circuit Protection Static, Surge, and Reverse Polarity Protected
Working Temperature -10℃ to 50℃
Storage Temperature -20℃ to 60℃
Dimensions Φ14x50mm
Fiber Core Diameter 4um Single Mode Fiber
Cladding Diameter 125um
Fiber Length 1m
Numerical Aperture 0.13 N.A.
Connector FC/PC
Life Span 8,000Hrs



Features




1. Compact size and low power consumption.

2. High reliability and stability, ultra-lower noise.

3. Special designed LD drivers based on customer applications and TEC temperature control.

4. Using original Laser Diodes from Arima, Osram, Nicha and branded chips.

5. Conform to ROHS, FDA, IEC, SGS standards.

6. Provide One year warranty and customized solutions.



Applications




The 520nm 30mW 4um Green Single Mode Coaxial Fiber Coupled Pigtailed Laser Diode Modules are used in:



● Biomedical Applications: fluorescence imaging, DNA sequencing, flow cytometry, and biosensors.
● Industrial Applications: material processing, laser marking, and inspection systems.
● Research and Development: optical sensing, spectroscopy, and experimental setups in physics and engineering.
● Consumer Electronics: high-precision alignment and optical communications.
● Environmental Monitoring: water quality analysis and atmospheric studies.



Package




They are usually packaged in anti-static bags and cartons, which provides excellent protection.

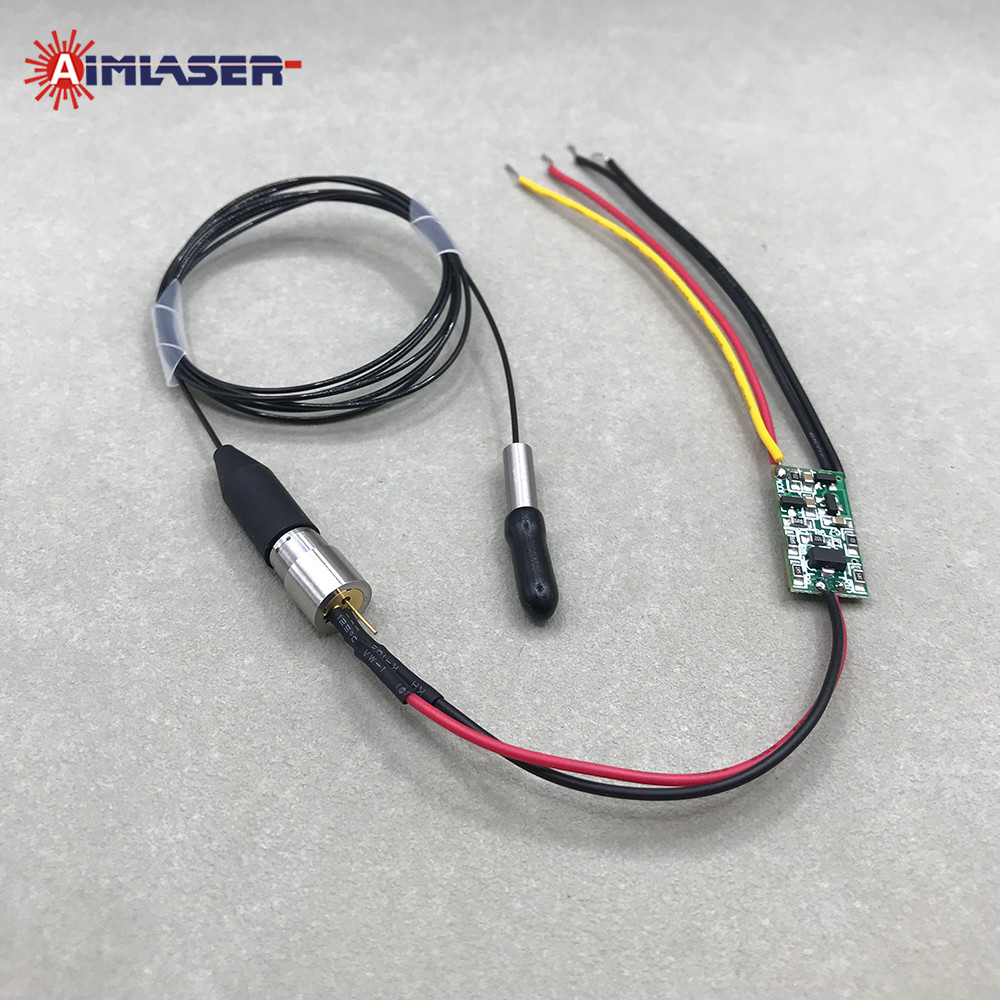

Green Coaxial Fiber Pigtailed Laser Diode Module Single Mode 520nm 30mW 4um 2



Payment & Shipment




You can pay by T/T, PayPal, Western Union, etc.

Most orders are delivered within 15-20 days.

FedEx, DHL, UPS and other are supported for your preference.

Green Coaxial Fiber Pigtailed Laser Diode Module Single Mode 520nm 30mW 4um 3



FAQ




Q1: How can I ensure the products have no quality issues?

A: We have the ISO 9001 certified factory, and our products are certified by FDA, IEC, and GB. All products undergo internal testing before shipping and come with a one year warranty. We respond proactively to any quality issues.



Q2: What can be customized? Do you support required solutions?

A: Yes, we can customize wavelength, output power, fiber core, driver mode, fiber length, working voltage and housing dimensions and more according to your requirements.



Q3: What can be customized? Do you support required solutions?

A: Yes, we can customize your required wavelength, fiber core, output power, numerical value, working voltage and connector etc.



Q4: Do you have multi mode fiber coupled laser source?

A: Yes, we have multi mode fiber coupled laser modules whose fiber core include 10um, 50um, 62.5um, 105um, 125um, 170um and 200um etc.



Q4: What are the driver modes customized?

A: CW or Pulse (by TTL / Analogue Modulation / Digital Modulation / ACC / APC).
