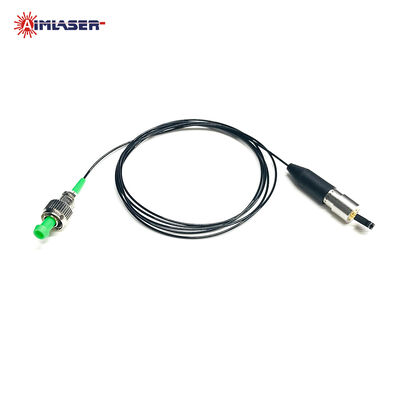

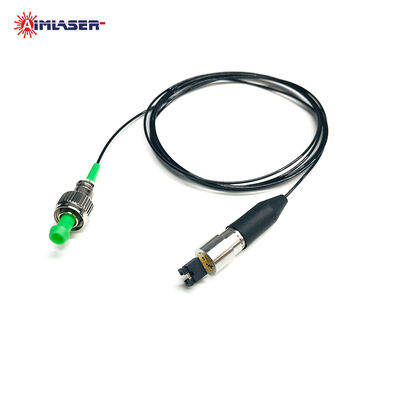

520nm 50mW Green Coaxial Single-Mode Fiber-Pigtailed Laser Diode Module with 3.5µm Fiber Core
Product Details
| Product Name | 520nm Single Mode Fiber Coupled Laser Diode Module | Wavelength | 520nm |
|---|---|---|---|
| Fiber Core | 3.5um | Output Power | 50.0mW |
| Operating Voltage | 5.0V DC | Connector | FC, SMA905, ST |
| Working Temperature | -10℃ To 50℃ | Life Span | 10,000Hrs |
| Warranty | 1 Year | ||
| Highlight | Coaxial Fiber Pigtailed Laser Diode,Fiber Pigtailed Laser Diode 30mW |
||
Product Description
AM20SF50FC
AIMLASER provides customized Fiber Coupled Laser Diode Modules, also known as Fiber Pigtailed Lasers or Fiber Lasers with Pigtail. Single-mode fiber core ranges from 3µm to 9µm, while multi-mode fiber core is greater than 9µm.
Our industrial quality fiber-coupled lasers feature a compact size, low power consumption, low noise, and high beam quality. Specially designed LD drivers tailored to customer applications are available, with optional PD feedback for improved reliability and stability. Fiber pigtailed laser sources are commonly used in Machine Vision and Sensing, Industrial Inspection, Optical Communication, Biomedical Applications, and Scientific Research and Education.
Fiber with Pigtail Lasers commonly feature wavelengths such as 405nm, 450nm, 520nm, 635nm, 650nm, 780nm, 850nm, 980nm, and 1064nm, with output power from 1mW to 500mW. Available fiber core diameters include 3µm, 3.5µm, 4µm, 9µm, 50µm, 62.5µm, 105µm, 125µm, 170µm, and 200µm, with FC, PC, ST or SMA905 connectors.
Please contact us for customized solutions to meet your requirements. We can tailor the wavelength, output power, fiber core diameter and length, driver modes, connectors, and more for fiber-coupled lasers.
Specifications
| ITEMS | SPECIFICATIONS |
| Model Number | AM520SF50FC Pigtailed Fiber Coupled Laser Diode |
| Wavelength | 520nm |
| Output Power | ≤ 30.0mW |
| Spectral Width | <2.0nm |
| Wavelength Shift | 0.05nm/℃ |
| Operating Current | <150mA |
| Operating Voltage | 3.0V DC |
| CDRH Class | Class IIIb |
| Working Temperature | -10℃ to 50℃ |
| Storage Temperature | -20℃ to 60℃ |
| Fiber Core Diameter | 3.5um Single Mode Fiber |
| Cladding Diameter | 125um |
| Fiber Length | 1m |
| Numerical Aperture | 0.13 N.A. |
| Connector | FC/PC |
| Life Span | 8,000Hrs |
Features
1. Compact size and low power consumption.
2. High reliability and stability, ultra-lower noise.
3. Special designed LD drivers based on customer applications.
4. Using original Laser Diodes from Arima, Osram, Nichia and branded chips.
5. Conform to ROHS, FDA, IEC, SGS standards.
6. Provide One year warranty and customized solutions.
Applications
The 520nm 50mW 3.5um Green Single Mode Coaxial Fiber Coupled Pigtailed Laser Diode Modules are used in:
| ● Biomedical Applications: fluorescence imaging, DNA sequencing, flow cytometry, and biosensors. | |
| ● Industrial Applications: material processing, laser marking, and inspection systems. | |
| ● Research and Development: optical sensing, spectroscopy, and experimental setups in physics and engineering. | |
| ● Consumer Electronics: high-precision alignment and optical communications. | |
| ● Environmental Monitoring: water quality analysis and atmospheric studies. |
Package
They are usually packaged in anti-static bags and cartons, which provide excellent protection.
Payment & Shipment
You can pay by T/T, PayPal, Western Union, etc.
Most orders are delivered within 15-20 days.
FedEx, DHL, UPS and other are supported for your preference.
FAQ
Q1: How can I ensure the products have no quality issues?
A: We have the ISO 9001 certified factory, and our products are certified by FDA, IEC, and GB. All products undergo internal testing before shipping and come with a one year warranty. We respond proactively to any quality issues.
Q2: What can be customized? Do you support required solutions?
A: Yes, we can customize wavelength, output power, fiber core, driver mode, fiber length, working voltage and housing dimensions and more according to your requirements.
Q3: What can be customized? Do you support required solutions?
A: Yes, we can customize your required wavelength, fiber core, output power, numerical value, working voltage and connector etc.
Q4: Do you have multi mode fiber coupled laser source?
A: Yes, we have multi mode fiber coupled laser modules whose fiber core include 10um, 50um, 62.5um, 105um, 125um, 170um and 200um etc.
Q4: What are the driver modes customized?
A: CW or Pulse (by TTL / Analogue Modulation / Digital Modulation / ACC / APC).
Why Choose Us
A. Over 20 years laser experience.
B. Large-scaled facility 4,500sq.m2 and over 180 professional staffs.
C. Use original LDs from Arima, Osram, Nicha and so on to guarantee reliability.
D. Strictly following ISO9001:2008 quality system.
E. Product conforms to FDA, IEC and GB standard.
F. Strong design and production capabilities, partners of famous brands.
