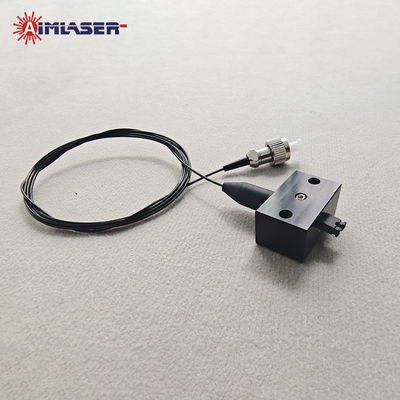

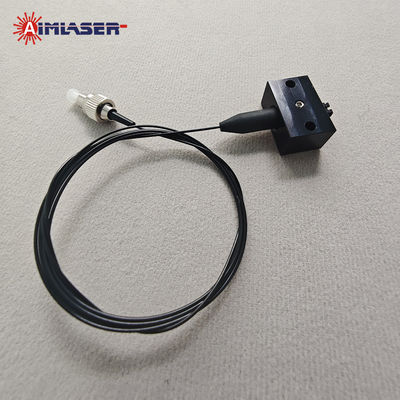

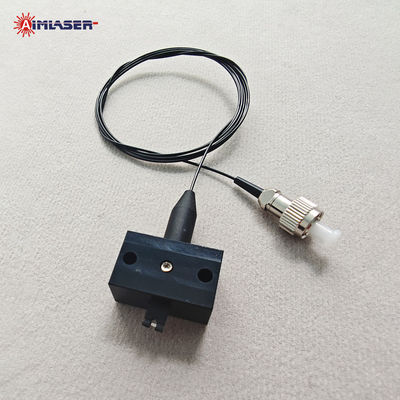

660nm 50mW 9um FC/PC SM Fiber Coupled Pigtailed Laser Diode Module with Integrated Heatsink
Contact me for free samples and coupons.
WhatsApp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Product Name | Fiber Coupled Laser | Wavelength | 660nm |
|---|---|---|---|
| Output Power | ≤50.0mW | Laser Mode | CW |
| Input Voltage | 2.5V DC | Connector | FC/PC |
| Fiber Core Diameter | 9um | Life Span | 8,000 Hours |
| Highlight | 50mW 9um Laser Diode Module,Fiber Coupled Pigtailed Laser Diode Module,Integrated Heatsink Laser Diode Module |
||
Product Description
660nm 50mW 9um FC/PC SM Fiber Coupled Pigtailed Laser Diode Module with Integrated Heatsink
Product Description
AIMLASER’s 660nm fiber-coupled laser diode module delivers a stable 50mW output through a 9µm core single-mode fiber, making it ideal for precision applications in biomedical, analytical, and industrial fields. The module features a 1-meter fiber length with a 0.9mm jacket and an FC/PC connector for reliable optical interfacing. With a numerical aperture (NA) of 0.13, it ensures efficient beam transmission and minimal signal loss. Designed for low power consumption, the module operates at 2.5V and 110mA.
AIMLASER also provides customization options for laser with fiber pigtail, including fiber type, connector, and driver integration, with optional PD control for enhanced power stability. This compact and reliable laser module is suitable for use in laser instrumentation, medical diagnostics, genome analysis, and other high-precision applications. Contact us with your specifications for tailored solutions.
Specifications
| ITEMS | SPECIFICATIONS |
| Model Number | Pigtailed Fiber Coupled Laser Diode Module |
| Wavelength | 660nm |
| Output Power | 50mW |
| Laser Mode | CW |
| Spectral Width | <2.0nm |
| Wavelength Shift | 0.3nm |
| Operating Current | <110mA |
| Operating Voltage | 2.5V DC |
| Optical Lens | Optical Coating Glass Lens |
| CDRH Class | Class IIIb |
| Circuit control | Auto Constant Current(ACC) |
| Circuit Protection | Static, Surge, and Reverse Polarity Protected |
| Working Temperature | -10℃ to 50℃ |
| Storage Temperature | -40℃ to 80℃ |
| Dimensions | Φ8x22mm |
| Fiber Core Diameter | 9um |
| Cladding Diameter | 0.9mm |
| Fiber Length | 1m |
| Numerical Aperture | 0.13 N.A. |
| Connector | FC/PC |
| Case Material | Stainless Steel |
| Life Time | 8,000Hrs |
Features
1. Compact size and low power consumption.
2. High reliability and stability, long lifetime.
3. Using special LD drivers and PD feedback.
4. Using original Laser Diodes from Arima, Osram, Nichia, and branded chips.
5. Conform to ROHS, FDA, IEC, and SGS standards.
6. Provide a one-year warranty and customized solutions.
Applications
The 660nm 50mW 9um Red Single Mode Coaxial Pigtailed Fiber Coupled Laser Diode Modules are used in:
● Biomedical analysis
● Laser alignment
● DNA sequencing
● Optical sensing
● Precision measurement
● Scientific research
Trade Terms
1) Payment: T/T, PayPal, Western Union, etc.
2) Shipment: FedEx, DHL, UPS, etc.
3) Delivery Time: 5 - 20 days.
4) Shipment Terms: FOB Xi'an, China
Why Choose Us
A. Over 20 years of laser experience.
B. Large-scale facility 4,500sq.m2 and over 180 professional staffs.
C. Use original LDs from Arima, Osram, Nicha and so on to guarantee reliability.
D. Produced in our ISO9001:2008 quality system factory.
E. Product conforms to FDA, IEC and GB standard.
F. Strong design and production capabilities, partners of famous brands.
