650nm 5mW Super Small Size Red Dot Laser Diode Module with External Driver and Spring for Gun Aiming Laser Sight Laser Part
Contact me for free samples and coupons.
WhatsApp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Product Name | Mini Infrared Laser Diode Module | Wavelength | 850nm |
|---|---|---|---|
| Output Power | ≤1.0mW | Laser Type | CW |
| Beam Size | 10*22mm@20m | Divergence | 0.8mrad |
| Operating Voltage | 3-5V DC | Material | Full Brass |
| Dimensions | 4x10mm | Warranty | 1 Year |
Product Description
650nm 5mW Super Small Red Dot Laser Diode Module with External Driver and Spring for Gun Aiming Laser Sight Laser Part
Product Description

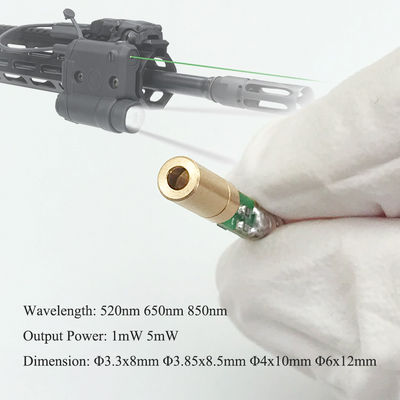

Compact mini laser diode modules are widely used in firearms tactical laser sight and light combo, pistol laser grips, night vision devices, laser rangefinders, and industrial military medical laser pointing, aiming, positioning, locating, surveying, etc.
AIMLASER manufactures customized small-size laser heads with various specifications:
• Wavelengths: 405nm, 520nm, 635nm, 650nm, 780nm, 850nm
• Output Power: 1mW, 5mW, 10mW, 30mW
• Dimensions: Φ3.3×8mm, Φ3.85×8.5mm, Φ4×10mm, Φ6×12mm, Φ6×15mm
These miniature laser modules feature a compact structure, low power consumption, and cost-effective design. We use original laser diodes and optical glass lenses; they can work stably for more than 8,000 hours, with a 1-year warranty and FDA, IEC certifications provided.

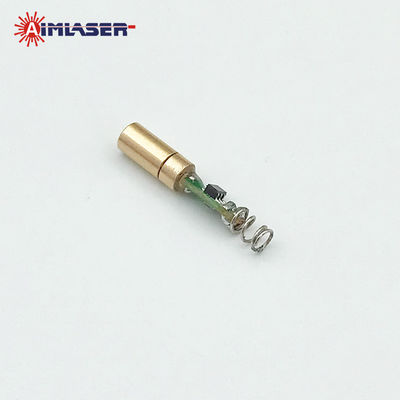

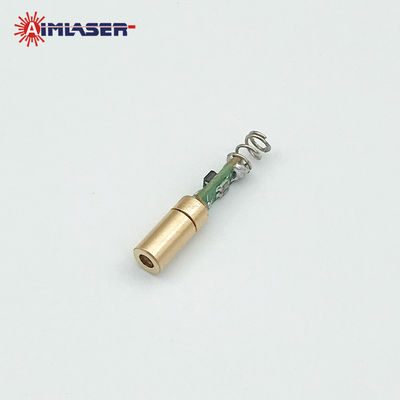

The AM650L10G1 is a red mini laser module subassembly with collimated beam. The maximum laser output power is 5.0mW at 650nm. We also provide custom-developed finished products, including laser sight + light combinations, laser rangefinders, and night vision solutions.
Specifications
|
ITEMS |
PARAMENTERS |
|
Model Number |
AM650L10G1 Red Mini Laser Diode Module |
|
Wavelength |
650nm |
|
Output Power |
≤5.0mW |
|
Laser Mode |
CW |
|
Beam Size |
16x22mm@20m |
|
Divergence |
0.8mrad |
|
Optics |
Optical Glass Lens |
|
Operating Current |
<20mA |
|
Operating Voltage |
3-5V DC |
|
CDRH Class |
Class IIIa |
|
Circuit control |
Auto Power Control (APC) |
|
Circuit Protection |
Static, Surge, and Reverse Polarity Protected |
|
Working Temperature |
-10℃ to 50℃ |
|
Storage Temperature |
-20℃ to 60℃ |
|

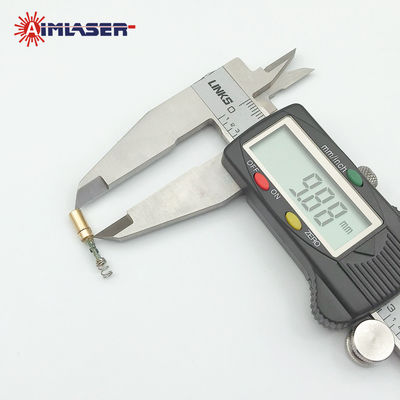

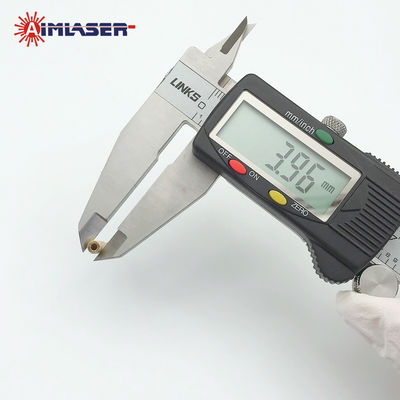

Dimensions |
Φ4x10mm |
|
Housing Material |
Brass |
|
Life Span |
≥8,000Hrs |
Features
1. Compact size, low consumption, lightweight.
2. Good quality beam, high precision and stability, long lifetime
3. Conform to ROHS, FDA, IEC, and SGS standards.
4. Provide a one-year warranty and customized solutions.
Applications
|
● Firearms laser aiming devices |
● Laser locating devices |
|
● Gun laser sights and laser grips |
● Laser surveying instrument |
|
● Night vision and laser rangefinder |
● Laser detection equipment |
|
● Laser alignment instrument |
● Medical laser instrument |
|
● Laser pointing instrument |
● Mini laser tools etc. |
Package
They are usually packaged in anti-static bags and cartons, which provide excellent protection.
Trade Terms
1) Payment: T/T, PayPal, Western Union, etc.
2) Shipment: FedEx, DHL, UPS etc.
3) Delivery Time: 5 - 20 days.
4) Shipment Terms: FOB Xi'an China
Our Services
A. Over 20 years of laser experience.
B. Large-scale facility 4,500 sq.m2 and over 180 professional staff.
C. Use original LDs from Arima, Osram, Nich, and so on to guarantee reliability.
D. Strictly following ISO9001:2008 quality system.
E. Product conforms to FDA, IEC and GB standards.
F. Strong design and production capabilities, partners of famous brands.
Tags: 650nm 1mw 5mw mini laser diode modules, miniature laser head manufacture, small compact laser supplier, blue green red IR(infrared) laser beam
