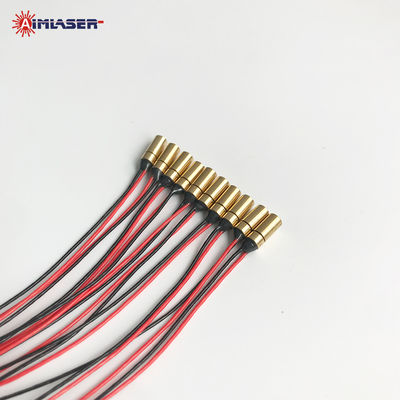

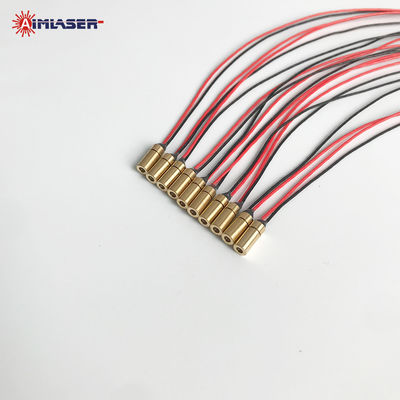

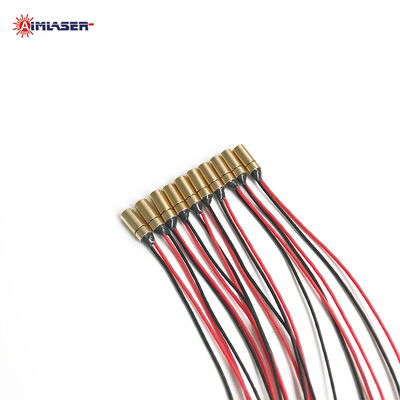

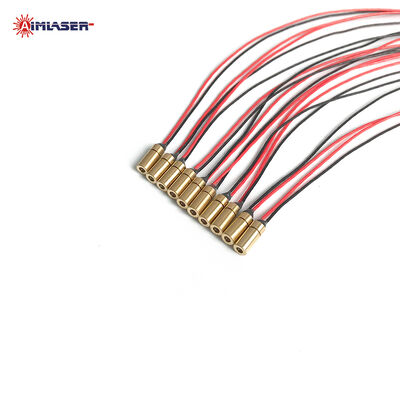

850nm 1mW 4mm*10mm Laser Diode Module for Night Vision Smallest Mini IR Laser Pointing Gun Laser Sight
Contact me for free samples and coupons.
WhatsApp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Product Name | Mini Infrared Laser Diode Module | Wavelength | 850nm |
|---|---|---|---|
| Output Power | ≤1.0mW | Laser Type | CW |
| Beam Size | 10*22mm@20m | Divergence | 0.8mrad |
| Operating Voltage | 3-5V DC | Material | Full Brass |

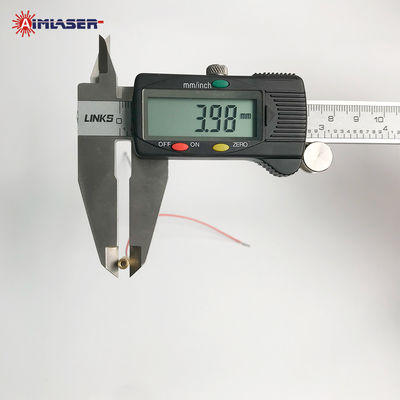

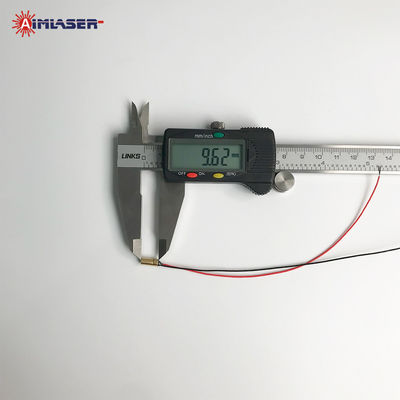

| Dimensions | 4x10mm | Warranty | 1 Year |
Product Description
850nm 1mW 4mm*10mm Laser Diode Module for Night Vision Smallest Mini IR Laser Head Gun Laser Sight
Product Description
AIMLASER manufactures compact mini laser diode modules with customized solutions. Available wavelengths include 450nm, 520nm, 635nm, 650nm, 780nm, and 850nm, with output power ranging from 1mW to 5mW. Miniature laser head housings are available in various sizes, such as 3.3×8mm, 3.85×8.5mm, 4×10mm, and 6×12mm, and operate at voltages from 3V to 5V DC. We offer a variety of module configurations, including options with pins, springs, wires, and external drivers.
Our miniature laser modules feature a compact structure, low power consumption, and high reliability. We use original laser diodes from leading brands such as Arima, Osram, and Nichia, as well as branded ICs and optical glass lenses. All modules comply with ROHS, FDA, IEC, and SGS standards, ensuring stable performance and a lifespan of over 8,000 hours. FDA and IEC certifications are available, and we provide a one-year warranty.
The 850nm 1mW infrared laser diode module subassembly emits a collimated beam and is widely used in gun laser sights, laser grips, firearm aiming devices, night vision equipment, barcode scanners, miniature laser tools, and precision instruments for laser positioning, alignment, and scanning applications.
Specifications
|
ITEMS |
PARAMENTERS |
|
Model Number |
AM850ML01G2 Infrared Mini Laser Diode Module |
|
Wavelength |
850nm |
|
Output Power |
≤1.0mW |
|
Laser Mode |
CW |
|
Beam Size |
16x22mm@20m |
|
Divergence |
0.8mrad |
|
Optics |
Optical Glass Lens |
|
Operating Current |
<20mA |
|
Operating Voltage |
3-5V DC |
|
CDRH Class |
Class IIIa |
|
Circuit control |
Auto Power Control (APC) |
|
Circuit Protection |
Static, Surge, and Reverse Polarity Protected |
|
Working Temperature |
-10℃ to 50℃ |
|
Storage Temperature |
-20℃ to 60℃ |
|
Dimensions |
Φ3.3x8mm, Φ4x10mm, Φ6x12mm, Φ6x15mm |
|
Housing Material |
Brass |
|
Life Span |
≥8,000Hrs |
Features
1. Compact size, low consumption, lightweight.
2. Good quality beam, high precision and stability, long lifetime
3. Conform to ROHS, FDA, IEC, and SGS standards.
4. Provide a one-year warranty and customized solutions.
Applications
|
● Firearms laser aiming devices |
● Laser locating devices |
|
● Gun laser sights and laser grips |
● Laser surveying instrument |
|
● Night vision and laser rangefinder |
● Laser detection equipment |
|
● Laser alignment instrument |
● Medical laser instrument |
|
● Laser pointing instrument |
● Mini laser tools etc. |
Package
They are usually packaged in anti-static bags and cartons, which provide excellent protection.
Trade Terms
1) Payment: T/T, PayPal, Western Union, etc.
2) Shipment: FedEx, DHL, UPS etc.
3) Delivery Time: 5 - 20 days.
4) Shipment Terms: FOB Xi'an China
Our Services
A. Over 20 years of laser experience.
B. Large-scale facility 4,500 sq.m2 and over 180 professional staff.
C. Use original LDs from Arima, Osram, Nich,a and so on to guarantee reliability.
D. Strictly following ISO9001:2008 quality system.
E. Product conforms to FDA, IEC and GB standards.
F. Strong design and production capabilities, partners of famous brands.
