Small IR Laser Module 850nm 1mW 5mW 3~5V Φ4x10mm Φ6x12mm for Gun Laser Grips and Night Vision
Contact me for free samples and coupons.
WhatsApp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Product Name | Small IR Laser Diode Module | Wavelength | 850nm |
|---|---|---|---|
| Output Power | ≤5.0mW | Laser Type | CW |
| Beam Size | 10*22mm@25m | Divergence | 0.8mrad |
| Operating Voltage | 3-5V DC | Material | Full Brass |
| Dimensions | Φ3.3x8mm, Φ4x10mm, Φ6x12mm, Φ6x15mm | Warranty | 1 Year |
| Highlight | Φ6x12mm Small IR Laser Module,5mW Small IR Laser Module,3~5V Small IR Laser Module |
||
Product Description

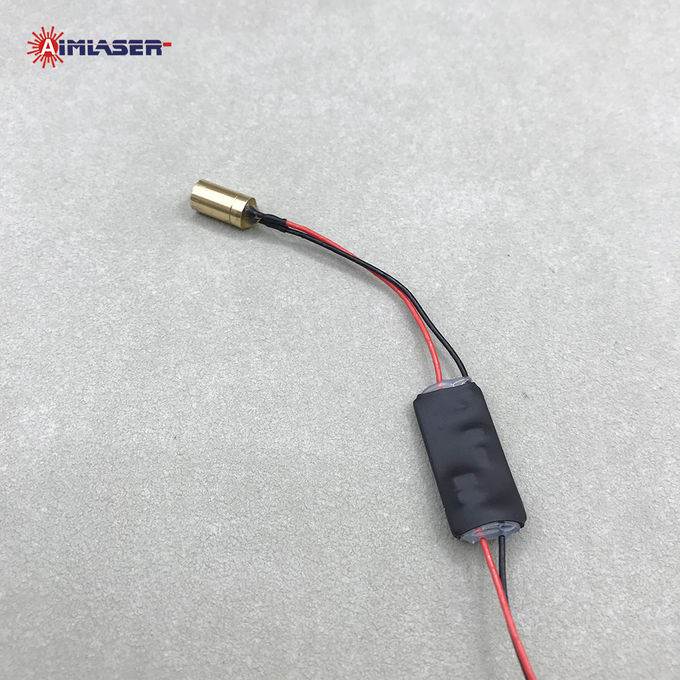

Small IR Laser Module 850nm 1mW 5mW 3~5V Φ4x10mm Φ6x12mm for Gun Laser Grips and Night Vision
Product Description
AIMLASER offers small and mini laser diode modules with customized solutions. Available wavelengths include 450nm, 520nm, 635nm, 650nm, 780nm, and 850nm, with output power ranging from 1-5mW. The compact laser head housings come in various sizes, such as 3.3×8mm, 3.85×8.5mm, 4×10mm, and 6×12mm. These modules feature optical glass lenses and operate on input voltages of 3V to 5V DC.
Our miniature laser modules are designed for small size, low power consumption, and a compact structure while delivering a high-quality beam. They comply with ROHS, FDA, IEC, and SGS standards, ensuring stable performance and a lifespan of over 8,000 hours. FDA and IEC certifications are available, along with a one-year warranty.
The 850nm 5mW infrared laser diode module, featuring a collimated beam, is widely used in gun laser sights, laser grips, laser aiming devices, night vision systems, laser barcode scanners, miniature laser tools, and precision instruments for laser positioning, alignment, and scanning applications.
Specifications
|
ITEMS |
PARAMENTERS |
|
Model Number |
AM650ML01G2 Red Dot Mini Laser Diode Module |
|
Wavelength |
850nm |
|
Output Power |
≤5.0mW |
|
Laser Mode |
CW |
|
Beam Size |
16x22mm@20m |
|
Divergence |
0.8mrad |
|
Optics |
Optical Glass Lens |
|
Operating Current |
<50mA |
|
Operating Voltage |
3-5V DC |
|
CDRH Class |
Class IIIa |
|
Circuit control |
Auto Power Control (APC) |
|
Circuit Protection |
Static, Surge, and Reverse Polarity Protected |
|
Working Temperature |
-10℃ to 50℃ |
|
Storage Temperature |
-20℃ to 60℃ |
|
Dimensions |
Φ3.3x8mm, Φ4x10mm, Φ6x12mm, Φ6x15mm |
|
Housing Material |
Full Brass |
|
Life Span |
≥8,000Hrs |
Features
1. Compact size, low consumption, lightweight.
2. Good quality beam, high precision and stability, long lifetime
3. Conform to ROHS, FDA, IEC, SGS standards.
4. Provide One year warranty and customized solutions.
Applications
|
● Gun laser aiming devices |
● Laser positioning devices |
|
● Gun laser sights and laser grips |
● Laser surveying instrument |
|
● Night vision and laser rangefinder |
● Laser detection equipment |
|
● Laser alignment instrument |
● Medical Laser Instrument |
|
● Laser pointing instrument |
● Miniature Laser Tools etc. |
Package
They are usually packaged in anti-static bags and cartons, which provide excellent protection.
Trade Terms
1) Payment: T/T, PayPal, Western Union, etc.
2) Shipment: FedEx, DHL, UPS etc.
3) Delivery Time: 5 - 20 days.
4) Shipment Terms: FOB Xi'an China
Our Services
A. Over 20 years of laser experience.
B. Large-scaled facility 4,500sq.m2 and over 180 professional staff.
C. Use original LDs from Arima, Osram, Nicha and so on to guarantee reliability.
D. Strictly following ISO9001:2008 quality system.
E. Product conforms to FDA, IEC and GB standards.
F. Strong design and production capabilities, partners of famous brands.
