405nm - 1550nm Aspheric Lenses Collimator With Tilted End Fiber

  • 405nm - 1550nm Aspheric Lenses Collimator With Tilted End Fiber
  • 405nm - 1550nm Aspheric Lenses Collimator With Tilted End Fiber
Place of Origin China
Brand Name AIMLASER
Certification FDA, IEC
Model Number ALFC405
Minimum Order Quantity 1
Packaging Details Anti-static bag, Carton
Delivery Time 10-20 days
Payment Terms T/T, Western Union, PayPal
Supply Ability 1000pcs/month

Contact me for free samples and coupons.

WhatsApp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Product Name Aspheric Lenses Collimator With Fiber Wavelength 405nm 450nm 525nm 635nm 650nm 780nm 850nm 980nm 1064nm 1310nm 1550nm
Bandwith ±5nm Connector FC/PC FC/APC SMA905
Fibe Type 405HP, 460HP, 630HP, 780HP, Hi1060, Smf-28e Package Dia. Ø9mm
Transmittance >90%
Highlight

1550nm Aspheric Lenses Collimator

,

405nm Aspheric Lenses Collimator
Leave a Message
Product Description

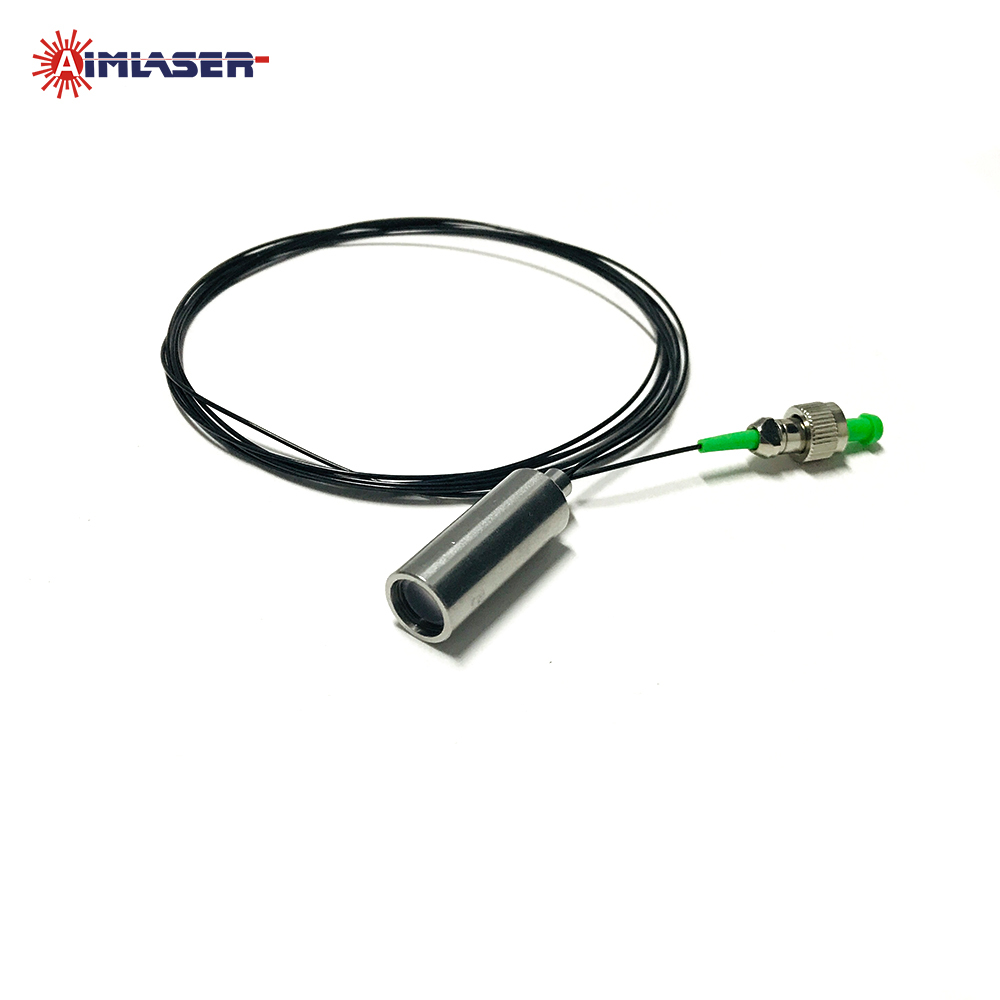

405nm-1550nm Aspheric Lenses Collimator with Tilted End Fiber



Aspheric Lenses Collimator



AIMLASER provides Aspheric Lenses Collimators with Fiber, offering wavelengths including 405nm, 450nm, 520nm, 635nm, 780nm, 850nm, 980nm, 1064nm, 1310nm, and 1550nm. Customization options are available to meet specific requirements, such as waist beam size, divergence angle, and connector types (e.g., FC/PC, FC/APC, SMA905).

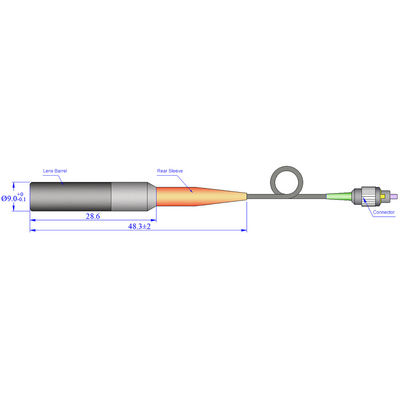

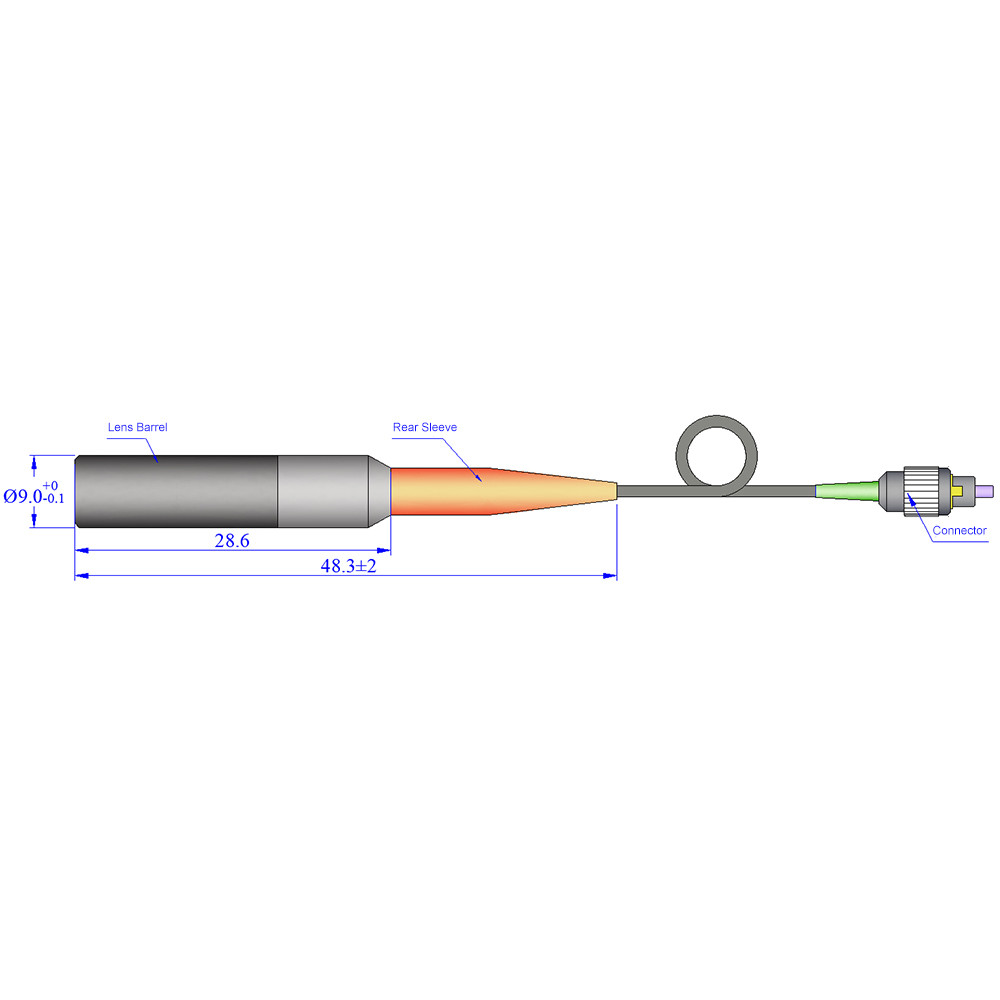

The Aspheric Lenses Collimator with Fiber features a compact design with an angled fiber tail and a precisely adjusted aspheric lens, ensuring high Gaussian beam quality and excellent collimation properties. Both the lens and fiber surfaces are coated with anti-reflective coatings, significantly reducing back reflection at the output end and minimizing optical link noise.



● Long-focal-length collimators utilize a bent housing design to correct the output beam deviation caused by the angled fiber tail.
● Short-focal-length collimators, where the output beam deviation from the angled fiber tail is negligible, feature a straight-through housing design.

​405nm-1550nm Aspheric Lenses Collimator with Tilted End Fiber405nm-1550nm Aspheric Lenses Collimator with Tilted End Fiber

Specifications



Wavelength Bandwidth Waist Beam Size Divergence Angle NA EFL Pakage Dia. Fiber Type Connector Transmittance
405nm ±5nm 0.85mm 0.06°+0.01° 0.25 4.45mm Φ9.0mm 405HP FCPC
FC/APC
Sma905		 >90%
405nm ±5nm 2.01mm 0.02°+0.01° 0.25 10.67mm Φ9.0mm
405nm ±5nm 3.6mm 0.015°+0.01° 0.15 17.71mm Φ9.0mm
450mm ±5nm 0.82mm 0.05°+0.01° 0.25 4.50mm Φ9.0mm 460HP
450mm ±5nm 2.0mm 0.02°+0.01° 0.24 10.77mm Φ9.0mm
450mm ±5nm 3.0mm 0.015°+0.01° 0.15 17.88mm Φ9.0mm
520nm ±5nm 0.84mm 0.05°+0.01° 0.25 4.55mm Φ9.0mm
520nm ±5nm 2.1mm 0.02°+0.01° 0.24 10.87mn Φ9.0mm
520mm ±5nm 3.2mm 0.015°+0.01° 0.15 18.02mm Φ9.0mm
635nm ±5nm 0.86mm 0.05°+0.01° 0.24 4.59mm Φ9.0mm 630HP
635nm ±5nm 2.06mm 0.02°+0.01° 0.24 10.96mm Φ9.0mm
635nm ±5nm 3.5mm 0.015°+0.01° 0.15 18.14mm Φ9.0mm
780mm ±5nm 1.0mm 0.06°+001 0.24 4.63mm Φ9.0mm 780HP
780mm ±5nm 2.4mm 0.026°+0.01° 0.24 11.06mm Φ9.0mm
780mm ±5nm 4.0mm 0.01°+0.01° 0.15 18.33mm Φ9.0mm
850nm ±5nm 1.0mm 0.06°+0.01° 0.24 4.64mm Φ9.0mm
850nm ±5nm 2.41mm 0.03°+0.01° 0.24 11.10mm Φ9.0mm
850nm ±5nm 3.8mm 0.02°+0.01° 0.15 18.45mm Φ9.0mm
980nm ±5nm 1.0mm 0.07°+0.01° 0.24 4.66mm Φ9.0mm Hi1060
980nm ±5nm 2.4mm 0.03°+0.01° 0.24 11.16mm Φ9.0mm
1064nm ±5nm 4.0mm 0.02°+0.01° 0.15 18.52mm Φ9.0mm
1064nm ±5nm 1.0mm 0.08°+0.01° 0.24 4.67mm Φ9.0mm
1064mm ±5nm 2.4mm 0032°+0.01° 0.24 11.18mm Φ9.0mm
1064nm ±5nm 3.8mm 0.02° +0.01° 0.15 18.58mm Φ9.0mm
1310mm ±5nm 0.84mm 0.11°+0.01°' 0.24 4.70mm Φ9.0mm Smf-28e
1310nm ±5nm 2.04mm 0.047°+0.01° 0.23 11.25mm Φ9.0mm
1310mm ±5nm 3.35mm 0.029°+0.01° 0.15 18.67mm Φ9.0mm
1550mm ±5nm 0.87mm 0.11°+0.01°' 0.24 4.74mm Φ9.0mm Smf-28e
1550mm ±5nm 2.10mm 0.053°+0.01° 0.23 11.31mm Φ9.0mm
1550mm ±5nm 3.4mm 0.032°+0.01° 0.15 18.75mm Φ9.0mm

Applications



The 405nm, 450nm, 520nm, 635nm, 780nm, 850nm, 980nm, 1064nm, 1310nm, and 1550nm Aspheric Lenses Fiber Collimator is used in:



● Optical Communication: Fiber coupling and beam collimation.
● Laser Systems: Precision cutting, welding, and marking.
● Sensing and Detection: Fiber sensors, LiDAR, and rangefinders.
● Spectroscopy: Raman, fluorescence, and absorption.





Trade Terms



1) Payment: T/T, PayPal, Western Union, etc.

2) Shipment: FedEx, DHL, UPS etc.

3) Delivery Time: 5 - 20 days.

4) Shipment Terms: FOB Xi'an China.

5) Warranty: One year.



Why Choose Us



A. Over 20 years of laser experience.

B. Large-scaled facility 4,500sq.m2 and over 180 professional staff.

C. Use original LDs from Arima, Osram, Nicha and so on to guarantee reliability.

D. Strictly following ISO9001:2008 quality system.

E. Product conforms to FDA, IEC and GB standards.

F. Strong design and production capabilities, partners of famous brands.
