360 Degree Red and Green Laser Level Module Laser Circle Beam Measuring Detector Scanner
Contact me for free samples and coupons.
WhatsApp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Product Name | 650nm 360 Degree Red Laser Line Module | Output Power | ≤1.0mW |
|---|---|---|---|
| Line Width | ≤2.0mm@5m | Line Accuracy | ≤1.0mm@5m |
| DOF | 1m | Dimension | Φ12x22mm |
| Life Span | 8,000Hrs | Warranty | 1 Year |
| Highlight | 360 Degree Laser Level Module,Green Laser Level Module |
||
Product Description

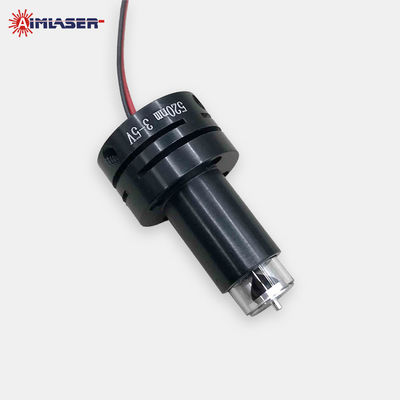

360 Degree Laser Level Module Red and Green Self-Leveling Laser Circle Beam Measuring Detector Scanner
Product Description

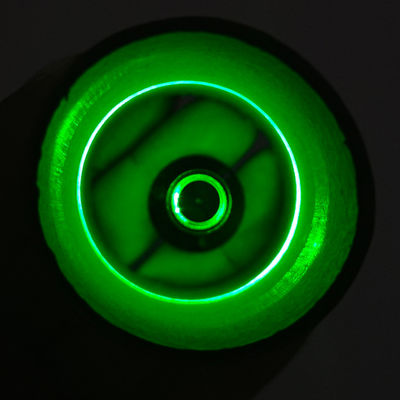

AIMLASER provides customized red and green 360 degree laser level modules, with different wavelengths, output power, line width, and dimensions. The laser projector emits a continuous laser circle beam using high-precision optical components, providing full 360-degree coverage.
Our laser module has stable and accurate beam projection, making it suitable for demanding alignment, measuring, scanning, and self-leveling tasks in various industrial environments. They are used for floor leveling, wall tiling, ceiling installation, cabinetry alignment, and pipeline layout, and as the laser detector and scanner tool. Its 360° laser projection allows users to perform accurate measurements and alignment for construction, renovation, and industrial applications, improving efficiency and precision.
The AM650R100G1 is a 360 degree red line laser generator, The maximum laser output power is 1.0 mW at 650nm.
Specifications
|
ITEMS |
SPECIFICATIONS |
|
Model Number |
360 Degree Red Laser Line Projector |
|
Wavelength |
650nm |
|
Output Power |
≤1.0mW |
| Output Power Ratio | ≤5:1 |
|
Line Width |
≤2.0mm@5m |
|
Line Accuracy |
≤1.0mm@5m |
|
Fan Angle |
360° |
| DOF | 1m |
|
Optics |
Optical Glass Lens |
|
Operating Current |
<100mA |
|
Operating Voltage |
3-5V or 12V or 24V DC |
|
CDRH Class |
Class IIIb |
|
Circuit control |
Auto Power Control (APC) |
|
Circuit Protection |
Static, Surge, and Reverse Polarity Protected |
|
Working Temperature |
-10℃ to 50℃ |
|
Storage Temperature |
-40℃ to 80℃ |
|
Dimensions |
Φ12x22mm (PCB Inside) |
|
Housing Material |
Black Anodized Aluminum |
|
Life Span |
8,000Hrs |
Features
1. Compact size, long Lifetime, easy mounting.
2. High reliability and stability, high brightness.
3. High quality laser diode and optical glass lens
4. Conform to ROHS, FDA, IEC, and SGS standards.
5. Provide ONE year warranty and customized solutions.
Applications
The 650nm 1mW 360 Degree Red Line Laser Level Module is used in:
● Floor leveling and wall tiling
● Ceiling installation and cabinetry alignment
● Pipeline layout and calibration
● Construction and renovation projects
● Industrial alignment and positioning tasks
● Laser Line Maker and Laser Alignment Systems
● Laser Tape Measurer and Laser Distance Measurer
● 3D Laser Scanner and Laser Survey Instrument
● Self-Leveling Laser Tools and Laser Measuring Tools
Trade Terms
1) Payment: T/T, PayPal, Western Union, etc.
2) Shipment: FedEx, DHL, UPS etc.
3) Delivery Time: 5 - 20 days.
4) Shipment Terms: FOB Xi'an China
Why Choose Us
A. Over 20 years laser experience.
B. Large-scaled facility 4,500sq.m2 and over 180 professional staffs.
C. Use original LDs from Arima, Osram, Nicha and so on to guarantee reliability.
D. Strictly following ISO9001:2008 quality system.
E. Product conforms to FDA, IEC and GB standard.
F. Strong design and production capabilities, partners of famous brands.
