650 nm 50 mW Focus Adjustable Red Line Laser Projector with Power Control Potentiometer
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Product Name | Red Laser Line Projector | Wavelength And Output Power | 650nm 50.0mW |
|---|---|---|---|
| Line Width | ≤2mm@3m | Fan Angle | 90° |
| Operating Voltage | 3-5V Or 12V Or 24V DC | Case Material | Black Anodized Aluminum |
| Size | Φ16x80mm Or Φ20x110mm (PCB Inside) | Life Span | 10,000Hrs |
| Warranty | 1 Year | ||
| Highlight | 650nm Red Line Laser Generator,5mW Red Line Laser Generator |
||
Product Description

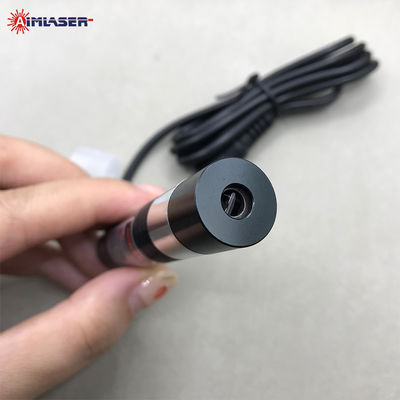

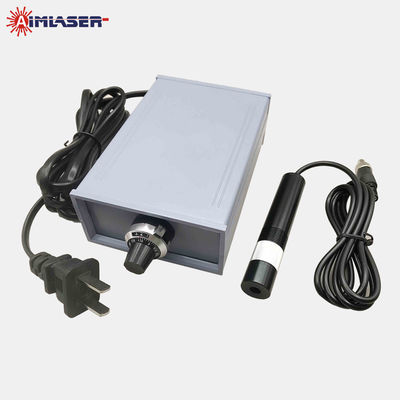

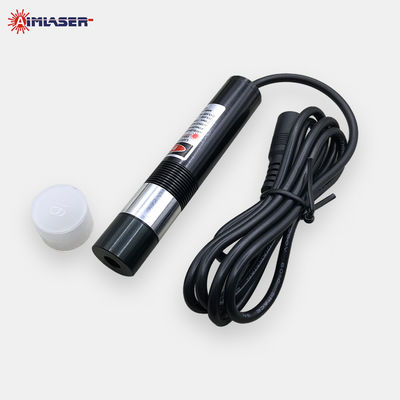

650 nm 50 mW Focus Adjustable Red Line Laser Projector with Power Control Potentiometer
Product Description
AIMLASER provides customized red and green laser line projectors with fixed-focus or adjustable-focus options. Available wavelengths include 405 nm, 450 nm, 520 nm, 635 nm, and 650 nm, with output power from 1 mW to 1W. Line width, fan angle, and housing dimensions can be customized for specific industrial requirements. Power adapters and mounting brackets are available.
Our industrial laser line generators feature compact design, high reliability, and long service life. Built with optical glass lenses and high-quality laser diodes, they deliver excellent line straightness, uniform thickness, and high brightness for stable and precise alignment.
The 650 nm red laser line projector produces clear, sharp lines for cutting guidance in wood, stone, fabric, and textile machinery. It effectively supports alignment tasks such as straightness, parallelism, squareness, and leveling. Our laser line projectors are suitable for cutting, positioning, marking, and calibration applications. Contact us for customized laser solutions.
Specifications
|
ITEMS |
SPECIFICATIONS |
|
Model Number |
ALP650-50 Red Laser Line Generator |
|
Wavelength |
650nm |
|
Output Power |
50.0mW |
|
Output Aperture |
Φ5.0mm |
|
Line Width |
≤2mm@3m |
|
Line Length |
6m@3m |
|
Fan Angle |
120° |
|
Divergence |
0.6mrad |
|
Optics |
Optical Glass Lens |
|
Operating Current |
<90mA |
|
Operating Voltage |
3-5V or 12V or 24V DC |
|
CDRH Class |
Class IIIb |
|
Circuit control |
Auto Power Control (APC) |
|
Circuit Protection |
Static, Surge, and Reverse Polarity Protected |
|
Working Temperature |
-10℃ to 50℃ |
|
Storage Temperature |
-40℃ to 80℃ |
|
Dimensions |
Φ16x80mm or Φ20x110mm (PCB Inside) |
|
Case Material |
Black Anodized Aluminum |
|
Life Span |
8,000Hrs |
Features
1. Compact size and long Lifetime.
2. High reliability, high stability, high brightness
3. Convenient adjustment and mounting.
4. Conform to ROHS, FDA, IEC, and SGS standards.
5. Using original Laser Diodes from Arima, Osram, Nicha, and branded chips.
6. Provide ONE year warranty and customized solutions.
Applications
The industrial 650nm 50mW red line laser projectors or generators, are used in:
Industrial Alignment: Cutting and positioning for wood, stone, metal, rubber, textiles, and assembly lines.
Vision Inspection: Edge detection, surface inspection, and positioning in automated and robotic systems.
Construction & Renovation: Line marking, leveling, and layout alignment for walls and floors.
Research & Education: Optical alignment and laser demonstration tools.
Specialized Uses: Agriculture, roadwork, tunnel inspection, laser engraving, and display positioning.
Trade Terms
1) Payment: T/T, PayPal, Western Union, etc.
2) Shipment: FedEx, DHL, UPS etc.
3) Delivery Time: 5 - 20 days.
4) Shipment Terms: FOB Xi'an China
Why Choose Us
A. Over 20 years of laser experience.
B. Large-scaled facility 4,500sq.m2 and over 180 professional staff.
C. Use original LDs from Arima, Osram, Nicha, and so on to guarantee reliability.
D. Produced in our ISO9001:2008 certified factory.
E. Product conforms to FDA, IEC, and GB standards.
F. Strong design and production capabilities, partners of famous brands.
G. All products undergo internal testing before shipping
