520nm 532nm 635nm 650nm Laser Module Projector Generator Single Straight Light Laser Maker
Contact me for free samples and coupons.
WhatsApp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Product Name | 532nm 30mW Green Laser Line Module Projector Generator | Wavelength And Output Power | 520nm ≤30.0mW |
|---|---|---|---|
| Line Width | ≤2.5mm@5m | Fan Angle | 90 Degree |
| Operating Voltage | 3-5V Or 12V Or 24V DC | Case Material | Black Anodized Aluminum |
| Working Temperature | -10℃ To 50℃ | Life Span | 10,000Hrs |
| Warranty | 1 Year | ||
| Highlight | 650nm Laser Module Projector,635nm Laser Module Projector,532nm Laser Module Generator |
||
Product Description
Green and Red 520nm 532nm 635nm 650nm Laser Module Projector Generator Single Straight Light Laser Maker Mountable for Textile and Garment Industry
Product Description

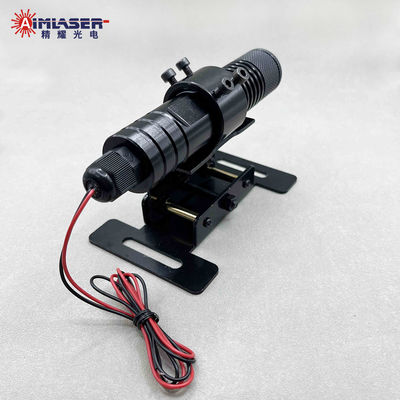

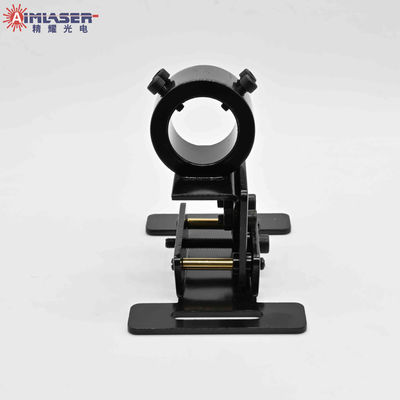

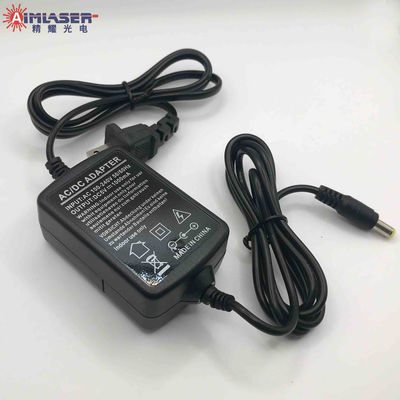

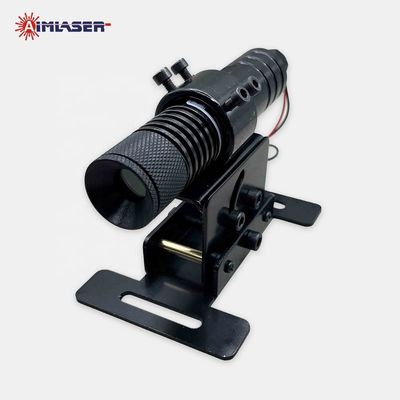

AIMLASER provides customized green and red single straight-line laser projectors for industrial applications. With wavelengths such as 520nm, 635nm, and 650nm, and output power ranging from 1mW to 200mW, these laser generators are available in both fixed focus and focusable options. Each module comes with power adapters and mounting brackets, and features like fan angle, line width, and dimensions can be customized to meet specific needs.
Our laser projectors are built for reliability and durability, featuring high-quality optical glass lenses and premium laser diodes. They deliver sharp, bright, and stable laser lines, ensuring excellent straightness and consistent performance. The compact design and high stability make them suitable for demanding industrial environments, and over 8,000 hours lifetime.
These laser line makers are widely used in fabric cutting, sewing alignment, and material positioning in textile and garment production. They provide precise guidance, improving accuracy and efficiency in tasks like cutting patterns, aligning seams, and ensuring material feed accuracy. Additionally, they are versatile enough to be used in woodworking, stone cutting, metal processing industries, and floor, ceiling, depot, dock, docker, and dockright working, making them essential for alignment, leveling, and calibration tasks.

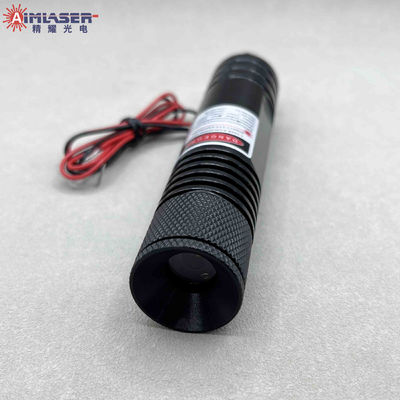

The ALP532-30A is a green-line laser module projector, the maximum output is 30mW at 532nm.
Specifications
|
ITEMS |
SPECIFICATIONS |
|
Model Number |
Green Laser Line Projector |
|
Wavelength |
532nm |
|
Output Power |
≤30.0mW |
|
Output Aperture |
Φ5.0mm |
|
Line Width |
≤3mm@5m |
|
Line Length |
10m@5m |
|
Fan Angle |
90° |
|
Divergence |
0.6mrad |
|
Optics |
Optical Glass Lens |
|
Operating Current |
<120mA |
|
Operating Voltage |
3-5V or 12V or 24V DC |
|
CDRH Class |
Class IIIb |
|
Circuit control |
Auto Power Control (APC) |
|
Circuit Protection |
Static, Surge, and Reverse Polarity Protected |
|
Working Temperature |
-10℃ to 50℃ |
|
Storage Temperature |
-40℃ to 80℃ |
|
Dimensions |
Φ16x80mm |
|
Case Material |
Black Anodized Aluminum |
|
Life Span |
8,000Hrs |
Features
1. Compact size and Long Lifetime.
2. High reliability, high stability, high brightness
3. Convenient adjustment and mounting.
4. Conform to ROHS, FDA, IEC, SGS standards.
6. Provide ONE year warranty and customized solutions.
Applications
The 532nm 30mW Green Laser Line Module Projectors Generators are used in:
● Industrial Applications: Precise alignment and positioning for cutting, marking, and assembly tasks in woodworking, metalworking, and textile industries.
● Scientific Research: Beam visualization, optical alignment, and calibration for laboratory experiments and equipment.
● Construction and Surveying: Leveling, marking, and alignment for floor, ceiling, and wall installations.
● Agriculture and Road Inspection: Field marking, tunnel scanning, and road inspection tasks requiring high accuracy.
● Automation and Vision Systems: Component positioning, edge detection, and defect identification in automated production lines.
● Consumer and Entertainment: Integrated into laser projection systems, displays, and educational tools for enhanced visibility and precision.
Trade Terms
1) Payment: T/T, PayPal, Western Union, etc.
2) Shipment: FedEx, DHL, UPS etc.
3) Delivery Time: 5 - 20 days.
4) Shipment Terms: FOB Xi'an China
Why Choose Us
A. Over 20 years laser experience.
B. Large-scaled facility 4,500sq.m2 and over 180 professional staffs.
C. Use original LDs from Arima, Osram, Nicha and so on to guarantee reliability.
D. Strictly following ISO9001:2008 quality system.
E. Product conforms to FDA, IEC and GB standard.
F. Strong design and production capabilities, partners of famous brands.
