Industrial Green Laser Light Line Projector 532nm 1 - 200mW Laser Layout Marking Tool
Contact me for free samples and coupons.
WhatsApp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Product Name | 532nm Green Laser Line Projector | Output Power | ≤50.0mW |
|---|---|---|---|
| Line Width | ≤1.0mm@1m | Line Length | 3m@1m |
| Operating Voltage | 3-5V Or 12V Or 24V DC | Case Material | Black Anodized Aluminum |
| Working Temperature | -10℃ To 50℃ | Life Span | 10,000Hrs |
| Warranty | 1 Year | ||
| Highlight | Green Laser Light Line Projector,Laser Light Line Projector 532nm |
||
Product Description

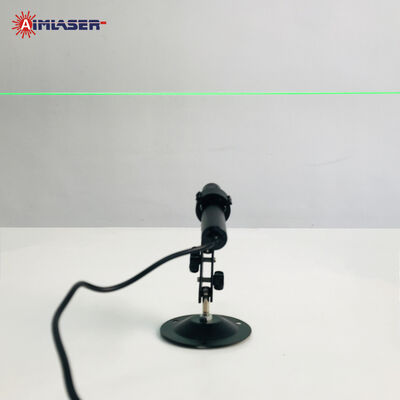

Industrial Green Laser Light Line Projector 532nm 1-200mW Customizable Laser Layout Marking Tool
Product Description

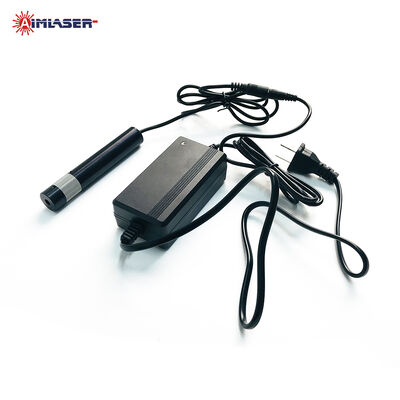

AIMLASER provides customized green and red laser line projectors, with different wavelengths, line widths, output power, and dimensions to meet specific requirements. The power adapter and mounting bracket are provided, it's easy installation and consistent operation. Both fixed-focus and focusable line laser modules are available for versatile applications.
The 532nm 30mW green laser line module projector generator emits a bright, straight, and visible green laser line at 532nm, suitable for various industrial alignment and positioning tasks. It utilizes high quality laser diode and optical glass lens, and has good performance at -10℃ to 50℃ over 8,000 hours of lifetime.
This laser line generator is commonly used in industries such as woodworking, stone cutting, calibration, material processing, metal fabrication, and textile production. It assists in tasks like cutting guidance, folding alignment, welding positioning, and seam tracking, improving operational efficiency. Additionally, it is ideal for construction site leveling, rubber and tire processing, floor and ceiling installation, and warehouse layout alignment, offering reliable performance in demanding environments.
Specifications
|
ITEMS |
SPECIFICATIONS |
|
Model Number |
Green Laser Line Generator |
|
Wavelength |
532nm |
|
Output Power |
≤50.0mW |
|
Output Aperture |
Φ5.0mm |
|
Line Width |
≤1.0mm@1m |
|
Line Length |
3m@1m |
|
Fan Angle |
110° |
|
Divergence |
0.6mrad |
|
Optics |
Optical Glass Lens |
|
Operating Current |
<120mA |
|
Operating Voltage |
3-5V or 12V or 24V DC |
|
CDRH Class |
Class IIIb |
|
Circuit control |
Auto Power Control (APC) |
|
Circuit Protection |
Static, Surge, and Reverse Polarity Protected |
|
Working Temperature |
-10℃ to 50℃ |
|
Storage Temperature |
-40℃ to 80℃ |
|
Dimensions |
Φ26x110mm |
|
Case Material |
Black Anodized Aluminum |
|
Life Span |
8,000Hrs |
Features
1. Compact size and Long Lifetime.
2. High quality laser diode module and optical glass lens.
3. High reliability, stability, and brightness.
4. Convenient adjustment and mounting with holder and power adapter.
5. Conform to ROHS, FDA, IEC, and SGS standards.
6. Provide ONE year warranty and customized solutions.
Applications
The 532nm 50mW Green Laser Line Module Projectors Generators are used in:
● Industrial alignment and positioning
● Stone, wood, and metal processing
● Fabric, rubber, and tire cutting or alignment
● Construction site leveling and calibration
● Textile and garment production
● Warehouse and dock layout adjustments
● Glass, ceramic, and tile cutting or marking
Trade Terms
1) Payment: T/T, PayPal, Western Union, etc.
2) Shipment: FedEx, DHL, UPS etc.
3) Delivery Time: 5 - 20 days.
4) Shipment Terms: FOB Xi'an China
Why Choose Us
A. Over 20 years laser experience.
B. Large-scaled facility 4,500sq.m2 and over 180 professional staffs.
C. Use original LDs from Arima, Osram, Nicha and so on to guarantee reliability.
D. Strictly following ISO9001:2008 quality system.
E. Product conforms to FDA, IEC and GB standard.
F. Strong design and production capabilities, partners of famous brands.
