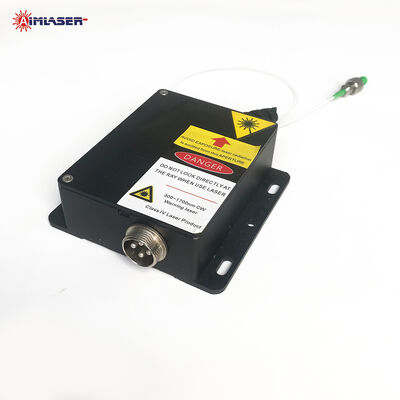

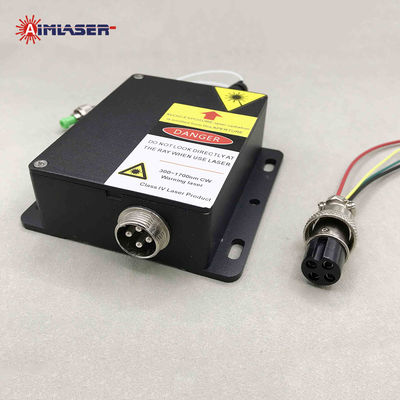

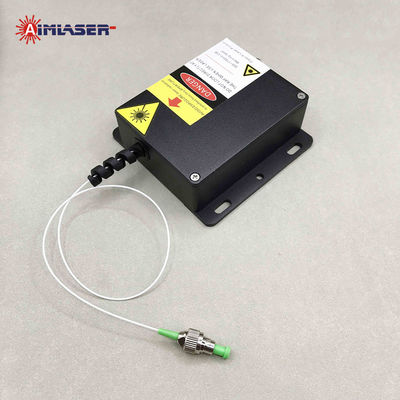

905nm 10W 10us Fiber Coupled Laser Diode Module High Power Pigtailed Fiber Source
Contact me for free samples and coupons.
WhatsApp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Product Name | Single Mode Fiber Pigtailed Laser Module | Wavelength | 905nm |
|---|---|---|---|
| Output Power | ≤10W | Laser Mode | Pulse |
| Operating Voltage | 12.0V DC | Fiber Core Diameter | 9um |
| Case Material | Anodized Aluminum | Life Span | 8,000 Hours |
| Highlight | 10W Fiber Coupled Laser Diode Module,905nm Fiber Coupled Laser Diode Module,10W High Power Laser Modules |
||
Product Description
905nm 10W 10us Fiber Coupled Laser Diode Module High Power Pigtailed Fiber Source
Product Description
AIMLASER provides customized single-mode and multi-mode fiber-coupled laser diode modules, also known as pigtailed fiber lasers. Available wavelengths include 405nm, 450nm, 520nm, 635nm, 650nm, 780nm, 850nm, 980nm, and 1064nm, with output power from 1mW to 500mW. Single-mode fibers feature core sizes of 3.5µm, 4µm, 6.5µm, or 9µm, while multi-mode fibers offer core sizes of 50µm to 200µm, with connector options include FC, PC, ST, and SMA, and customizable fiber lengths.
Our fiber-coupled laser modules are designed for compact size and low power consumption, utilizing specially designed LD drivers tailored to customer applications. Optional PD feedback control can be added to enhance reliability and stability, ensuring consistent performance. They are laser soruces for medical and biomedical instruments, laser illumination, scientific research, and various industrial applications.
The AM905SF10FC is an infrared single-mode fiber-coupled laser diode module offering up to 10W output power at 905nm, with an FC/PC receptacle optical output. Share your application requirements and laser specifications with us, and we will provide customized solutions to meet your needs.
Specifications
| ITEMS | SPECIFICATIONS |
| Model Number | High Power Fiber Coupled Laser Diode Module |
| Wavelength | 905nm |
| Output Power | ≤10W |
| Laser Mode | Pulse(TTL Modulation) 10us |
| Spectral Width | <2.0nm |
| Wavelength Shift | 0.3nm |
| Operating Current | <200mA |
| Operating Voltage | 12.0V DC |
| Lens | Optical Coating Glass Lens |
| CDRH Class | Class IIIb |
| Circuit control | Auto Constant Current(ACC) |
| Circuit Protection | Static, Surge, and Reverse Polarity Protected |
| Working Temperature | -10℃ to 50℃ |
| Storage Temperature | -20℃ to 60℃ |
| Dimensions | Φ8x22mm |
| Fiber Core Diameter | 9um Single Mode Fiber |
| Cladding Diameter | 125um |
| Fiber Length | 1m |
| Numerical Aperture | 0.13 N.A. |
| Connector | FC/PC |
| Housing Material | Anodized Aluminum |
| Life Time | 8,000Hrs |
Features
1. Compact size and low power consumption.
2. High reliability and stability, long lifetime.
3. Using special LD drivers and PD feedback.
4. Using original Laser Diodes from Arima, Osram, Nicha and branded chips.
5. Conform to ROHS, FDA, IEC, SGS standards.
6. Provide a ONE year warranty and customized solutions.
Applications
The 905nm 10W Infrared Single Mode Coaxial Packaging Fiber Coupled Laser Diode Modules are used in:
● LiDAR Systems: For accurate distance measurement and mapping.
● Range Finders: Enabling high-precision distance detection in military and industrial applications.
● Laser Imaging and Scanning: Providing high-resolution imaging for 3D modeling and visualization.
● Biomedical Equipment: Assisting in diagnostics and therapeutic devices.
● Laser Communication: Supporting optical communication systems with high-speed data transmission.
● Industrial Automation: Applied in robotics and material processing systems.
● Night Vision Systems: Enhancing performance in low-light environments.
Trade Terms
1) Payment: T/T, PayPal, Western Union, etc.
2) Shipment:FedEx, DHL, UPS etc.
3) Delivery Time: 5 - 20 days.
4) Shipment Terms: FOB Xi'an China
Why Choose Us
A. Over 20 years laser experience.
B. Large-scaled facility 4,500sq.m2 and over 180 professional staffs.
C. Use original LDs from Arima, Osram, Nicha and so on to guarantee reliability.
D. Producted in our ISO9001:2008 quality system factory.
E. Product conforms to FDA, IEC and GB standard.
F. Strong design and production capabilities, partners of famous brands.
FAQ
Q1: What parameters can be customized?
A: Yes, we can customize your required wavelength, output power, fiber core, fiber length, working voltage and connector etc.
Q2: Do you have optical fiber?
A: Yes, we provide fibers with various specifications.
