RGB Fiber Coupled Laser Diode Module 12V 50mW Bluetooth Control Corning Light Diffusing Fiber Laser Source
Contact me for free samples and coupons.
WhatsApp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Product Name | RGB Fiber Coupled Laser Diode Module | Wavelength | 450nm, 520nm, 635nm |
|---|---|---|---|
| Output Power | ≤50.0mW | Laser Mode | CW |
| Input Voltage | 3.0V DC | Connector | FC |
| Fiber Core Diameter | 125um Multimode Fiber | Life Span | 8,000 Hours |
Product Description

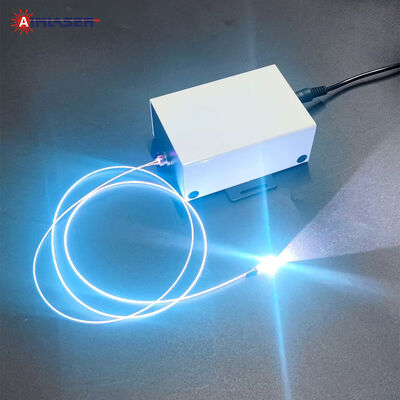

RGB Fiber Coupled Laser Diode Module 12V 50mW Bluetooth Control Corning Light Diffusing Fiber Laser Source
Product Description
AIMLASER provides RGB fiber-coupled laser modules with wavelengths of 445nm, 520nm, and 635nm. These modules support fiber core sizes such as 105µm, 125µm, 170µm, and 200µm. Connector options include SMA, FC, and ST, with customizable fiber lengths. The output power ranges from 1mW to 10W, catering to various application needs.
The RGB fiber-coupled laser diode module produces red, green, blue and more color lights output, coupled into Corning light-diffusing fiber.. It operates on a 12V power supply with a 50mW output and features Bluetooth control for convenient operation and precise color adjustments. This module is ideal laser source for lighting displays, projection systems, and custom photonic applications, delivering high efficiency and excellent beam quality.
Designed for compactness and low power consumption, our fiber-coupled lasers use specially designed LD drivers tailored to customer applications. TEC temperature control can be added to enhance reliability and stability. The AL-RGB50FC-BC is a 12V Bluetooth-controlled RGB fiber-coupled laser module with an FC receptacle optical output, offering a maximum power of 50mW across 450nm, 520nm, and 635nm wavelengths.
Specifications
| ITEMS | SPECIFICATIONS |
| Model Number | RGB Fiber Coupled Laser Diode Module |
| Wavelength | 450nm, 520nm, 635nm |
| Output Power | 50mW |
| Laser Mode | CW |
| Spectral Width | <2.0nm |
| Wavelength Shift | 0.3nm |
| Operating Current | <600mA |
| Operating Voltage | 3.0V DC |
| Optical Lens | Optical Coating Glass Lens |
| CDRH Class | Class IIIb |
| Circuit control | Auto Constant Current(ACC) |
| Circuit Protection | Static, Surge, and Reverse Polarity Protected |
| Working Temperature | -10℃ to 50℃ |
| Storage Temperature | -20℃ to 60℃ |
| Dimensions | 80x60x40mm (ACC Inside) |
| Fiber Core Diameter | 125um |
| Fiber Length | 1m |
| Numerical Aperture | 0.22 N.A. |
| Connector | FC |
| Case Material | Anodized Aluminum |
| Life Time | 8,000Hrs |
Features
1. Compact size and low power consumption.
2. High reliability and stability, long lifetime.
3. Using special LD drivers and PD feedback.
4. Using original Laser Diodes from Arima, Osram, Nicha and branded chips.
5. Conform to ROHS, FDA, IEC, SGS standards.
6. Provide a ONE year warranty and customized solutions.
Applications
The 450nm, 520nm, and 635nm 50mW Blue/Green/Red RGB Fiber Coupled Laser Diode Modules are used in:
● Laser Show Systems: Stage lighting and entertainment, RGB illumination systems, consumer products, decoration lighting, nightwear sporting products, art design projects, laser illumination light, automotive interior ambient light.
● Display Technology: Projectors, laser TVs, and holographic displays.
● Biomedical and Medical: Fluorescence microscopy, flow cytometry, and photodynamic therapy.
● Industrial Alignment: Precision alignment and metrology tools.
● Research and Development: Optical experiments and spectroscopy.
● Communication Systems: Fiber-optic communication and data transfer.
Trade Terms
1) Payment: T/T, PayPal, Western Union, etc.
2) Shipment:FedEx, DHL, UPS etc.
3) Delivery Time: 5 - 20 days.
4) Shipment Terms: FOB Xi'an China
Why Choose Us
A. Over 20 years laser experience.
B. Large-scaled facility 4,500sq.m2 and over 180 professional staffs.
C. Use original LDs from Arima, Osram, Nicha and so on to guarantee reliability.
D. Strictly following ISO9001:2008 quality system.
E. Product conforms to FDA, IEC and GB standard.
F. Strong design and production capabilities, partners of famous brands.
FAQ
Q1: Do you support customized solutions?
A: Yes, we can customize your required wavelength, output power, working voltage and connectors etc.
Q2: Do you provide power supply adapter and fiber?
A: Yes, we can provide them according to your requirements.
Q3: How can I ensure the products have no quality issues?
A: The products are produced in our ISO9001:2008 approved factory, and certified by FDA, IEC, and GB. All products undergo internal testing before shipping and come with a one year warranty. We respond proactively to any quality issues.
