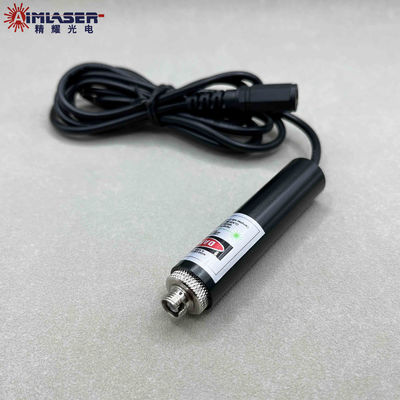

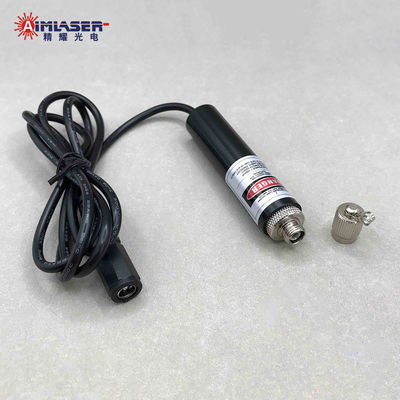

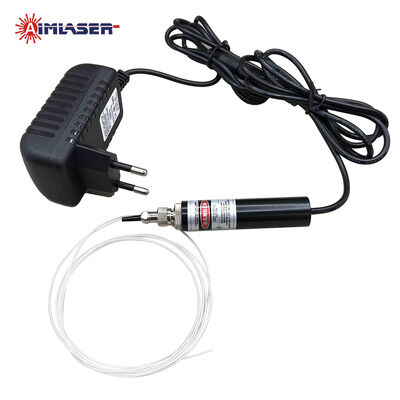

Multimode Fiber Coupled Laser Diode Module 650nm 50mW 125um With Power Supply
Contact me for free samples and coupons.
WhatsApp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Product Name | Fiber Coupled Laser Module | Wavelength | 650nm |
|---|---|---|---|
| Output Power | ≤50.0mW | Laser Mode | CW Or Pulse |
| Input Voltage | 5.0V DC | Connector | FC, PC, ST, SMA905 |
| Fiber Core Diameter | 4um | Life Span | 8,000 Hours |
| Highlight | Multimode Fiber Coupled Laser Diode Module,Fiber Coupled Laser Diode Module 50mW |
||
Product Description
650nm 50mW 125um Multimode Corning Light Diffusing Fiber Laser Source Fiber Coupled Laser Diode Module with Power Supply
Product Description
AIMLASER offers customized pigtailed coaxial fiber-coupled laser diode modules, supporting both single-mode and multimode fibers. Fiber core diameters include 3.5µm, 4µm, 6.5µm, 9µm, 50µm, 62.5µm, 105µm, 125µm, 170µm, and 200µm. Wavelength options range from 405nm, 450nm, 520nm, 635nm, 650nm, 780nm, 850nm, 980nm, to 1064nm, with output powers between 1mW and 500mW. Connectors such as FC, PC, ST, and SMA905 are available, with fiber lengths customizable to your needs.
Designed for compactness and low power consumption, our fiber-coupled lasers feature specially developed LD drivers tailored for specific applications. PD feedback can be integrated to enhance reliability and stability. It is a light source for ophthalmic and medical OCT application, fiber transmission systems, fiber optic gyros, fiber optic sensors,optical coherence tomography, optical measurements.
The AM650MF50FC is a pigtailed fiber-coupled laser diode module with an FC/PC optical output. It produces red laser light at 650nm, with a maximum output power of 50mW. The module ensures efficient coupling into the fiber, delivering high precision, reliability, and flexibility in beam output.
Specifications
| ITEMS | SPECIFICATIONS |
| Product Name | Fiber Coupled Laser Diode Module |
| Wavelength | 650nm |
| Output Power | ≤50mW |
| Laser Mode | CW & Pulse (TTL Modulation, Analog Modulation, Digital Modulation) |
| Spectral Width | <2.0nm |
| Wavelength Shift | 0.2nm |
| Operating Current | <100mA |
| Input Voltage | 5.0V DC |
| Lens | Optical Coating Glass Lens |
| CDRH Class | Class IIIb |
| Power Modulation | Analogu Input |
| Modulation Frequency | TTL<100Hz |
| Circuit control | Auto Constant Current(ACC) |
| Circuit Protection | Static, Surge, and Reverse Polarity Protected |
| Working Temperature | -10℃ to 50℃ |
| Storage Temperature | -40℃ to 80℃ |
| Dimensions | Φ16x70mm (ACC Inside) |
| Fiber Core Diameter | 125um multi-mode fiber |
| Fiber Length | 1m |
| Numerical Aperture | 0.37 N.A. |
| Connector | FC, PC, ST or SMA |
| Case Material | Black Anodized Aluminum (Insulated) |
| Life Span | 8,000Hrs |
Features
1. Compact size ,low power consumption and long lifetime.
2. Pluggable design, easy to use.
3. High output stability, wide operating temperature.
4. High efficiency, coupling efficiency ≥ 70%
5. Specially designed LD drivers and PD feedback.
6. Using original Laser Diodes from Arima, Osram, Nicha and branded chips.
7. Conform to ROHS, FDA, IEC, SGS standards.
8. Provide a ONE year warranty and customized solutions.
Applications
The 650nm 50mW 125um Red Multimode Pigtailed Coaxial Fiber Coupled Laser Diode Modules are used in:
● Optical instrumentation: spectrometers, interferometers, optical alignment tools.
● Industrial control: sensor systems, automation equipment, machine vision systems.
● Fiber optic communications: fiber optic testing and measurement, fiber optic component testing.
● Research and development: laboratory experiments, prototyping.
● Medical and Biomedical: photodynamic therapy, fluorescence excitation, optical coherence tomography.
Trade Terms
1) Payment: T/T, PayPal, Western Union, etc.
2) Shipment:FedEx, DHL, UPS etc.
3) Delivery Time: 5 - 20 days.
4) Shipment Terms: FOB Xi'an China
Why Choose Us
A. Over 20 years laser experience.
B. Large-scaled facility 4,500sq.m2 and over 180 professional staffs.
C. Use original LDs from Arima, Osram, Nicha and so on to guarantee reliability.
D. Produced in our ISO9001:2008 quality system factory.
E. Product conforms to FDA, IEC and GB standard.
F. Strong design and production capabilities, partners of famous brands.
FAQ
Q1: Do you support customized solutions?
A: Yes, we can customize your required wavelength, output power, fiber core, numerical value, working voltage and connectors etc.
Q2: Do you provide power supply adapter and fiber?
A: Yes, we can provide them according to your requirements.
Q3: How can I ensure the products have no quality issues?
A: The products are produced in our ISO9001:2008 approved factory, and certified by FDA, IEC, and GB. All products undergo internal testing before shipping and come with a one year warranty. We respond proactively to any quality issues.
