660nm 10mW 4um Fiber Laser Modules With Knob Power Adjustment FC / PC Connector

Place of Origin China
Brand Name AIMLASER
Certification FDA, IEC
Model Number AM660SF10FC
Minimum Order Quantity 1
Price USD $20-100
Packaging Details Anti-static bag, Carton boxes
Delivery Time 10-20 days
Payment Terms T/T, Western Union, PayPal
Supply Ability 1000pcs/month

Contact me for free samples and coupons.

WhatsApp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Product Name Single Mode Fiber Coupled Laser Module Wavelength 660nm
Output Power ≤10.0mW Laser Mode CW
Input Voltage 5.0V DC Connector FC, PC, ST, SMA905
Fiber Core Diameter 4um Life Span 8,000 Hours
Highlight

660nm Fiber Laser Modules

,

10mW Fiber Laser Modules

Leave a Message
Product Description

Compact 660nm 10mW 4um Single Mode Fiber Coupled Laser Module FC/PC Connector with Knob Power Adjustment for Biomedical Imaging


Product Description



AIMLASER provides customized pigtailed fiber-coupled laser diode modules. Single mode fiber options include core diameters of 3.5µm, 4µm, 6.5µm, and 9µm, while multimode fiber options include 50µm, 62.5µm, 105µm, 125µm, 170µm, and 200µm. Available wavelengths range from 405nm, 450nm, 520nm, 635nm, 650nm, 780nm, 850nm, 980nm, to 1064nm, with output power from 1mW to 500mW. Connectors include FC, PC, ST, or SMA905, and various fiber lengths can be customized.



Our fiber coupled laser modules feature a compact design, low power consumption, use specially designed LD drivers tailored to customer applications, with the option to add PD feedback for enhanced reliability and stability. They are widely used in medical laser instruments, biomedical treatments, laser illumination, scientific research, genome and DNA sequencing analysis, and other industrial applications.

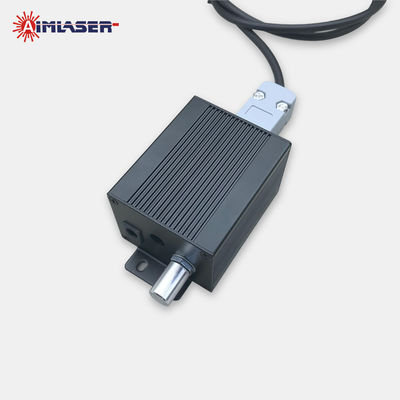

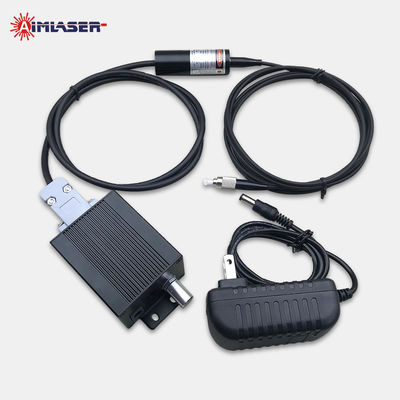

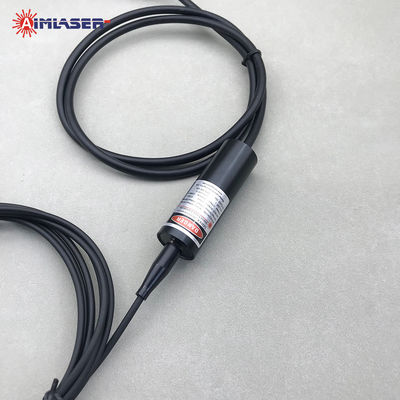

The AM660SF10FC is a red pigtailed fiber coupled laser diode subassembly with collimated beam. The maximum laser output power is 10.0mW at 660nm. The power is adjustable by the knob, and a power supply adapter is available. We can provide customized solutions to meet your needs.

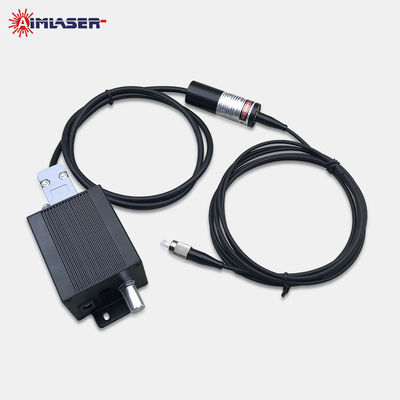

660nm 10mW 4um Single Mode Fiber Coupled Laser Module with Knob Power Adjustment FC/PC Connector660nm 10mW 4um Single Mode Fiber Coupled Laser Module with Knob Power Adjustment FC/PC Connector

Specifications



ITEMS SPECIFICATIONS
Model Number Pigtailed Fiber Coupled Laser Diode Module
Wavelength 660nm
Output Power ≤10mW
Power Control CW with knob adjustment
Spectral Width <2.0nm
Wavelength Shift 0.3nm
Operating Current <120mA
Operating Voltage 5.0V DC
Optical Lens Optical Coating Glass Lens
CDRH Class Class IIIb
Circuit control Auto Constant Current(ACC)
Circuit Protection Static, Surge, and Reverse Polarity Protected
Working Temperature -10℃ to 50℃
Storage Temperature -20℃ to 60℃
Dimensions Φ20x60mm (PCB Inside)

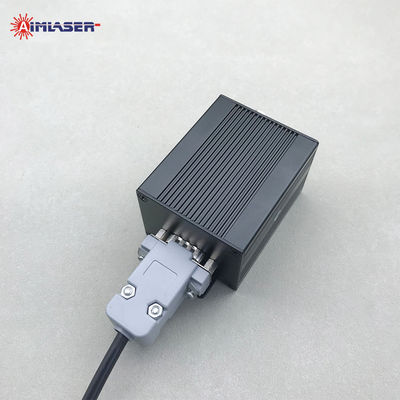

Power Supply Size 40*50*63mm
Fiber Core Diameter 4um
Cladding Diameter 125um
Fiber Length 2m
Numerical Aperture 0.13 N.A.

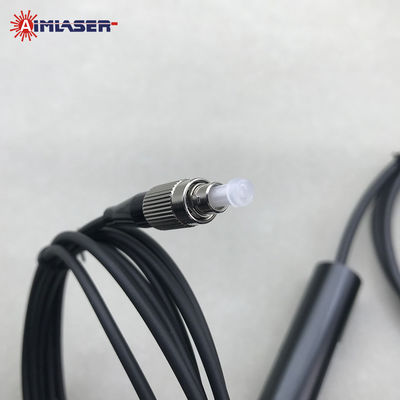

Connector FC/PC
Case Material Stainless Steel
Life Time 8,000Hrs



Features



1. Compact size and low power consumption.

2. High reliability and stability, long lifetime.

3. Using special LD drivers and PD feedback.

4. Using original Laser Diodes from Arima, Osram, Nicha and branded chips.

5. Conform to ROHS, FDA, IEC, SGS standards.

6. Provide a ONE year warranty and customized solutions.



Applications



The 660nm 10mW 4um Red Single Mode Coaxial Pigtailed Fiber Coupled Laser Diode Modules are used in:



Scientific Research: Ideal for quantum optics, fluorescence excitation, and spectral analysis.

Biomedical Applications: Used in optical imaging, biosensing, and diagnostic equipment.

Industry and Manufacturing: Suitable for precision measurement, laser marking, and equipment calibration.

Display Technology: Applied in laser displays and projection systems.

Optical Communication: For alignment, testing, and signal transmission in optical systems.
