650nm 30mW 9um Coaxial Fiber Laser Modules For Industrial And Medical Equipment

Place of Origin China
Brand Name AIMLASER
Certification FDA, IEC
Model Number AM650SF30D2
Minimum Order Quantity 1
Price USD $20-100
Packaging Details Anti-static bag, Carton
Delivery Time 10-20 days
Payment Terms T/T, Western Union, PayPal
Supply Ability 1000pcs/month

Contact me for free samples and coupons.

WhatsApp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Product Name Single Mode Fiber Pigtailed Laser Module Wavelength 650nm
Output Power ≤30.0mW Laser Mode CW
Operating Voltage 3.0V DC Case Material Stainless Steel
Connector PC/FC/SMA905/ST Spectral Width <2.0nm
Fiber Core Diameter 9um Life Span 8,000 Hours
Highlight

30mW Fiber Laser Modules

,

Coaxial Fiber Laser Modules

Leave a Message
Product Description

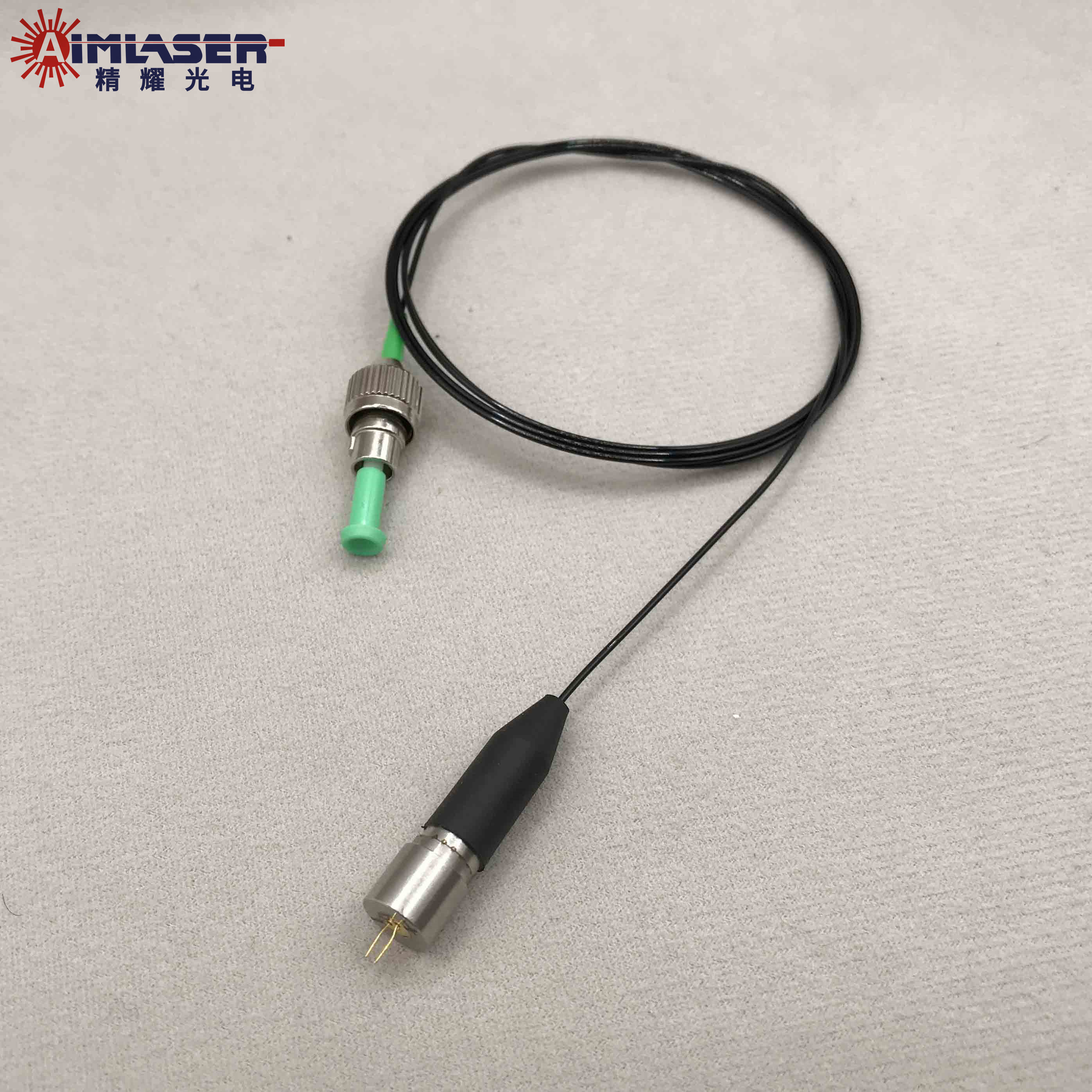

650nm 30mW 9um Single Mode Coaxial Fiber Laser Diode Module for Industrial and Medical Equipment Laser Source


Product Description



AIMLASER offers customized single mode and multi mode fiber coupled laser diode modules. They are also known as pigtailed fiber lasers or fiber-with-pigtail laser sources. Customizable wavelengths such as 405nm, 450nm, 520nm, 635nm, 650nm, 780nm, 850nm, 980nm, and 1064nm, with output power ranging from 1mW to 500mW. The singlemode pigtailed laser diode's fiber core can be 3.5µm, 4µm, 6.5µm, or 9µm. The multimode fiber-coupled laser diode's fiber core can be 50µm, 62.5µm, 105µm, 125µm, 170µm, or 200µm, with FC, PC, ST, or SMA905 connectors and various fiber lengths.



Our single-mode fiber-coupled laser module features a compact size and low power consumption. Specially designed LD drivers tailored to customer applications are available, with optional PD feedback for improved reliability and stability. These modules are used in medical laser instruments, biomedical instruments, laser illuminations, scientific research, and other industrial applications.



Feel free to share your application and laser specifications with us. We can provide tailored solutions to meet your specific needs.

450nm 60mW Single Mode Fiber Coupled Pigtailed Laser Diode Module with LD Driver and PD Feedback450nm 60mW Single Mode Fiber Coupled Pigtailed Laser Diode Module with LD Driver and PD Feedback



Specifications



ITEMS SPECIFICATIONS
Model Number Fiber Coupled Laser Diode Module with Pigtail
Wavelength 650nm
Output Power 30mW
Laser Mode CW
Spectral Width <2.0nm
Wavelength Shift 0.3nm
Operating Current <90mA
Operating Voltage 3.0V DC
Optical Lens Optical Coating Glass Lens
CDRH Class Class IIIb
Circuit control Auto Constant Current(ACC)
Circuit Protection Static, Surge, and Reverse Polarity Protected
Working Temperature -10℃ to 50℃
Storage Temperature -20℃ to 60℃
Dimensions Φ8x22mm
Fiber Core Diameter 9um Single Mode Fiber
Cladding Diameter 125um
Fiber Length 1m
Numerical Aperture 0.13 N.A.
Connector FC/PC
Case Material Stainless Steel
Life Time 8,000Hrs



Features



1. Compact size and low power consumption.

2. High reliability and stability, long lifetime.

3. Using special LD drivers and PD feedback.

4. Using original Laser Diodes from Arima, Osram, Nicha and branded chips.

5. Conform to ROHS, FDA, IEC, SGS standards.

6. Provide a ONE year warranty and customized solutions.



Applications



The 650nm 30mW 9um Red Single Mode Coaxial Fiber Coupled Laser Sources are used in:



Biomedical applications: fluorescence excitation in microscopy, flow cytometry for cell analysis, DNA sequencing, and other bioimaging techniques.

Spectroscopy: Raman spectroscopy for material identification and analysis, laser-induced fluorescence spectroscopy.

Industrial applications: high-precision material processing such as micro-welding or cutting thin materials, laser alignment or positioning systems.

Scientific research: quantum optics experiments requiring stable, coherent blue light, optical trapping or tweezers for manipulating microscopic particles.

Optical communications: test and measurement systems for fiber-optic components, short-wavelength optical data transmission research.

Entertainment and displays: laser shows and holography systems where high brightness and color purity are essential.

● Optical alignment systems, OEM instrumentation, laser test and inspection equipment.



Trade Terms



1) Payment: T/T, PayPal, Western Union, etc.

2) Shipment:FedEx, DHL, UPS etc.

3) Delivery Time: 5 - 20 days.

4) Shipment Terms: FOB Xi'an China



Why Choose Us



A. Over 20 years laser experience.

B. Large-scaled facility 4,500sq.m2 and over 180 professional staffs.

C. Use original LDs from Arima, Osram, Nicha and so on to guarantee reliability.

D. Producted in our ISO9001:2008 quality system factory.

E. Product conforms to FDA, IEC and GB standard.

F. Strong design and production capabilities, partners of famous brands.



FAQ



Q1: How can I ensure the products have no quality issues?

A: The products are produced in our ISO9001:2008 approved factory, and certified by FDA, IEC, and GB. All products undergo internal testing before shipping and come with a one year warranty. We respond proactively to any quality issues.



Q3: Do you support required solutions?

A: Yes, we can customize your required wavelength, fiber core, fiber length, output power, numerical value, working voltage and connector etc.



Q3: Do you have multi mode fiber laser source?

A: Yes, we have multi mode fiber laser diode modules with TTL and Analogue Modulation, and corning light diffusing fiber laser source, high power fiber lasers etc.
