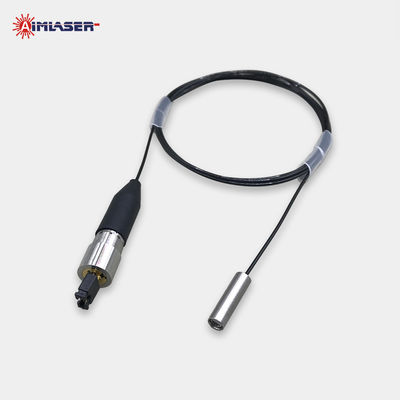

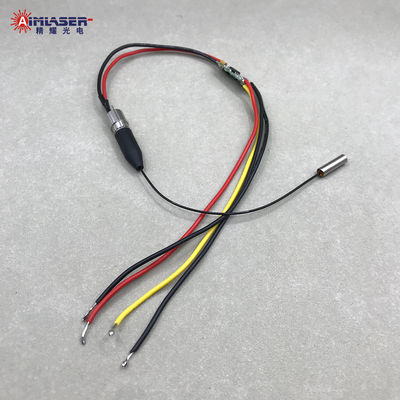

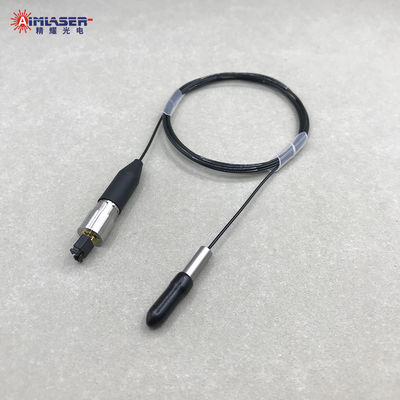

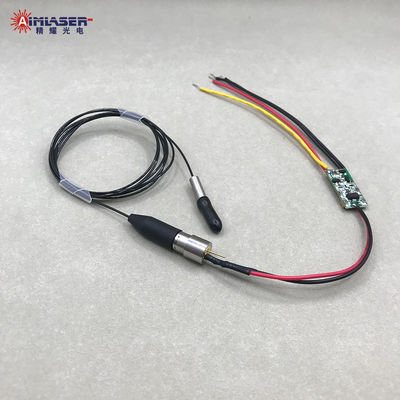

Singlemode Fiber Coupled Laser Diode Module 405nm 30mW with FC/PC/ST/SMA Connector and PCB Driver

Working Principle and Advantages

Fiber Coupled Laser Modules, also known as fiber pigtailed lasers or fiber lasers with pigtail, work by integrating a laser source with an optical fiber for efficient light delivery. The process starts with a laser diode or solid-state laser generating a coherent beam. This beam is shaped and focused using precision optics to align it perfectly into the core of the fiber pigtail. High coupling efficiency is achieved through meticulous alignment, allowing the laser light to travel through the fiber with minimal loss. This design enables precise, flexible, and long-distance delivery of laser light for applications in telecommunications, medical instruments, and industrial systems.

Fiber pigtailed laser modules provide outstanding performance and versatility. The combination of compact design, robust construction, and efficient light coupling ensures excellent beam quality and stability, making them ideal for applications like optical communication, spectroscopy, and precision machining. With the fiber coupled design, these lasers offer flexibility in routing, ease of integration into complex systems, and reduced maintenance requirements. Additionally, the enclosed beam path enhances safety and reliability, especially in high-power or sensitive environments, further cementing their role in advanced industrial, medical, and scientific applications.

Product Description

AIMLASER (Aiming Laser Technology Co., Ltd.) provides customized Fiber Coupled Laser Diode Modules. Avaliable wavelengths include 405nm, 450nm, 520nm, 635nm, 650nm, 780nm, 850nm, 980nm, and 1064nm, with output power from 1mW to 500mW. Available fiber core diameters include 4µm, 9µm, 50µm, 62.5µm, 105µm, 125µm, 170µm, and 200µm, with FC, PC, ST or SMA905 connectors, and different fiber length.

Our fiber-coupled lasers feature a compact size, low power consumption, and low noise. Specially designed LD drivers tailored to customer applications are available, with optional PD feedback for improved reliability and stability.

Please contact us with your application and laser specifications, we can customize solutions to meet your requirements.

Specifications

Features

1. Compact size and low power consumption.

2. High reliability and stability, long lifetime.

3. Using special LD drivers and PD feedback.

4. Using original Laser Diodes from Arima, Osram, Nicha and branded chips.

5. Conform to ROHS, FDA, IEC, SGS standards.

6. Provide One year warranty and customized solutions.

Applications

The 405nm 30mW 3um Purple Violet Single Mode Coaxial Fiber Coupled Pigtailed Laser Diode Modules are used in:

● Precision sensing and measurement: fiber optic sensor, interferometry.

● Scientific research: spectral analysis, quantum optics, laboratory instrument.

● Medical and life sciences: optical imaging, biosensing, medical laser instrument.

● Industry and manufacturing: laser etching and inspection, equipment calibration, CTP laser printing.

● Optical communications, optical alignment systems, OEM instrumentation, laser test and inspection equipment.

Trade Terms

1) Payment: T/T, PayPal, Western Union, etc.

2) Shipment:FedEx, DHL, UPS etc.

3) Delivery Time: 5 - 20 days.

4) Shipment Terms: FOB Xi'an China

Why Choose Us

A. Over 20 years laser experience.

B. Large-scaled facility 4,500sq.m2 and over 180 professional staffs.

C. Use original LDs from Arima, Osram, Nicha and so on to guarantee reliability.

D. Producted in our ISO9001:2008 quality system factory.

E. Product conforms to FDA, IEC and GB standard.

F. Strong design and production capabilities, partners of famous brands.

FAQ

Q1: How can I ensure the products have no quality issues?

A: The products are produced in our ISO9001:2008 approved factory, and certified by FDA, IEC, and GB. All products undergo internal testing before shipping and come with a one year warranty. We respond proactively to any quality issues.

Q3: What can be customized? Do you support required solutions?

A: Yes, we can customize your required wavelength, fiber core and length, output power, numerical value, working voltage and connector etc.

Q3: Do you have multi mode fiber laser source?

A: Yes, we have multi mode fiber coupled laser modules whose fiber core include 10um, 50um, 62.5um, 105um, 125um, 170um and 200um etc.

Q4: What are the driver modes customized?

A: CW or Pulse (by TTL / Analogue Modulation / Digital Modulation).

Q5: What is the package?

A: They are usually packaged in anti-static bags and cartons, which provides excellent protection.
