Coaxial Dual Wavelength Mini Laser Modules 850nm 1mW 520nm 5mW Combo

Place of Origin China
Brand Name AIMLASER
Certification FDA, IEC
Model Number AM850-520ML01-05G2
Minimum Order Quantity 1
Price USD $3-10
Packaging Details Anti-static bag, Carton
Delivery Time 5-15 days
Payment Terms T/T, Western Union, PayPal
Supply Ability 10000pcs/month

Contact me for free samples and coupons.

WhatsApp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Product Name 850nm 520nm Coaxial Dual Beam Lasers Module Wavelength Output Power 850nm 0.4mW-1.0mW And 520nm 1.0mW-5.0mW
Laser Type CW Beam Size 6x12mm@10m And 10x22mm@20m
Divergence 0.6mrad Circuit Control Auto Power Control (APC)
Material Brass And Insulated Aluminum Power Modulation High/Low Power Switch
Warranty 1 Year
Highlight

Mini Laser Modules 850nm

,

Mini Laser Modules 520nm

Leave a Message
Product Description

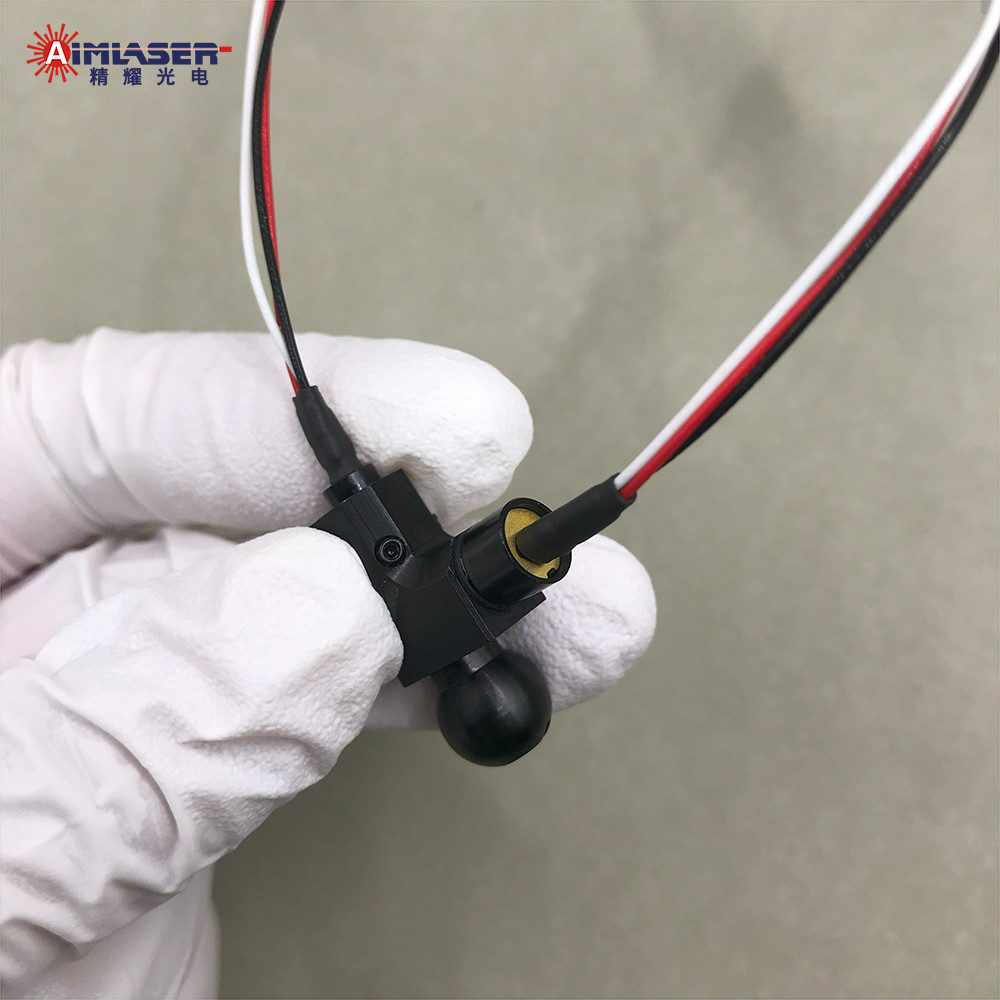

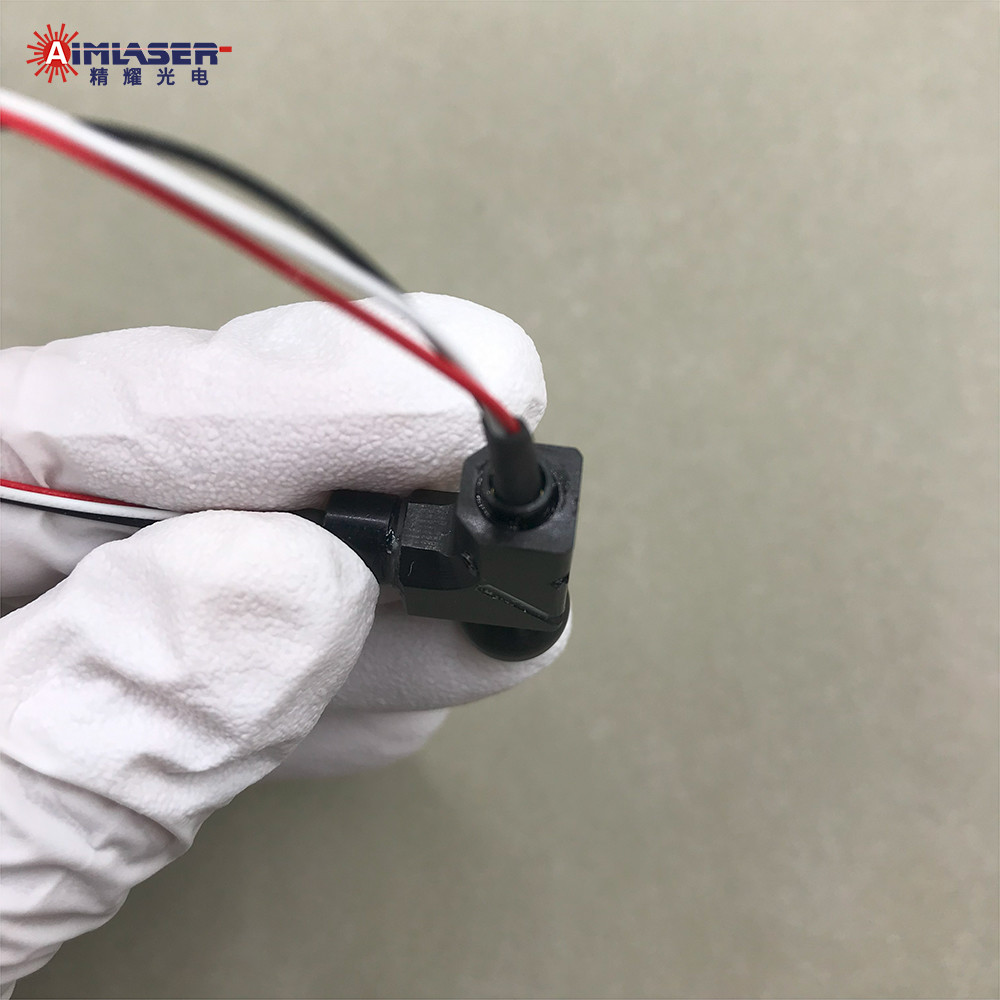

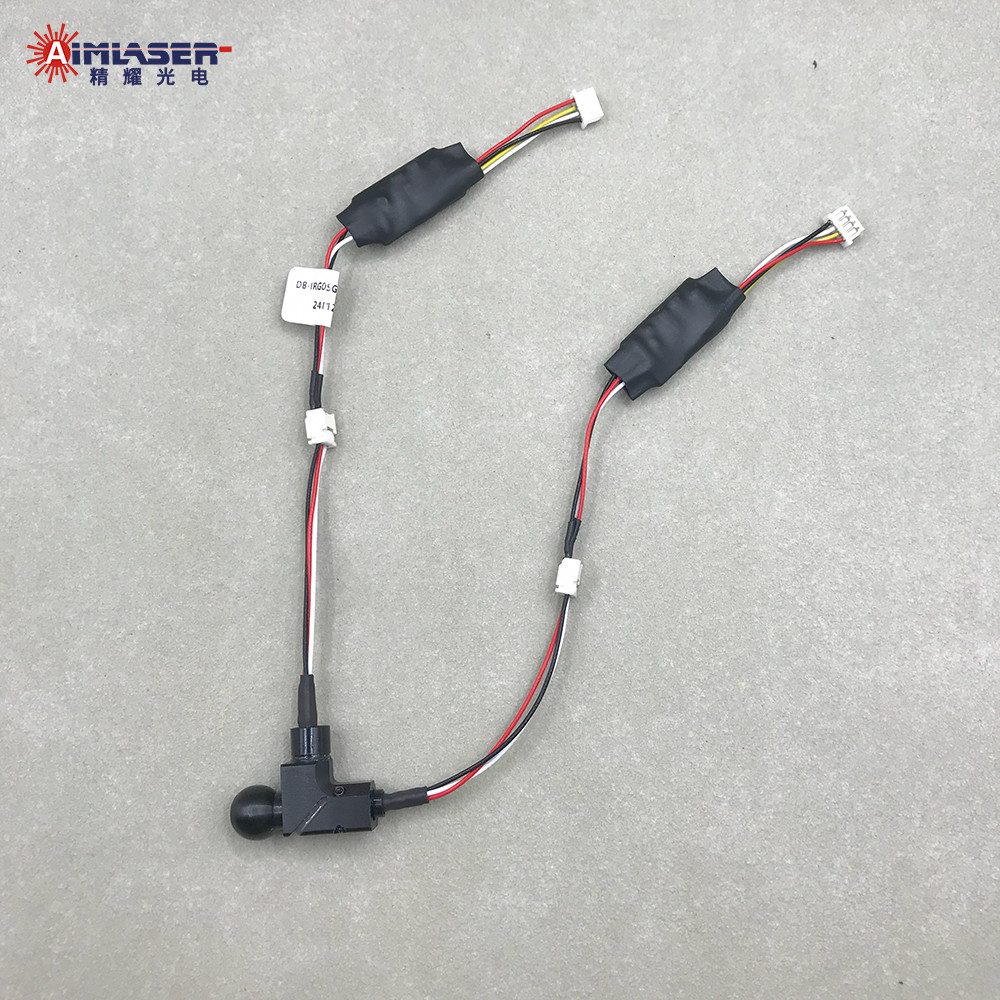

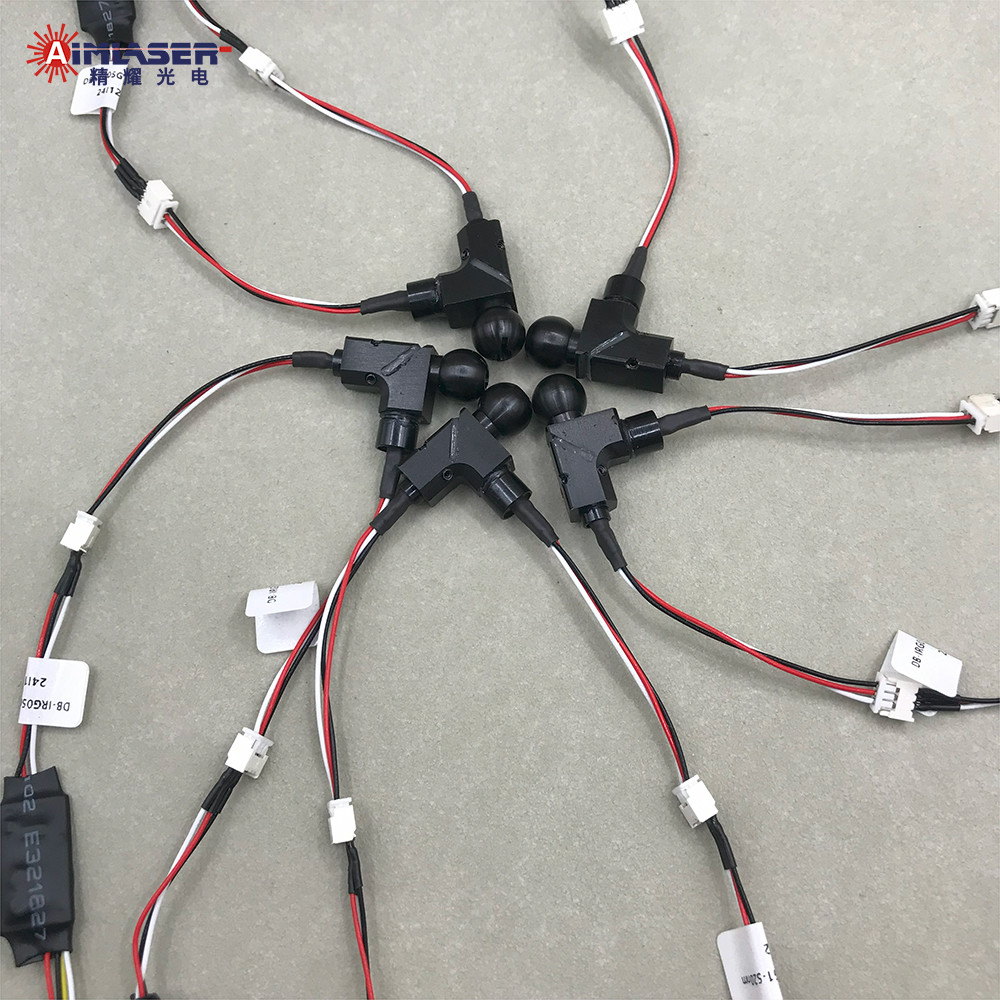

Coaxial Dual Wavelength Lasers Module 850nm 1mW and 520nm 5mW Combo for Gun Laser Sight Aiming



Product Description




AIMLASER provides Mini Coaxial Dual-Wavelength Laser Diode Modules with customizable output power, beam size, dimensions, and input voltage.



The dual-beam laser modules feature a small size, low power consumption, compact structure, low cost, and high-quality beams. They conform to ROHS, FDA, IEC, and SGS standards. We use high-precision and stable laser diodes with optical glass lenses, ensuring the laser heads project clear and stable beams with a long lifetime of over 1,000 hours, offering high stability and reliability. A 1-year warranty and customized solutions are also available.



The 850nm infrared and 520nm green laser light combo modules with collimated beams are widely used for gun tactical laser sights, gun laser grips, military laser aiming devices, barcode scanners, miniature laser tools, and industrial precision instruments for positioning, alignment, and scanning applications.

Coaxial Dual Wavelength Lasers Module 850nm 1mW and 520nm 5mW Combo for Gun Laser Sight AimingCoaxial Dual Wavelength Lasers Module 850nm 1mW and 520nm 5mW Combo for Gun Laser Sight Aiming

Specifications




ITEMS SPECIFICATIONS
Model Number DB-IR01G05 IR and Green Dual Beam Laser Light Combo
Wavelength and Output Power 850nm 0.4mW-1.0mW and 520nm 1.0mW-5.0mW
Laser Mode CW
Output Aperture Dia. 3.0mm
Beam Size 6x12mm@10m and 10x22mm@20m
Divergence 0.6mrad
Optics Optical Glass Lens
Operating Current 850nm<30mA and 520nm <160mA
Operating Voltage 3V DC (1pc CR123A)
CDRH Class Class IIIa
Circuit control Auto Power Control (APC)
Power Modulation High/Low Power Switch
Circuit Protection Static, Surge, and Reverse Polarity Protected
Working Temperature -10℃ to 50℃
Storage Temperature -40℃ to 80℃
Dimensions Customized
Housing Material Brass and Insulated Anodized Aluminum
Life Span 10,000Hrs

Features




1. Compact size, Low cost, Lightweight, Low consumption.

2. Good quality beam, long lifetime, high precision and stability.

3. Conform to ROHS, FDA, IEC, SGS standards.

4. Provide One year warranty and customized solutions.



Applications




Gun and firearms laser aiming devices

Pistols, rifles, shotguns tactical laser sights and laser grips

Mininature laser equipment etc.



Trade Terms




1) Payment: T/T, PayPal, Western Union, etc.

2) Shipment:FedEx, DHL, UPS etc.

3) Delivery Time: 5 - 20 days.

4) Shipment Terms: FOB Xi'an China



Why Choose Us




A. Over 20 years laser experience.

B. Large-scaled facility 4,500sq.m2 and over 180 professional staffs.

C. Use original LDs from Arima, Osram, Nicha and so on to guarantee reliability.

D. Producted in our ISO9001:2008 quality system factory.

E. Product conforms to FDA, IEC and GB standard.

F. Strong design and production capabilities, partners of famous brands.

G. All products undergo internal testing before shipping
