520nm 650nm 850nm 1 - 5mW Small Laser Module Gun And Firearms Aiming Measuring
Contact me for free samples and coupons.
WhatsApp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Product Name | Mini Laser Diode Module | Wavelength | 650nm |
|---|---|---|---|
| Output Power | ≤5.0mW | Laser Type | CW |
| Beam Size | 10x22mm@25m | Divergence | 0.8mrad |
| Life Span | 8,000 Hours | Material | Brass Housing, Optical Glass Lens |
| Dimensions | 6x15mm | Warranty | ONE Year |
| Highlight | 850nm Small Laser Module,650nm Small Laser Module,5mW 650nm Laser Module |
||
Product Description

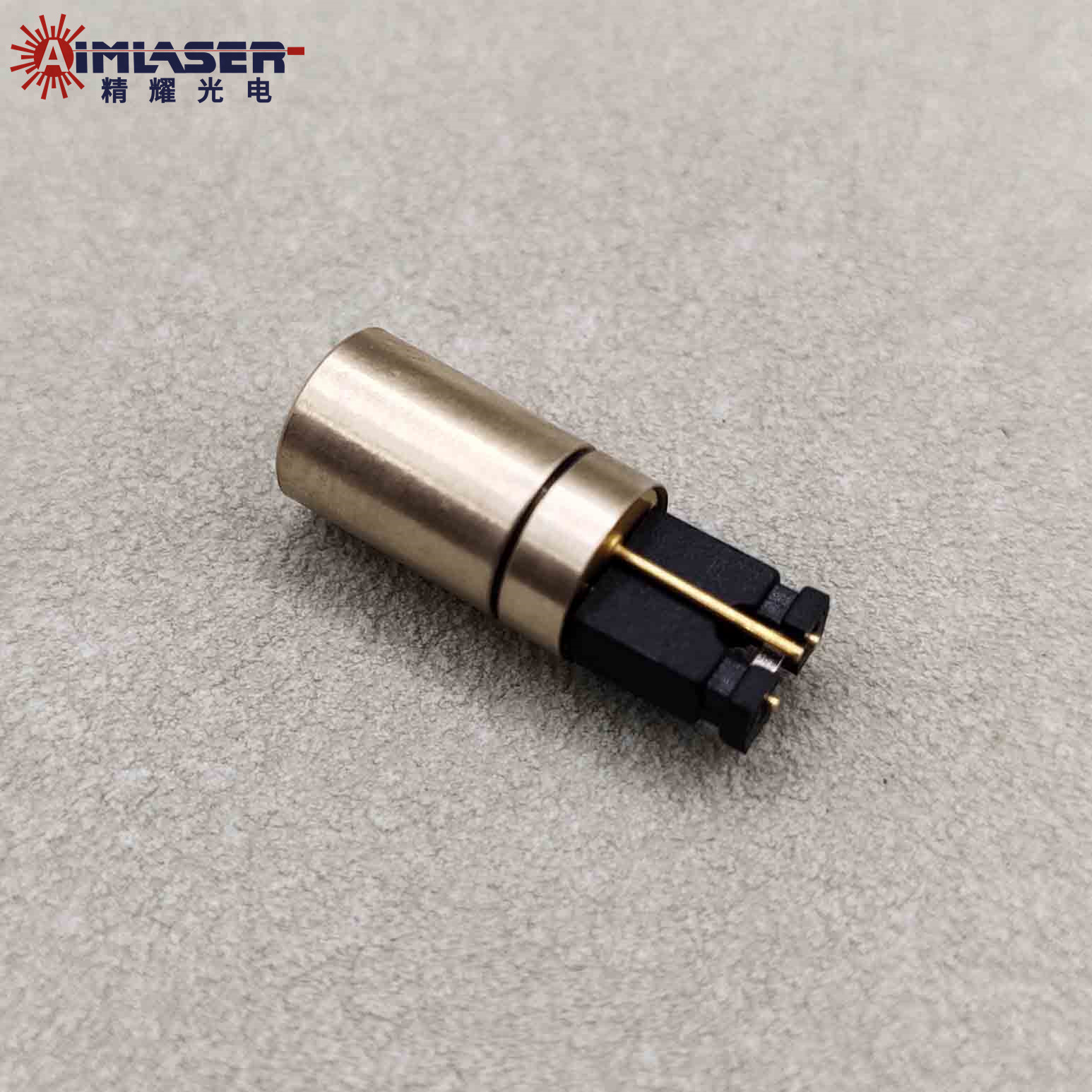

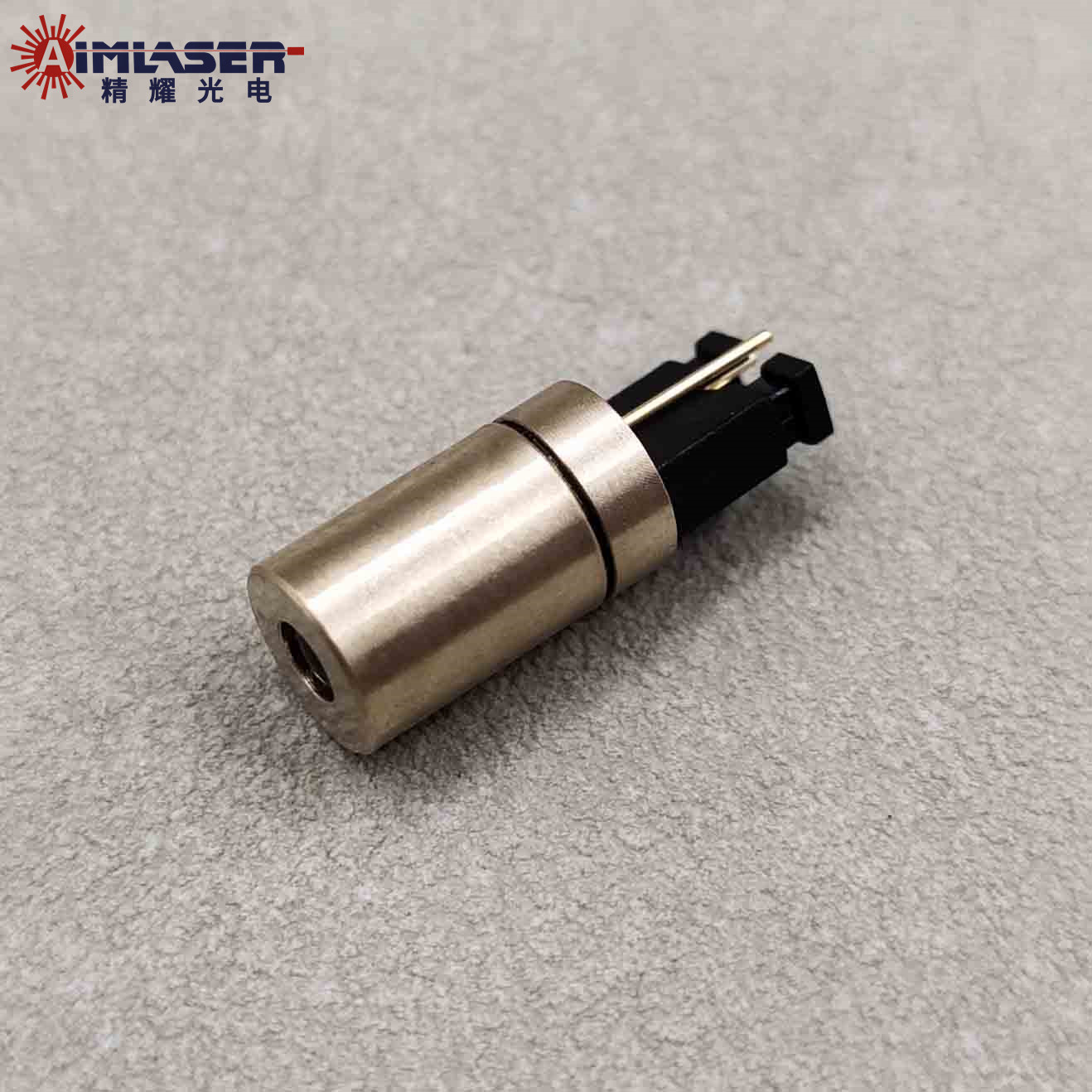

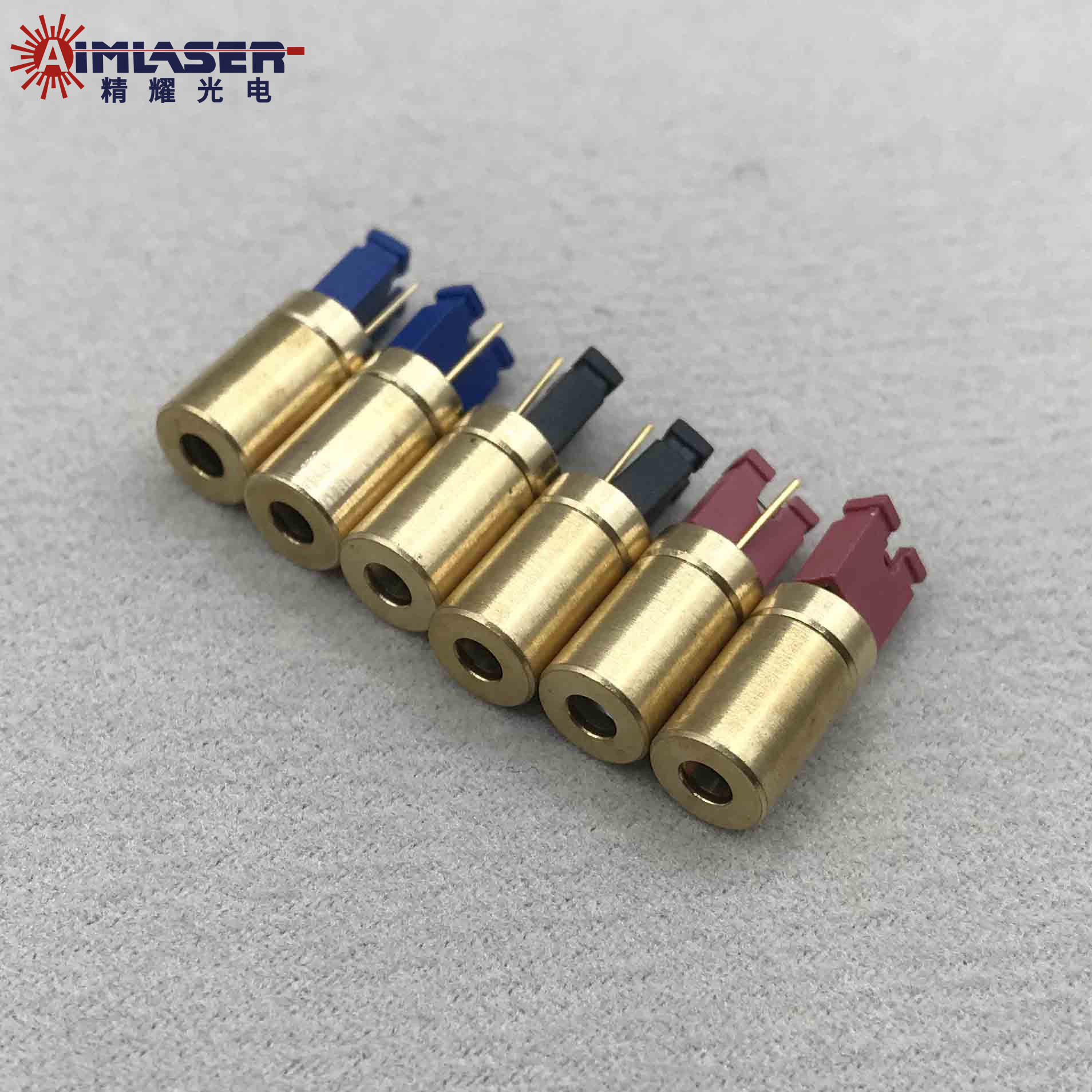

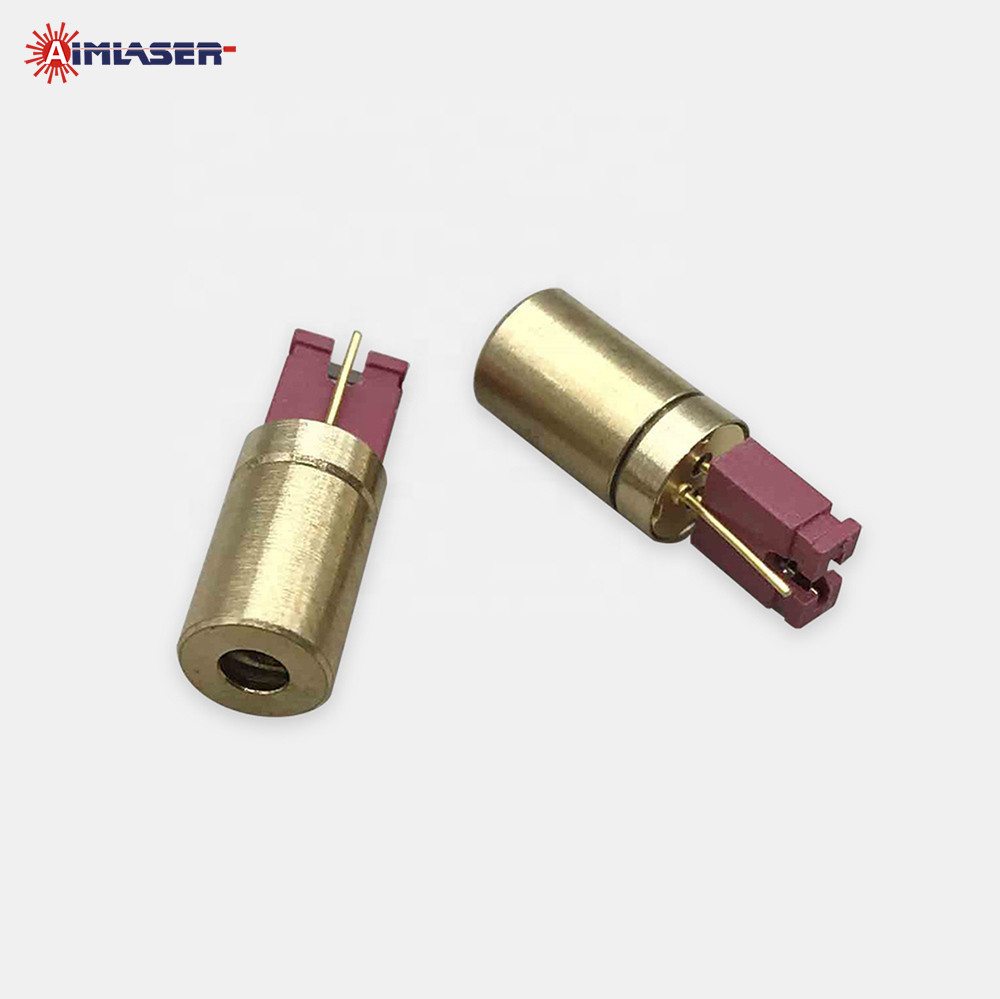

Custom Gun Aiming Measuring Laser Source 520nm 650nm 850nm 1-5mW Smallest Laser Diode Module
Product Description
AIMLASER provdes customized Mini Laser Diode Modules. Available wavelengths include 450nm, 520nm, 635nm, 650nm, 780nm, and 850nm, output power 1mW to 5mW, and different dimensions, beam size and input voltages.
The compact laser heads are designed for small size, low power consumption, a robust structure, and a high-quality beam. They comply with ROHS, FDA, IEC, and SGS standards, utilizing optical glass lenses and high-quality original laser diodes, ensuring a lifespan of over 8,000 hours. Additionally, we provide a1-year warranty and OEM customization solutions.
These small laser heads or pointers, with collimated beams, are ideal laser sources for subassemblies such as gun laser sights, laser grips, aiming devices, barcode scanners, miniature laser tools, and precision instruments used in industrial laser positioning, alignment, measuring, and scanning equipment.
Specifications
| Specification | Mini Laser Diode Modules |
| Wavelength | 450nm 520nm 635nm 650nm 780nm 850nm |
| Output Power | < 5mW |
| CDRH Class | I, II, IIIa |
| Aperture | Ø1.0mm, Ø1.5mm, Ø2.0mm, Ø3.0mm |
| Divergence | 0.50mrad ~ 3.0mrad |
| Beam Size | <5x10mm@10m and <8x20mm@20m |
| Laser Drive Modes | CW, Analog Modulation, Digital Modulation |
| Lens | Optical Glass Lens |
| Dimension | Ø3.3x8.0mm, Ø3.8x8.5mm, Ø4.0x6.0mm, Ø4.0x8.5mm, Ø4.0x10mm, Ø6.0x12mm (Custom) |
| Operating Current | <120mA, <35mA, <25mA |
| Input Voltage | 3.0V 5.0V |
| Operating Temperature | -10℃ to 50℃ |
| Storage Temperature | -40℃ to 80℃ |
| MTBF | > 8,000 Hours |
Features
1. Small size, Low cost, Lightweight, Low consumption.
2. Good quality beam, long lifetime, high precision and stability.
3. Conform to ROHS, FDA, IEC, SGS standards.
4. Provide One year warranty and customized solutions.
Applications
|
● Gun laser aiming devices |
● Laser positioning devices |
|
● Gun laser sights and laser grips |
● Laser surveying instrument |
|
● Laser distance mearsuring |
● Laser detection equipment |
|
● Laser alignment instrument |
● Medical laser equipment |
|
● Laser pointing instrument |
● Military laser accessories etc. |
Package
We offer anti-static bags and cartons to ensure excellent protection during storage and transportation.
Trade Terms
1) Payment: T/T, PayPal, Western Union, etc.
2) Shipment:FedEx, DHL, UPS etc.
3) Delivery Time: 5 - 20 days.
4) Shipment Terms: FOB Xi'an China
Our Services
A. Over 20 years laser experience.
B. Large-scaled facility 4,500sq.m2 and over 180 professional staffs.
C. Use original LDs from Arima, Osram, Nicha and so on to guarantee reliability.
D. Producted in our ISO9001:2008 quality system factory.
E. Product conforms to FDA, IEC and GB standard.
F. Strong design and production capabilities, partners of famous brands.
G. All products undergo internal testing before shipping
