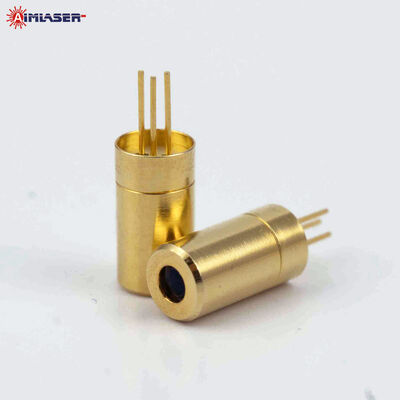

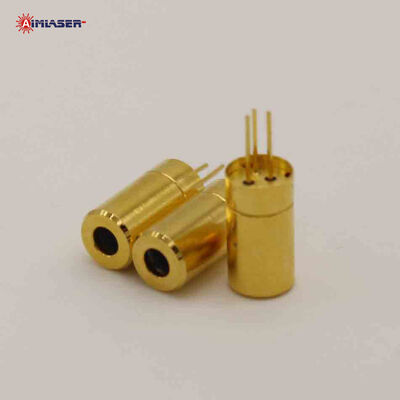

Compact 850nm 5mW IR Laser Diode Module with Pin-Out for Military Weapon Aiming Applications
Product Details
| Product Name | Mini Infrared Dot Laser Module | Wavelength | 850nm |
|---|---|---|---|
| Output Power | ≤1.0mW, ≤5.0mW, ≤50.0mW | Laser Type | CW |
| Beam Size | 10x22mm@25m | Divergence | 0.5(±0.3)mrad |
| Life Span | 8,000 Hours | Material | Brass Housing, Optical Glass Lens |
| Dimensions | 6x12mm(APC Inside) | Warranty | 1 Year Warranty |
| Highlight | 5mW IR Laser Diode Modules,1mW IR Laser Diode Modules,850nm 5mW Laser Module |
||
Product Description
850nm 5mW IR Laser Module
AIMLASER 850nm mini infrared laser diode module is designed for compact and reliable integration in aiming, alignment, and sensing systems. It delivers a stable continuous-wave infrared output with excellent beam quality and consistent performance.
Featuring a collimated beam and integrated APC control, the module ensures stable output and long-term reliability even in demanding applications. Its compact brass housing makes it easy to install in space-limited devices while maintaining strong mechanical durability.
Widely used in weapon aiming systems, night vision devices, rangefinders, barcode scanners, and precision alignment instruments, this laser module provides a cost-effective and stable solution for infrared laser applications.
Features
● Compact infrared laser module designed for easy integration in space-limited systems.
● Stable collimated beam with consistent output for precise alignment and targeting.
● Integrated APC control ensures steady laser performance and reduced power fluctuation.
● Built-in protection against static, surge, and reverse polarity for improved reliability.
● Durable full brass housing provides strong mechanical stability and heat resistance.
● Long service life with stable operation suitable for industrial and tactical applications.
● Complies with RoHS, FDA, IEC, and SGS standards for safety and international quality assurance.
Specifications
|
ITEMS |
PARAMETERS |
|
Model Number |
Mini Infrared Dot Laser Diode Module |
|
Wavelength |
850nm |
|
Output Power |
≤5.0mW, (≤1.0mW, ≤50.0mW Optional) |
|
Laser Drive Mode |
CW |
|
Beam Size |
10x22mm@25m |
|
Divergence |
0.5(±0.3)mrad |
|
Optics |
Optical Glass Lens |
|
Operating Current |
<20mA |
|
Operating Voltage |
3V DC |
|
CDRH Class |
Class IIIa |
|
Circuit control |
Auto Power Control (APC) |
|
Circuit Protection |
Static, Surge, and Reverse Polarity Protected |
|
Working Temperature |
-10℃ to 50℃ |
|
Storage Temperature |
-20℃ to 60℃ |
|
Dimensions |
Φ6x12mm (APC Inside) |
|
Housing Material |
Full Brass |
|
Life Span |
8,000Hrs |
Applications
|
● Gun laser aiming devices |
● Laser positioning devices |
|
● Gun laser sights and laser grips |
● Laser surveying instrument |
|
● Night vision and laser rangefinder |
● Laser detection equipment |
|
● Laser alignment instrument |
● Medical laser instrument |
|
● Laser pointing instrument |
● Miniature laser tools |
| ● Laser measure instrument | ● Military Laser Equipment |
Package
The modules are packaged in anti-static bags and cartons to ensure excellent protection during storage and transportation.
Trade Terms
1) Payment: T/T, PayPal, Western Union, etc.
2) Shipment: FedEx, DHL, UPS etc.
3) Delivery Time: 5 - 20 days.
4) Shipment Terms: FOB Xi'an China.
Our Services
A. Over 20 years of laser experience.
B. Large-scaled facility 4,500sq.m2 and over 180 professional staff.
C. Use original LDs from Arima, Osram, Nicha and so on to guarantee reliability.
D. Strictly following ISO9001:2008 quality system.
E. Product conforms to FDA, IEC, and GB standards.
F. Strong design and production capabilities, partners of famous brands.
