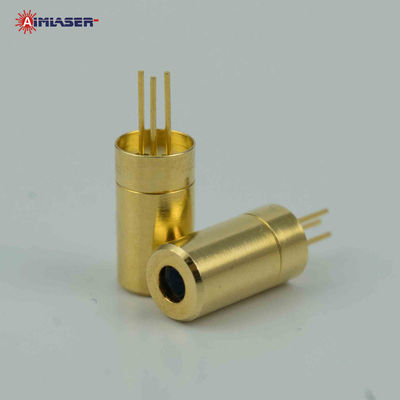

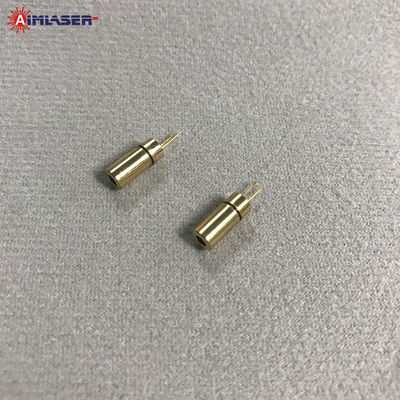

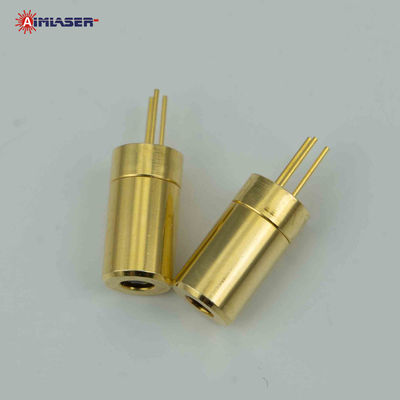

850nm 1mW 5mW IR Laser Diode Modules With Pin Out Military Laser Head Pointer

Place of Origin China
Brand Name AIMLASER
Certification FDA, IEC
Model Number AM850ML01G2
Minimum Order Quantity 1
Price USD $3-10
Packaging Details Anti-static bag, Carton
Delivery Time 5-15 days
Payment Terms T/T, Western Union, PayPal
Supply Ability 10000pcs/month

Contact me for free samples and coupons.

WhatsApp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Product Name Mini Infrared Dot Laser Module Wavelength 850nm
Output Power ≤1.0mW Laser Type CW
Beam Size 10x22mm@25m Divergence 0.8mrad
Life Span 8,000 Hours Material Brass Housing, Optical Glass Lens
Dimensions 6x12mm(APC Inside) Warranty 1 Year Warranty
Highlight

5mW IR Laser Diode Modules

,

1mW IR Laser Diode Modules

,

850nm 5mW Laser Module

Leave a Message
Product Description

850nm 1mW 5mW IR Smallest Laser Diode Modules with Pin Out Military Laser Head Pointer



Product Description




AIMLASER specializes in the production of Mini Laser Diode Modules and offers tailored solutions. Available wavelengths include 405nm, 450nm, 520nm, 635nm, 650nm, 780nm, and 850nm, with output power under 5mW. The smallest module dimensions is 3.3x8mm. These modules are equipped with optical glass lenses and support input voltages between 2V and 5V DC.



Designed for compactness and efficiency, these small laser heads feature low power consumption, a stable beam, and a robust structure. These laser heads meet ROHS, FDA, IEC, and SGS standards, ensuring superior quality and a lifespan of over 8,000 hours. A 1-year warranty and OEM customization options are also available.



The 850nm 1mW infrared laser diode module, featuring a collimated beam, is a versatile subassembly used in gun laser sights, laser grips, night vision, laser rangefinders, aiming devices, barcode scanners, miniature laser tools, and precision instruments for laser positioning, alignment, and scanning applications.

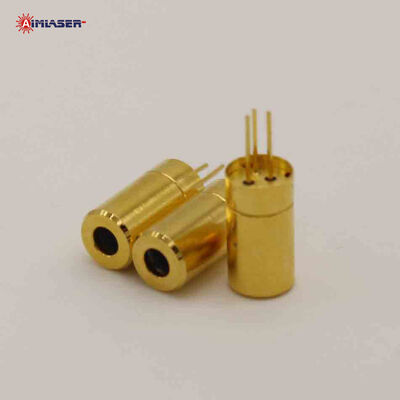

850nm 1mW 5mW IR Smallest Laser Diode Modules with Pin Out Military Laser Head Pointer850nm 1mW 5mW IR Smallest Laser Diode Modules with Pin Out Military Laser Head Pointer

Specifications




ITEMS
PARAMENTERS

Model Number

Mini Infrared Dot Laser Diode Module

Wavelength

850nm

Output Power

≤1.0mW

Laser Drive Mode

CW

Beam Size

10x22mm@25m

Divergence

0.8mrad

Optics

Optical Glass Lens

Operating Current

<20mA

Operating Voltage

3V DC

CDRH Class

Class IIIa

Circuit control

Auto Power Control (APC)

Circuit Protection

Static, Surge, and Reverse Polarity Protected

Working Temperature

-10℃ to 50℃

Storage Temperature

-20℃ to 60℃

Dimensions

Φ6x12mm (APC Inside)

Housing Material

Full Brass

Life Span

8,000Hrs



Features




1. Small size, Low cost, Lightweight, Low consumption.

2. Good quality beam, high precision and stability.

3. Long Lifetime and Complex Condition Design.

4. Conform to ROHS, FDA, IEC, SGS standards.

5. Provide One year warranty and customized solutions.



Applications




● Gun laser aiming devices

● Laser positioning devices

● Gun laser sights and laser grips

● Laser surveying instrument

● Night vision and laser rangefinder

● Laser detection equipment

● Laser alignment instrument

● Medical laser instrument

● Laser pointing instrument

● Miniature laser tools

Laser measure instrument Military Laser Equipment



Package




The modules are packaged in anti-static bags and cartons to ensure excellent protection during storage and transportation.



850nm 1mW 5mW IR Laser Diode Modules With Pin Out Military Laser Head Pointer 2



Trade Terms




1) Payment: T/T, PayPal, Western Union, etc.

2) Shipment:FedEx, DHL, UPS etc.

3) Delivery Time: 5 - 20 days.

4) Shipment Terms: FOB Xi'an China



Our Services




A. Over 20 years laser experience.

B. Large-scaled facility 4,500sq.m2 and over 180 professional staffs.

C. Use original LDs from Arima, Osram, Nicha and so on to guarantee reliability.

D. Strictly following ISO9001:2008 quality system.

E. Product conforms to FDA, IEC and GB standard.

F. Strong design and production capabilities, partners of famous brands.
