Industrial Mini Laser Modules 520nm 5mW Green Dot Laser Head With Spring

Place of Origin China
Brand Name AIMLASER
Certification FDA, IEC
Model Number AM520ML05G2
Minimum Order Quantity 1
Price USD $3-10
Packaging Details Anti-static bag, Carton boxes
Delivery Time 5-15 days
Payment Terms T/T, Western Union, PayPal
Supply Ability 10000pcs/month

Contact me for free samples and coupons.

WhatsApp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Product Name Mini Green Dot Laser Diode Module Wavelength 520nm
Output Power ≤5.0mW Laser Type CW
Beam Size 10x22mm@25m Divergence 0.5mrad
Operating Voltage 3-5V DC Material Full Brass
Dimensions 4x10mm Warranty 1 Year
Highlight

Industrial Mini Laser Modules

,

Mini Laser Modules 5mW

Leave a Message
Product Description

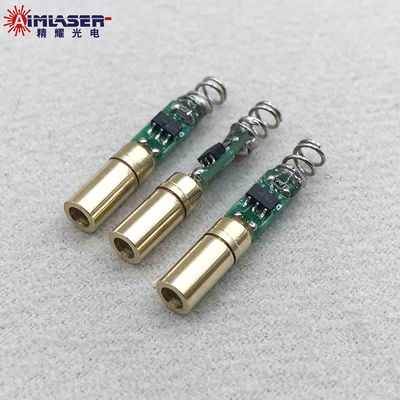

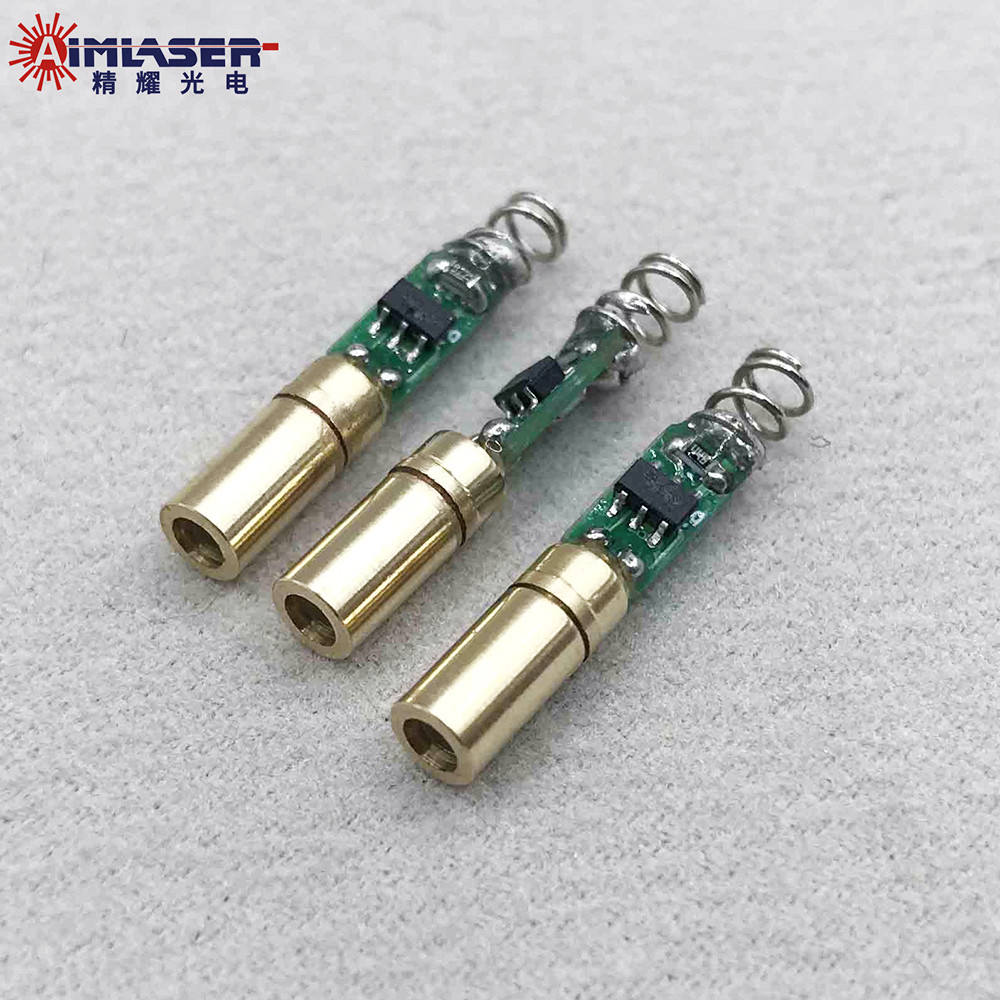

Industrial Mini Laser Diode Module 520nm 5mW Laser Head with Spring for Laser Alignment and Measurement Equipment



Product Description

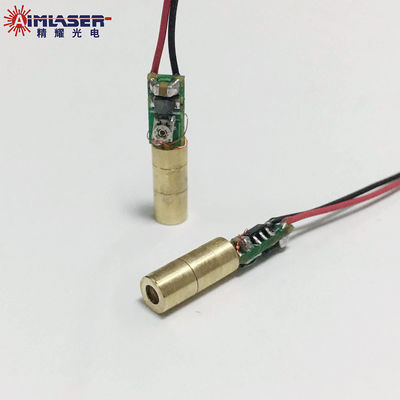

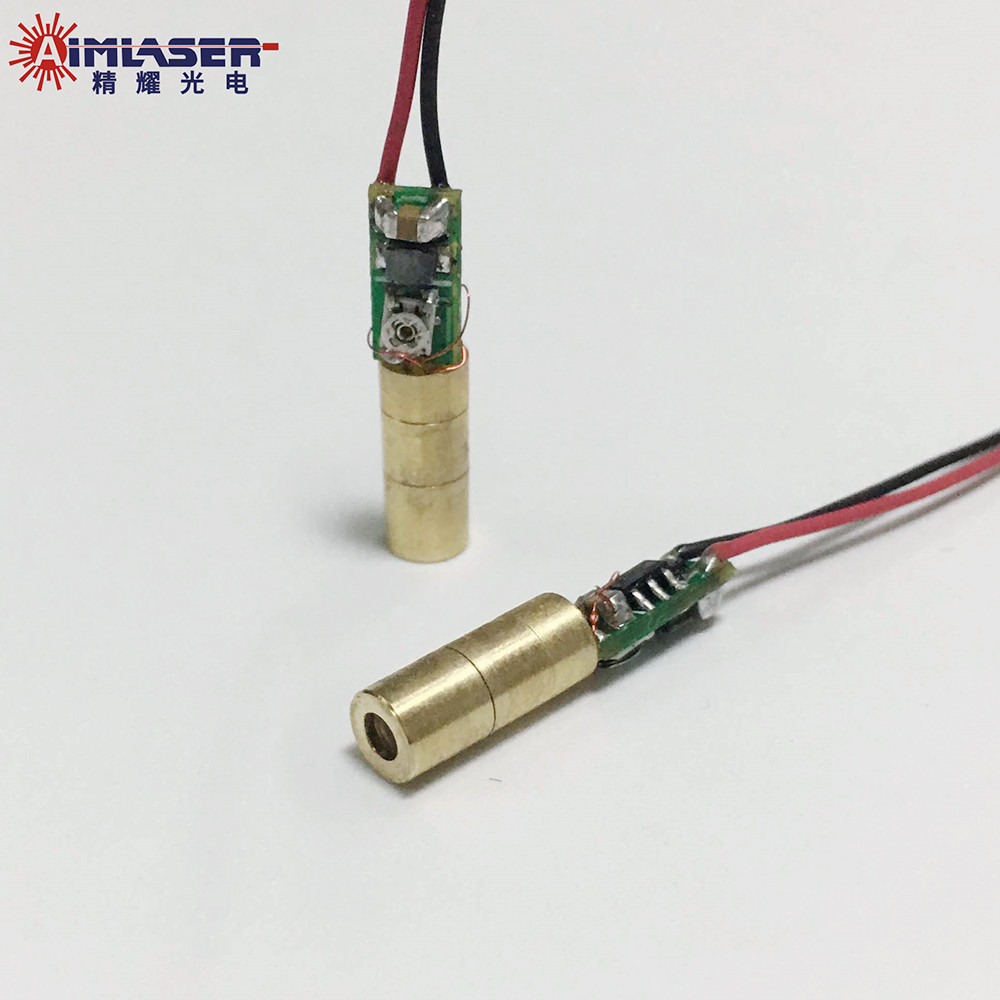

AIMLASER manufactures Mini Laser Diode Modules and provides custom solutions. The available wavelengths include 450nm, 520nm, 635nm, 650nm, 780nm, and 850nm, with output power under 5mW. The typical beam size is 10x22mm at 25m, and the module dimensions include 3.3x8mm, 3.85x8.5mm, 4x10mm, and 6x12mm. These modules utilize optical glass lenses and support input voltages from 2V to 5V DC.



These compact laser heads are designed for low power consumption, a small footprint, a stable beam, and high quality. They meet ROHS, FDA, IEC, and SGS standards, ensuring durability with a lifespan exceeding 8,000 hours. Additionally, they come with a 1-year warranty and are available for OEM customizations.



The 520nm 5mW green laser diode module with a collimated beam is a subassembly used in various applications, including industrial use, machine vision, inspection, medical and aesthetic procedures, laser sights, smoke detection, barcode scanning, gun laser sights and grips, laser aiming devices, miniature laser tools, and precision instruments for laser positioning, alignment, and scanning.

Industrial Mini Laser Diode Module 520nm 5mW Laser Head with Spring for Laser Alignment and Measurement EquipmentIndustrial Mini Laser Diode Module 520nm 5mW Laser Head with Spring for Laser Alignment and Measurement Equipment

Specifications




ITEMS
PARAMENTERS

Model Number

AM520ML05G2 Green Dot Smallest Laser Diode Module

Wavelength

520nm

Output Power

≤5.0mW

Laser Mode

CW

Beam Size

10x22mm@25m

Divergence

0.5mrad

Optics

Optical Glass Lens

Operating Current

<50mA

Operating Voltage

3-5V DC

CDRH Class

Class IIIa

Circuit control

Auto Power Control (APC)

Circuit Protection

Static, Surge, and Reverse Polarity Protected

Working Temperature

-10℃ to 50℃

Storage Temperature

-20℃ to 60℃

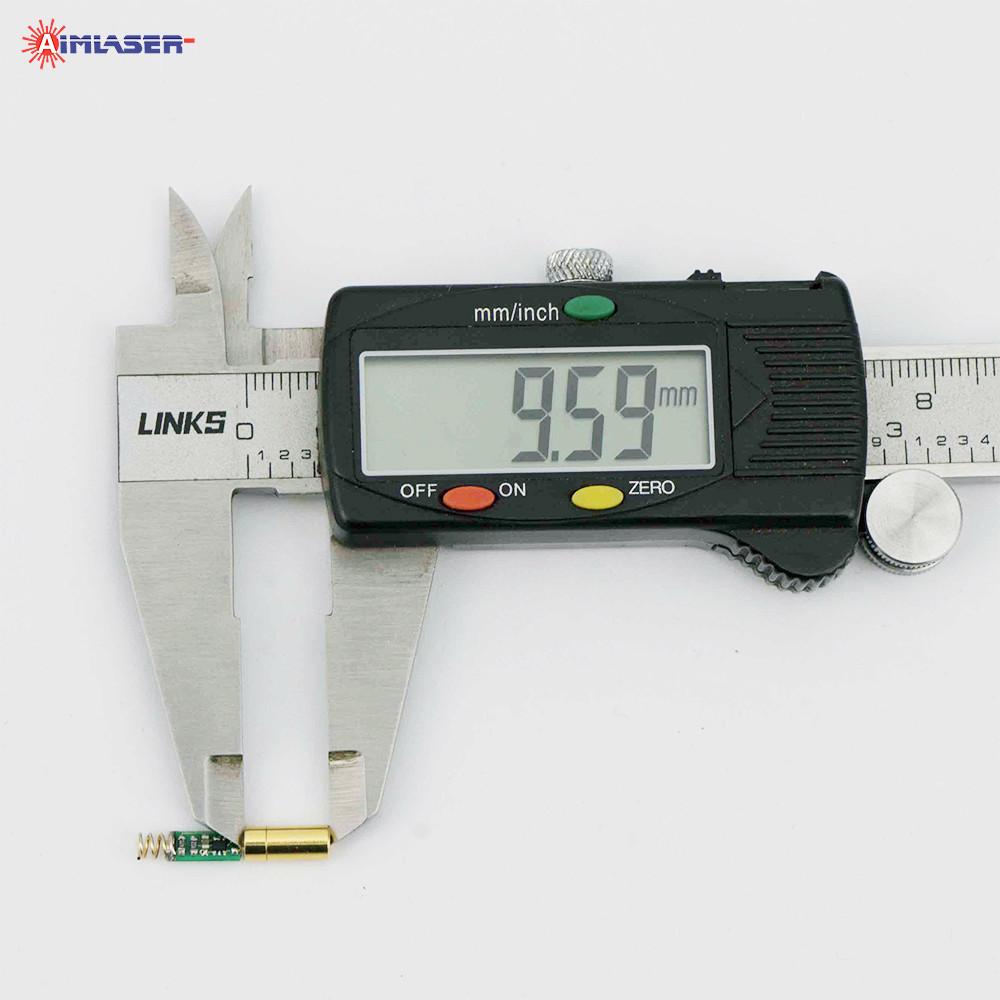

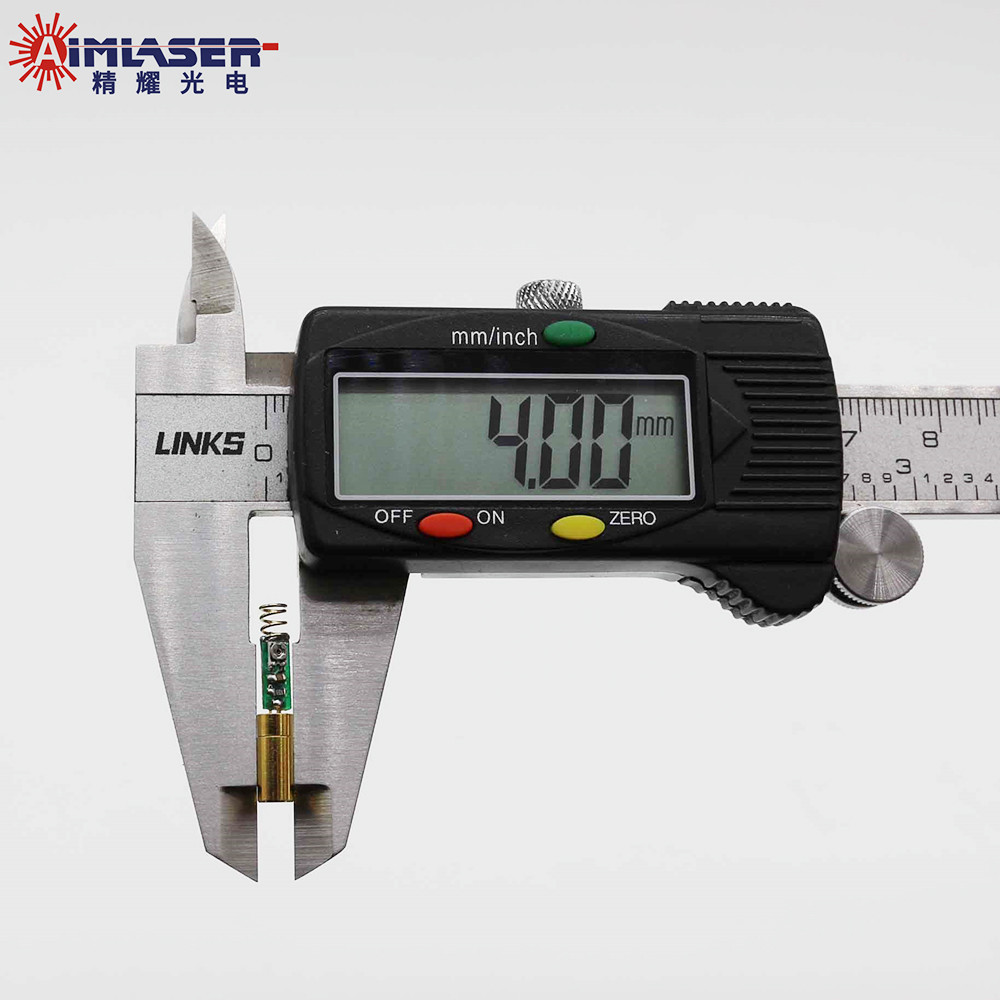

Dimensions

Φ4x10mm (APC Inside)

Housing Material

Full Brass

Life Span

8,000Hrs



Features




1. Compact size, Low consumption, Lightweight.

2. Good quality beam, high precision and stability.

3. Long Lifetime and Complex Condition Design.

4. Conform to ROHS, FDA, IEC, SGS standards.

5. Provide a one year warranty and customized solutions.



Applications




● Gun laser aiming devices

● Laser positioning devices

● Gun laser sights and laser grips

● Laser surveying instrument

● Night vision and laser rangefinder

● Laser detection equipment

● Laser alignment instrument

● Medical and industry laser Instrument

● Laser pointing instrument

● Miniature laser tools etc.



Package




They are usually packaged in anti-static bags and cartons, which provides excellent protection.



Industrial Mini Laser Modules 520nm 5mW Green Dot Laser Head With Spring 2



Trade Terms




1) Payment: T/T, PayPal, Western Union, etc.

2) Shipment:FedEx, DHL, UPS etc.

3) Delivery Time: 5 - 20 days.

4) Shipment Terms: FOB Xi'an China



Our Services




A. Over 20 years laser experience.

B. Large-scaled facility 4,500sq.m2 and over 180 professional staffs.

C. Use original LDs from Arima, Osram, Nicha and so on to guarantee reliability.

D. Strictly following ISO9001:2008 quality system.

E. Product conforms to FDA, IEC and GB standard.

F. Strong design and production capabilities, partners of famous brands.
