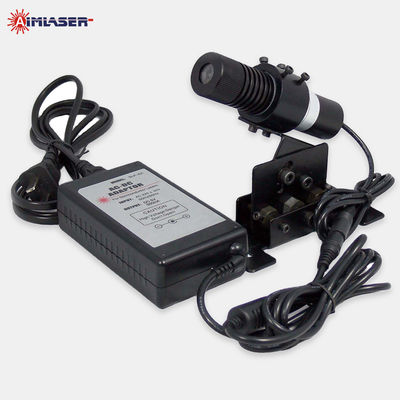

520nm 30mW Laser Line Projector Green Guiding Laser Beam For Wood Stone Cloth Cutting

Contact me for free samples and coupons.
WhatsApp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Name | 520nm 30mW Green Laser Line Projector | Wavelength And Output Power | 520nm ≤30.0mW |
---|---|---|---|
Line Width | ≤2.5mm@5m | Fan Angle | 90 Degree |
Operating Voltage | 3-5V Or 12V Or 24V DC | Case Material | Black Anodized Aluminum |
Working Temperature | -10℃ To 50℃ | Life Span | 10,000Hrs |
Warranty | 1 Year | ||
Highlight | 30mW Laser Line Projector,520nm Laser Line Projector |
Laser Line Projector 520nm 30mW Making Green Laser Beam for Wood Stone Cloth Cutting Processing
Product Description
AIMLASER manufactures Laser Line Projectors. We provide customized red and green line laser projectors in both fixed focus and adjustable focus options, with power adapters and mounting brackets. These projectors are available with different output powers, line widths, and dimensions for various industrial applications.
Our industrial-grade laser line generators are compact, highly reliable, and stable, featuring long lifespans, high accuracy, brightness, excellent straightness, and thin line thickness. These laser line makers use optical glass lenses and are designed for easy adjustment and mounting.
The laser line projectors produce clear red or green lines for precise alignment and positioning in wood, stone, cloth and fabric cutting machines. They effectively guide machine operations, addressing issues related to straightness, flatness, parallelism, squareness, and leveling.
For customized solutions tailored to your specific needs—including wavelength, output power, line width, fan angle, working voltage and housing dimensions—please contact us.
Specifications
ITEMS |
SPECIFICATIONS |
Model Number |
ALP520-30 Green Laser Line Projector |
Wavelength |
520nm |
Output Power |
≤30.0mW |
Output Aperture |
Φ5.0mm |
Line Width |
≤2.5mm@5m |
Line Length |
10m@5m |
Fan Angle |
90° |
Divergence |
0.2mrad |
Optics |
Optical Glass Lens |
Operating Current |
<100mA |
Operating Voltage |
3-5V or 12V or 24V DC |
CDRH Class |
Class IIIb |
Circuit control |
Auto Power Control (APC) |
Circuit Protection |
Static, Surge, and Reverse Polarity Protected |
Working Temperature |
-10℃ to 50℃ |
Storage Temperature |
-40℃ to 80℃ |
Dimensions |
Φ16x80mm |
Case Material |
Black Anodized Aluminum |
Life Span |
10,000Hrs |
Features
1. Compact size and Long Lifetime.
3. Convenient adjustment and mounting.
6. Provide ONE year warranty and customized solutions.
Applications
The 520nm 30mW Green Laser Line Projectors are used in:
● Stone, Wood, Metal and Cloth Laser Location Working
● Fabric, Rubber and Tyre cutting or processing
● Woodworking Sawing Machine Cut Guides
● Factory Auxiliary and Agricultural Field Marking
● Industrial Laser Alignment and Positioning
● Laser Positioning
● Road Inspection
● Laser Tunnel Scanning
Trade Terms
1) Payment: T/T, PayPal, Western Union, etc.
2) Shipment: FedEx, DHL, UPS etc.
3) Delivery Time: 5 - 20 days.
4) Shipment Terms: FOB Xi'an China
Why Choose Us
A. Over 20 years laser experience.
B. Large-scaled facility 4,500sq.m2 and over 180 professional staffs.
C. Use original LDs from Arima, Osram, Nicha and so on to guarantee reliability.
D. Strictly following ISO9001:2008 quality system.
E. Product conforms to FDA, IEC and GB standard.
F. Strong design and production capabilities, partners of famous brands.
FAQ
Q1: Do you support the required solutions?
A: Yes, we can customize wavelength, output power, line width, fan angle, working voltage and housing sizes and more according to your requirements.
Q2: Do you have red laser line projectors?
A: Yes, we customize both green line laser projectors, such as 520nm and 532nm, and red line laser projectors, such as 635nm, 650nm, and 660nm.
Q3: What is the laser generator package?
A: They are usually packaged in anti-static bags and cartons, which provides excellent protection.
Q4: How can I ensure the products have no quality issues?
A: We have the ISO 9001 certified factory, and our products are certified by FDA, IEC, and GB. All products undergo internal testing before shipping and come with a one year warranty. We respond proactively to any quality issues.
