Dot And Line Diode Laser Modules 650nm 20mW Straight Red Line Generator Laser Maker
Contact me for free samples and coupons.
WhatsApp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Product Name | Red Line Laser Module | Laser Display | Visible Red Strait Line |
|---|---|---|---|
| Laser Mode | CW | Beam Size | ≤3mm@10m |
| Case Material | Black Anodized Aluminum (Insulation) | Dimensions | 14x140mm |
| Life Span | 8,000Hrs | Warranty | 1 Year |
| Highlight | Diode Laser Modules 650nm,Diode Laser Modules 20mW,Line Laser Module 650nm |
||
Product Description

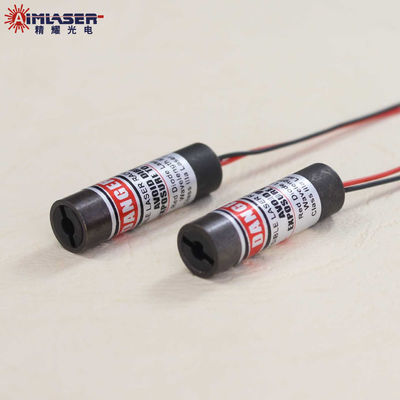

Dot and Line Laser Diode Module 650nm 20mW Long Distance Straight Red Line Generator Laser Maker
Product Description
AIMLASER offers customizable laser diode modules with dot, line, cross, and 360° circle projections in blue, green, red, and infrared. Laser wavelengths include 405nm, 450nm, 520nm, 532nm, 635nm, 650nm, 780nm, 850nm, 980nm, and 1064nm, with power outputs ranging from 1 mW to 200 mW. Line widths, working distances, and dimensions can be tailored to meet specific requirements. The modules support input voltages of 3V–24V DC or 110V AC and include a one-year warranty.
Our laser modules are compact, reliable, and deliver stable, high-quality beam performance. Built with premium optical glass lenses and diodes from trusted brands like Arima, Osram, and Nichia, they comply with ROHS, FDA, IEC, and SGS standards. Easy to install and adjust, these laser modules are dependable tools for precise positioning, leveling, and measurement in industrial applications.

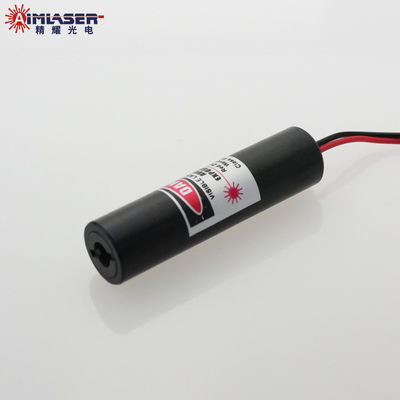

The AM650D20G2 red-line laser projector produces a straight, clear line at 650nm with a maximum output of 20 mW. Power adapters and brackets, fixed-focus options, and focusable options are available to suit various application needs.
Specification
|
ITEMS |
SPECIFICATIONS |
|
Product Name |
Red Line Laser Diode Module |
|
Wavelength |
650nm |
| Output Power | 20mW |
|
Laser Mode |
CW |
|
Fan Angle |
45° |
|
Line Width |
≤3mm@10m |
| Line Accuracy | ＜1mm@5m |
| DOF | 1m |
|
Lens |
Optical Glass Lens |
|
Operating Current |
<90mA |
|
Operating Voltage |
3-5V or 12V or 24V DC |
|
CDRH Class |
Class IIIb |
|
Circuit control |
Auto Constant Current (ACC) |
|
Circuit Protection |
Static, Surge, and Reverse Polarity Protected |
|
Construction Material |
Black Anodized Aluminum |
|
Working Temperature |
-10℃ to 50℃ |
|
Storage Temperature |
-40℃ to 80℃ |
|
Dimensions |
Φ14x140mm (PCB Inside) |
| Life Span | 8,000Hrs |
Features
1. Compact size, and long lifetime.
2. high precision and stability.
3. High-quality optical glass lens, good quality beam.
4. Easy mounting, convenient adjustment.
5. Conform to ROHS, FDA, IEC, and SGS standards.
6. Using original Laser Diodes from Arima, Osram, Nicha, and branded chips.
7. Provide One year warranty and customized solutions.
Applications
The 650 20mW red line laser diode module generators are used for:
● Industrial Applications: alignment, marking, leveling, and positioning in manufacturing and assembly.
● Construction and Surveying: leveling tools, measurement systems, and layout marking.
● Medical Devices: surgical alignment and precision targeting in diagnostic equipment.
● Scientific Research: optical experiments, laser scanning, and spectroscopy.
● Consumer Electronics: integrated into laser displays, projectors, and educational tools.
● Security and Military: target indication, rangefinding, and night vision systems.
Trade Terms
1) Payment: T/T, PayPal, Western Union, etc.
2) Shipment: FedEx, DHL, UPS etc.
3) Delivery Time: 5 - 20 days.
4) Shipment Terms: FOB Xi'an China
Why Choose Us
A. Over 20 years of laser experience.
B. Large-scaled facility 4,500sq.m2 and over 180 professional staff.
C. Use original LDs from Arima, Osram, Nicha, and so on to guarantee reliability.
D. Strictly following ISO9001:2008 quality system.
E. Product conforms to FDA, IEC, and GB standards.
F. Strong design and production capabilities, partners of famous brands.
