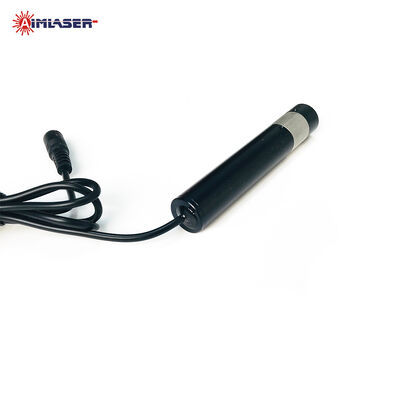

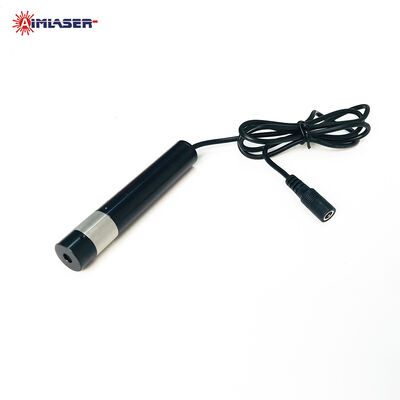

635nm 120mW Focusable Red Line Laser Module For Construction Alignment Marking And Leveling
Contact me for free samples and coupons.
WhatsApp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Product Name | Red Line Laser Module | Laser Display | Visible Red Thickness Line |
|---|---|---|---|
| Laser Mode | CW | Beam Size | ≤0.3mm@5m |
| Case Material | Black Anodized Aluminum (Insulation) | Dimensions | 14x140mm |
| Life Span | 8,000Hrs | Warranty | 1 Year |
| Highlight | 120mW Red Line Laser Module,635nm Red Line Laser Module,120mW Focusable Laser Module |
||
Product Description
635nm 120mW 0.3mm Thickness Focusable Red Line Laser Module for Alignment Marking and Leveling Laser Projector
Product Description
AIMLASER provides customized laser diode modules with dot, line, cross, and 360° circle projections in blue, green, and red light. Wavelengths include 405 nm, 450 nm, 520 nm, 635 nm, 650 nm, 780 nm, 850 nm, 980 nm, and 1064 nm, with power options ranging from 1 mW to 200 mW. Line widths, working distances, and dimensions can be customized to meet specific needs. The modules support input voltages of 3V to 24V DC or 110V AC and come with a one-year warranty and tailored solutions.
Our laser modules are compact, highly reliable, stable, and provide high-quality beam performance. Equipped with optical glass lenses and laser diodes from Arima, Osram, and Nichia, they comply with ROHS, FDA, IEC, and SGS standards. They are also easy to install and adjust.
These laser projectors solve challenges in straightness, flatness, parallelism, squareness, and leveling by projecting clear red or green lines or 360° patterns. They are ideal for industrial and construction applications such as alignment, marking, leveling, positioning, surveying, scanning, and measurement.
The AM635D120G2 red-line laser generator produces a sharp and highly visible line at a specific fan angle and distance. With a maximum output of 120 mW at 635 nm, it is perfect for precision industrial tasks.
Specification
|
ITEMS |
SPECIFICATIONS |
|
Product Name |
Red Line Laser Diode Module |
|
Wavelength |
635nm |
| Output Power | 120mW |
|
Laser Mode |
CW or Pulse (TTL modulation, Analog Modulation, and Digital Modulation) |
|
Fan Angle |
45° |
|
Line Width |
≤0.3mm@5m |
| Line Accuracy | ＜1mm@5m |
| DOF | 1m |
|
Lens |
Optical Glass Lens |
|
Operating Current |
<90mA |
|
Operating Voltage |
3-5V or 12V or 24V DC |
|
CDRH Class |
Class IIIb |
|
Circuit control |
Auto Constant Current (ACC) |
|
Circuit Protection |
Static, Surge, and Reverse Polarity Protected |
|
Construction Material |
Black Anodized Aluminum |
|
Working Temperature |
-10℃ to 50℃ |
|
Storage Temperature |
-40℃ to 80℃ |
|
Dimensions |
Φ14x140mm (PCB Inside) |
| Life Span | 8,000Hrs |
Features
1. Compact size, and long lifetime.
2. high precision and stability.
3. High-quality optical glass lens, good quality beam.
4. Easy mounting, convenient adjustment.
5. Conform to ROHS, FDA, IEC, and SGS standards.
6. Using original Laser Diodes from Arima, Osram, Nicha, and branded chips.
7. Provide One year warranty and customized solutions.
Applications
The 635 120mW focusable red line laser diode module pointers are used for:
● Industrial Alignment: Ensuring precise alignment in manufacturing and assembly processes.
● Construction Leveling: Projecting straight lines for leveling tasks in construction and renovation.
● Positioning and Marking: Accurate positioning for drilling, cutting, and marking applications.
● Surveying: Providing reference lines for land surveying and measurements.
● Scanning Systems: Integration in scanners for object detection and mapping.
● Measurement Tools: Applications requiring linear references for dimensional measurements.
● Quality Control: Visual aids for inspecting product straightness or alignment.
Trade Terms
1) Payment: T/T, PayPal, Western Union, etc.
2) Shipment: FedEx, DHL, UPS etc.
3) Delivery Time: 5 - 20 days.
4) Shipment Terms: FOB Xi'an China
Why Choose Us
A. Over 20 years of laser experience.
B. Large-scaled facility 4,500sq.m2 and over 180 professional staff.
C. Use original LDs from Arima, Osram, Nicha, and so on to guarantee reliability.
D. Strictly following ISO9001:2008 quality system.
E. Product conforms to FDA, IEC, and GB standards.
F. Strong design and production capabilities, partners of famous brands.
