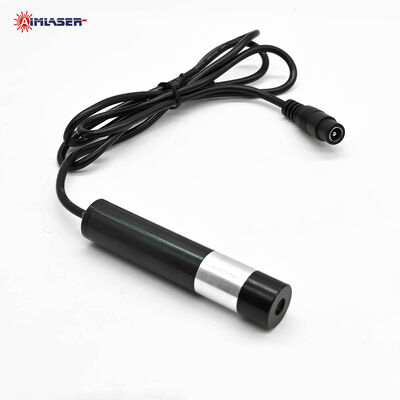

635nm 50mW Horizontal Line Diode Laser Modules For Wall And Ceilings Alignment Placement
Contact me for free samples and coupons.
WhatsApp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Product Name | Red Line Laser Module | Laser Display | Visible Red Strait Line |
|---|---|---|---|
| Laser Mode | CW | Beam Size | ≤3mm@10m |
| Case Material | Black Anodized Aluminum (Insulation) | Dimensions | 14x140mm |
| Life Span | 8,000Hrs | Warranty | 1 Year |
| Highlight | 50mW Diode Laser Modules,635nm Diode Laser Modules |
||
Product Description
635nm 30mW Horizontal Line Laser Diode Module for Wall and Ceilings Alignment and Placement
Product Description
AIMLASER provides customized laser diode modules in blue, green, and red, offering dot, cross, line, and 360° circle projection. Available wavelengths include 405 nm, 450 nm, 520 nm, 635 nm, 650 nm, 780 nm, 850 nm, 980 nm, and 1064 nm, with power options ranging from 1 mW to 200 mW. We customize line widths, working distances, and dimensions to meet specific needs. The modules support input voltages of 3V to 24V DC or 110V AC and come with a one-year warranty and tailored solutions.
Our laser modules are compact, reliable, and deliver stable, high-quality beams. Equipped with premium optical glass lenses and laser diodes from Arima, Osram, and Nichia, they meet ROHS, FDA, IEC, and SGS standards. They are also easy to install and adjust, ensuring user-friendly operation.
These laser projectors address straightness, flatness, parallelism, squareness, and leveling challenges by projecting clear red or green lines or 360° patterns. They are ideal for industrial and construction alignment, marking, leveling, positioning, surveying, scanning, and measurement applications.
The AM635D120G2 red-line laser generator produces a sharp, highly visible line at a specific fan angle and distance. With a maximum output of 120 mW at 635 nm, it is perfect for precision industrial tasks.
Specification
|
ITEMS |
SPECIFICATIONS |
|
Product Name |
Red Line Laser Diode Module |
|
Wavelength |
635nm |
| Output Power | 50mW |
|
Laser Mode |
CW |
|
Fan Angle |
60° |
|
Line Width |
≤3mm@10m |
| Line Accuracy | ＜1mm@5m |
| DOF | 1m |
|
Lens |
Optical Glass Lens |
|
Operating Current |
<80mA |
|
Operating Voltage |
3-5V or 12V or 24V DC |
|
CDRH Class |
Class IIIb |
|
Circuit control |
Auto Constant Current (ACC) |
|
Circuit Protection |
Static, Surge, and Reverse Polarity Protected |
|
Construction Material |
Black Anodized Aluminum |
|
Working Temperature |
-10℃ to 50℃ |
|
Storage Temperature |
-40℃ to 80℃ |
|
Dimensions |
Φ12x60mm (PCB Inside) |
| Life Span | 8,000Hrs |
Features
1. Compact size, and long lifetime.
2. high precision and stability.
3. High-quality optical glass lens, good quality beam.
4. Easy mounting, convenient adjustment.
5. Conform to ROHS, FDA, IEC, and SGS standards.
6. Using original Laser Diodes from Arima, Osram, Nicha, and branded chips.
7. Provide One year warranty and customized solutions.
Applications
The 635 50mW red line laser diode module pointers are used for:
● Industrial Applications: alignment, marking, leveling, and positioning in manufacturing and assembly.
● Construction and Surveying: leveling tools, measurement systems, and layout marking.
● Medical Devices: surgical alignment and precision targeting in diagnostic equipment.
● Scientific Research: optical experiments, laser scanning, and spectroscopy.
● Consumer Electronics: integrated into laser displays, projectors, and educational tools.
● Security and Military: target indication, rangefinding, and night vision systems.
Trade Terms
1) Payment: T/T, PayPal, Western Union, etc.
2) Shipment: FedEx, DHL, UPS etc.
3) Delivery Time: 5 - 20 days.
4) Shipment Terms: FOB Xi'an China
Why Choose Us
A. Over 20 years of laser experience.
B. Large-scaled facility 4,500sq.m2 and over 180 professional staff.
C. Use original LDs from Arima, Osram, Nicha, and so on to guarantee reliability.
D. Strictly following ISO9001:2008 quality system.
E. Product conforms to FDA, IEC, and GB standards.
F. Strong design and production capabilities, partners of famous brands.
FAQ
Q1: Do you support the required solutions?
A: Yes, we offer customization options for wavelength, output power, line width, working voltage, housing dimensions, etc.
Q2: Do you provide power adapters and mounts for line laser modules?
A: Yes, we supply both power adapters and brackets.
