650nm 20mW Machine Vision Laser Diode Module Laser Line Generator For 3D Smart Carmera

Place of Origin China
Brand Name AIMLASER
Certification FDA, IEC
Model Number AM635U50G2
Minimum Order Quantity 1
Price USD $20-100
Packaging Details Anti-static bag, Carton
Delivery Time 10-20 days
Payment Terms T/T, Western Union, PayPal
Supply Ability 1000pcs/month

Contact me for free samples and coupons.

WhatsApp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Product Name Powell Lens Uniform Line Laser Module Wavelength 635nm
Line Width ≤50um@150mm Fan Angle 110°
Operating Voltage 3-24V DC Output Power ≤50.0mW
Case Material Insulation Aluminum Black Anodized Dimensions 12x45mm
Driver Mode CW, Analog Modulation, Digital Modulation, Computer Control Optics Powell Lens
Highlight

650nm Machine Vision Laser

,

20mW Machine Vision Laser

,

Diode Laser Line Generator

Leave a Message
Product Description

650nm 20mW 30° High-Uniformity Laser Line Generator Even Fine Line Laser Diode Mode with Powell Lens for 3D Smart Carmera



Product Description



AIMLASER provides customized uniform line laser diode modules equipped with Powell lenses for consistent laser intensity and even light distribution. Customization options include wavelengths ranging from 405nm to 850nm, fan angles from 10° to 90°, and input voltages between 3V and 12V DC. These modules feature a compact design, narrow line width (as thin as 10µm), and stable, reliable performance.



These modules are widely used in machine vision systems, industrial robotics, 3D scanning, medical instruments, and surface defect detection, projecting thin collimated red laser lines for high-precision applications. The 650nm 20mW red line laser module also features adjustable focus, providing added flexibility for various tasks.



With high stability, narrow line width, uniform light distribution, and adjustment options, these laser modules deliver consistent and precise results in industrial automation, quality inspection, and scientific research.

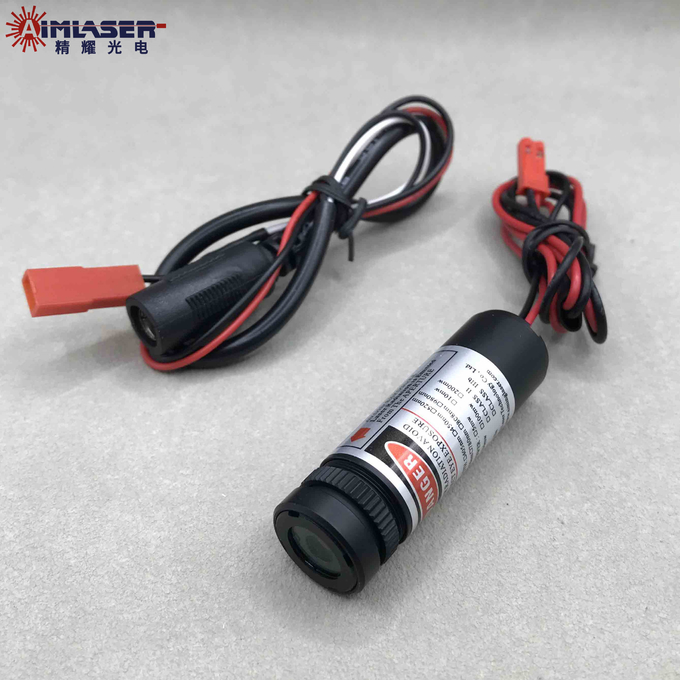

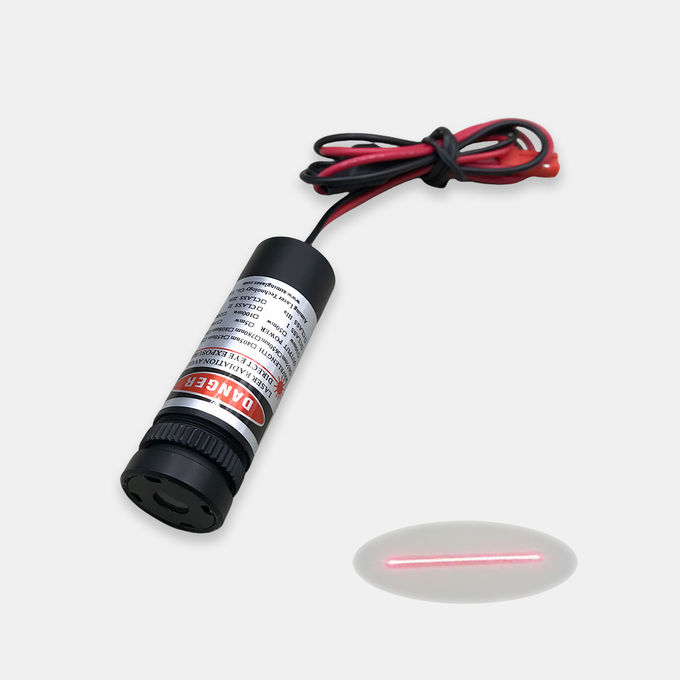

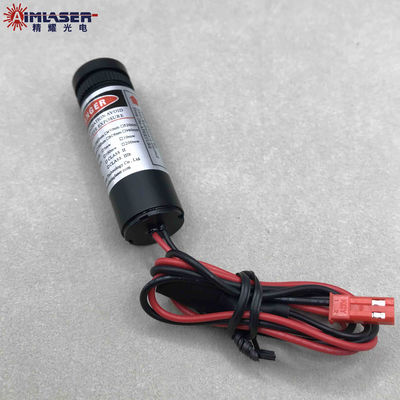

650nm 20mW 30° High-Uniformity Laser Line Generator Even Fine Line Laser Diode Mode with Powell Lens for 3D Smart Carmera650nm 20mW 30° High-Uniformity Laser Line Generator Even Fine Line Laser Diode Mode with Powell Lens for 3D Smart Carmera

Specifications



ITEMS

PARAMENTERS

Model Number

Powell Lens Uniform Distribution Line Laser Diode Module

Wavelength

650nm

Output Power

≤20.0mW

Output Aperture Φ3.0mm

Line Width

≤50um@150mm

Fan Angle

110°

Input Voltage 3~24.0VDC
Working Current <70mA
Driver Mode CW, TTL, Analog Modulation, Digital Modulation
Dimensions Φ12x45mm
Divergence 0.3mrad

CDRH Class

Class IIIb

Circuit control

Auto Constanct Current (ACC)

Circuit Protection

Static, Surge, and Reverse Polarity Protected

Working Temperature

-10℃ to 50℃

Storage Temperature

-40℃ to 80℃

Optics

Powell Lens

Material

Aluminum Black Anodized (Insulation)

Life Time

10,000Hrs



Features



1. Compact size, narrow line width, focus adjustable.

2. High stability and reliability, long lifetime.

3. Using high quality powell lens.

4. Using original laser diodes from Arima, Osram, Nicha and branded chips.

5. Conform to ROHS, FDA, IEC, SGS standards.

6. Provide one-year warranty and customized solutions.



Applications



The 650nm 20mW powell lens uniform distribution red line laser diode modules applications:



● Machine Vision System

● 3D Scanning System

● Laser Profilometer

● Laser Measuring Profilometer

● Laser Contour Scanner

● Laser Scribe Positioning Machines

● Machine Visual Products

● Industrial Visual Measurement System

● Machine Vision Cameras

● Industrial Robot Visual Guidance System

● Industrial Smart Cameras ● Automatic Equipment Visual Positioning System



Trade Terms



1) Payment: T/T, PayPal, Western Union, etc.

2) Shipment: FedEx, DHL, UPS etc.

3) Delivery Time: 5 - 20 days.

4) Shipment Terms: FOB Xi'an China



Why Choose Us



A. Over 20 years laser experience.

B. Large-scaled facility 4,500 m2 and over 180 professional staffs.

C. Use original LDs from Arima, Osram, Nicha and so on to guarantee reliability.

D. Strictly following ISO9001:2008 quality system.

E. Product conforms to FDA, IEC and GB standard.

F. Strong design and production capabilities, partners of famous brands.
