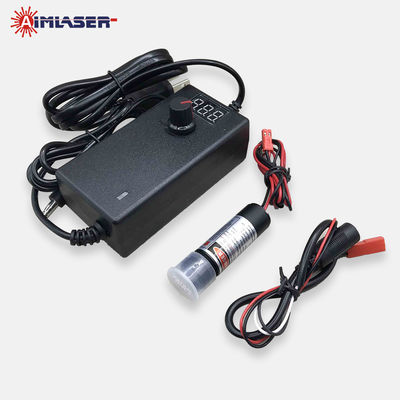

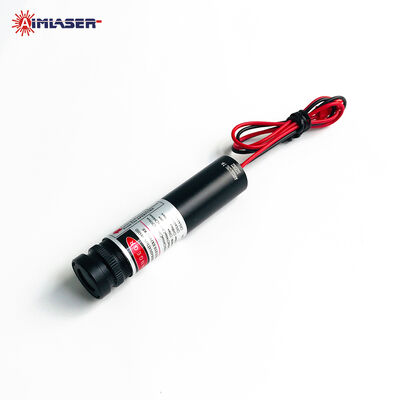

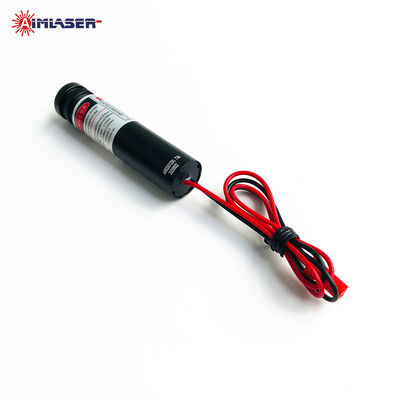

520nm 50mW Focus Adjustable Powell Lens Green Uniform Line Laser Module for Machine Vision Inspection
Product Details
| Product Name | Powell Lens Uniform Green Line Laser Module | Wavelength | 520nm |
|---|---|---|---|
| Output Power | 50.0mW | Line Width | ≤50um@150mm |
| Fan Angle | 30° | Operating Voltage | 3-24V DC |
| Case Material | Aluminum Black Anodized (Insulation) | Dimensions | 16x70mm |
| Life Span | 10,000Hrs | Warranty | 1 Year |
| Highlight | Machine Vision Laser 520nm,Machine Vision Laser 30mW |
||
Product Description
520nm 50mW Focus Adjustable Powell Lens Uniform Line Laser Module for Machine Vision Inspection
Product Description
AIMLASER provides customized Uniform Line Laser Diode Modules, which have a well-distributed laser beam and energy. Featuring high-quality Powell Lens, these modules offer a narrow linewidth, high stability and reliability, long lifetime and performance. The well-distributed line laser is the ideal laser source in Laser Profilometer, 3D Smart Camera, Surface Defect Detections, Machine Vision System, Industrial Robotics and 360° Pipeline Inspections etc.
The AM520U50G1 is a green line laser module subassembly with a collimated beam. The maximum laser output power is 50mW at 520nm, with uniform linewidth distribution. They are customizable to meet your specific specifications and requirements. The thinnest line can be 10um; fan angle is optional from 5°to 130° and wavelength ranges from 405nm to 850nm. The input voltage is also varied from 3V to 24V DC.
Specifications
Features
- Compact size, narrow line width, and adjustable focus.
- High stability and reliability with long service lifetime.
- Equipped with a high-quality Powell lens for superior beam shaping performance.
- Utilizes original laser diodes from Arima Lasers, Osram, and Nichia, ensuring consistent quality and performance.
- Highly uniform laser line intensity distribution, providing excellent brightness consistency across the entire line.
- Customizable line width, fan angle, and output power to meet different application requirements.
- Compliant with RoHS, FDA, IEC, and SGS standards.
- One-year warranty and flexible customization services available.
Applications
The 520nm 50mW Powell Lens Uniform Line Laser Diode Modules are used in:
|
● 3D Vision System |
● Laser Scanning System |
|
● Laser Profilometer |
● Laser Measuring Profilometer |
|
● Laser Contour Scanner |
● Laser Scribe Positioning Machines |
|
● Machine Visual Products |
● Industrial Visual Measurement System |
|
● Machine Vision Cameras |
● Industrial Robot Visual Guidance System |
| ● Industrial Smart Cameras | ● Auto Equipment Visual Positioning System |
Payment & Shipment
Payment: T/T, PayPal, etc.
Lead time: 5-10 days.
Shipping: FedEx, DHL, UPS.
Warranty: 1 year.
FAQ
Q1: How can I ensure the products have no quality issues?
A: We have an ISO 9001 certified factory, and our products are certified by the FDA, IEC, and GB. All products undergo internal testing before shipping and come with a one-year warranty. We respond proactively to any quality issues.
Q2: What can be customized? Do you support required solutions?
A: Yes, we can customize wavelength, output power, beam size, driver mode, working voltage and housing dimensions and more according to your requirements.
Q3: Do you have other wavelength Powell Lens Uniform Line Laser Modules available?
A: Yes, we can customize 405nm, 450nm, 520nm, 635nm, 650nm, 660nm, 780nm, 808nm, 830nm, 850nm, purple, violet, blue, green, red, infrared uniform line lasers.
Q4: Do you have a focus-adjustable uniformly distributed laser module?
A: Line thickness fixed and focus Adjustable uniform line laser diode modules are available.
Q4: What are the driver modes customized?
A: CW or Pulse (by TTL/PWM/Analogue Modulation).
Why Choose Us
A. Over 20 years laser experience.
B. Large-scaled facility 4,500sq.m2 and over 180 professional staffs.
C. Use original LDs from Arima, Osram, Nicha and so on to guarantee reliability.
D. Strictly following ISO9001:2008 quality system.
E. Product conforms to FDA, IEC and GB standards.
F. Strong design and production capabilities, partners of famous brands.
